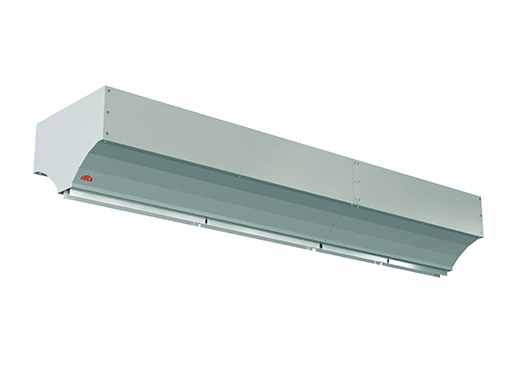

AGI6000 Industrial Air Curtains

Robust air curtain for large industrial doors

Stable and Simple
Great Energy Savings
High Performance
Recommended installation height 6 m
Recommended installation width 8 m (two units, one on each side)

Lengthmeter(m)

Installation type

Heating

X-AGIH6012A Air curtain#11448

Perfect Choice for Large Doors

This sturdy air curtain is available in four different lengths of up to three metres, which makes it easy to create a continuous air curtain for large doors, both horizontally and vertically. In vertical installation two units can be put on top of each other.

Energy Saver

In many premises doors remain open for a significant part of the day, this results in huge losses of expensively heated or cooled air. With correctly installed air curtains great energy savings can be obtained.

Different Control Options

Possible to choose a simpler or more advanced level of control.

High Performance

Frico air curtains are developed and manufactured in Sweden. The air curtains are tested in one of the most modern and advanced air and sound laboratories in Europe which mean we can guarantee a high performance product.

AGI6000 is a robust air curtain intended for large doorways such as logistic centres, loading bays and warehouses. With its powerful fans and high enclosure classification it is specially suitable for industrial environments. Its recommended installation height is 6 m. The recommended installation width of AGI6000 is 8 m with air curtains on both sides of the opening.

The air curtain is available for horizontal or vertical installation and has a stable and simple design. It is available in four different lengths of up to 3 metres, which makes it easy to create a continuous air curtain for large doors. In vertical installation two units can be put on top of each other.

Different levels of control are available, from simple to more advanced.

Water heated units must be supplemented with a valve system. The valve system controls the water flow and activates maximum heat only when needed.

The recommended installation height varies depending on the relevant premises. The recommended installation width is with air curtains mounted on both sides of the opening.

Tech specs

Technical Data

Article name

X-AGIH6012A Air curtain

Article number

#11448

Default
Installation
Type of installation	Horizontal
Recommended installation height	6	m
Nominal data
Color casing	White aluminium
Color casing, RAL	RAL 9006
Enclosure class	IP54
Ambient working temperature (dry conditions)	-20 to 40	°C
Dimensions and weights
Length	1,200	mm
Height	485	mm
Depth	730	mm
Weight	51	kg
Air flow
Air flow	1,833	L/s
Sound data
Sound level	69	dB(A)
Sound power (LWA)	85	dB(A)
Motor/control supply
Control/motor supply	400	V
Phases, motor	3~
Control/motor current, 50 Hz	2	A
Input power (P1), motor 50Hz	880	W

Performance

Specification

Thermozone Air Curtain - AGIH/V-A An industrial range of high performance air curtains, designed for either horizontal or vertical mounting with air circulation in neutral, compact design. Housing The self-supporting compact unit construction is made of 1,5 mm galvanized sheet steel. The housing and galvanized sheet metal are AluZink plated. Visible surfaces with high-quality plastic powder coated (polyester powder coating, 60 um) in a subtle gray RAL9006. A robust and timeless design and with the M10 nuts, the air curtain is simple and easy to mount on the wall or ceiling or for vertical mounting using the floor frame. Fans Vibration-free individually driven, axial fans supplied with 3x400V, IP 44, with accessible motor protection and thermal contacts with class F insulation. The air outlet pressure chamber provides the internal air flow for reduced emissions of the engine noise and the formation of a highly effective flow profile. Inlet grille Integrated and located on top (horizontal) or on the side (vertical) of the unit. Outlet grille The streamlined outlet nozzle rod profiles in aluminum, are lockable between 0 ° and 30 ° (in and out) and creates and provides a guided, aerodynamic air flow and high shielding effectiveness. Electrical connection The main control connection is mounted and located on the top (horizontal mounting) or on the side (vertical mounting) of the device and easily accessible. Control system With the 5-step transformer (accessory), allowing and operating the installed air curtain with five different fan speed steps. Certification The air curtain must comply to EN and ISO standards valid for air curtains and tested and approved according ISO standards (ISO 27327-1), EN standards (EN 308; EN 12238; EN 60335) and AMCA standards (AMCA 210; AMCA220-5; AMCA 300).
