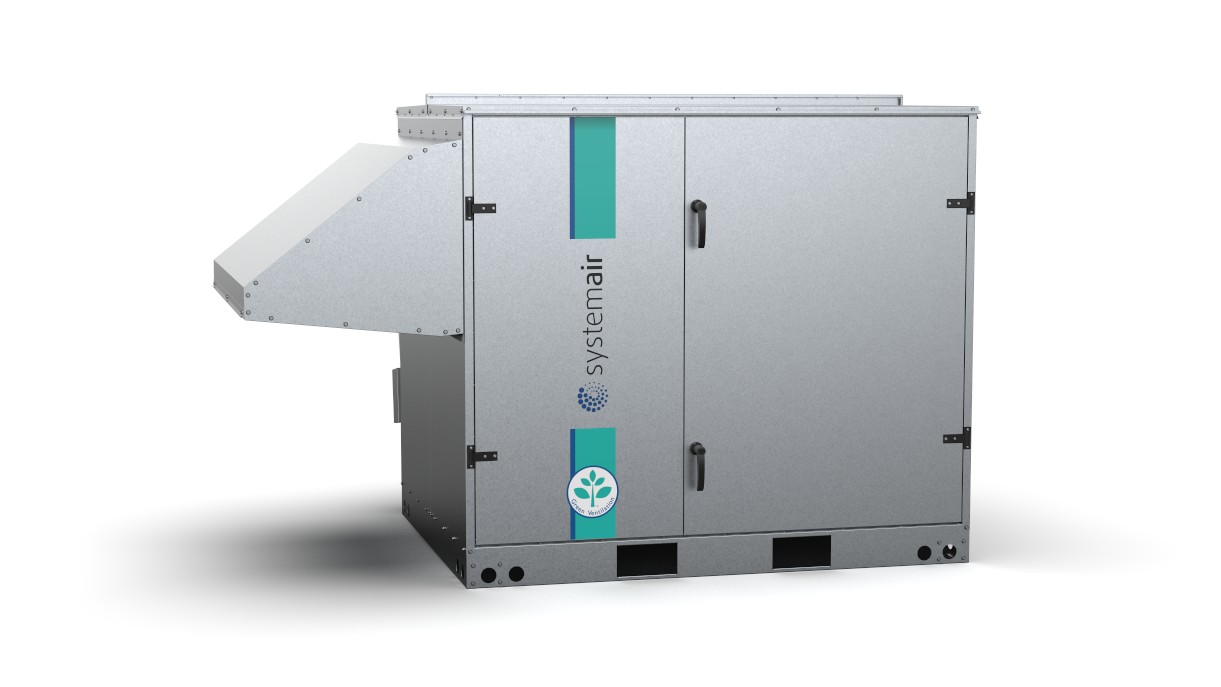

ERV-RTERV 1300RT-EC

ERV-RT Air Handling Units

ERV 1300RT-EC#40512
Frequency: 60 Hz

Energy Recovery Wheel

The 8” thick aluminum wheel with desiccant coating is reinforced with spokes, welded at the hub and perimeter to prevent any uneven run out during normal operation

Multiple Speed

ERV RT-EC units come with potentiometers to easily commission to the required airflows.

Series airflow up to 4,600 CFM

High efficiency unit

Total energy efficient wheel, low pressure drop, high performance EC motors result in low SFP

Silent unit

ERV RT-EC units are recommended for use in buildings with high requirements for sound levels

Easy service

All components are designed to facilitate maintenance, which ensure a long reliable operation

Warranty

The ERV RT-EC is backed by a 3 year limited warranty

Certifications

Loading...

Tech specs

Technical Data

Article name
ERV 1300RT-EC
Article number
#40512
240V 1~ 60Hz
Unit
Frequency60Hz
Voltage (nominal)240V
Phases1~
Input current7.8A
MCA7.9A
MOP15A
Speed regulationStepless
Temperature-13 to 104°F
Supply fan
Input power (P1), supply fan530W
Supply air filter
Filter class, supply airMERV13
Extract air filter
Filter class, extract airMERV8
Exchanger
Heat exchangerRotating
Return fan / Extract fan
Input power (P1), extract fan530W
Others
Fan controlCAV, air flow control; Stepless voltage control
Installation typeHorizontal
Dimensions and weights
Weight500.4lb
Certificates
CertificateAHRI (Rotary Heat Exchanger), UL

Performance

ERV-RT #40512, Performance

Dimensions

ERV-RT #40512, Dimensions
ModelABCDEFGHIJ
ERV 1300RT-EC
704750344177 1/423 1/224 3/424 1/4
ERV 3200RT-EC
9567685460101039 1/24538
ERV 4600RT-EC
9567685460101039 1/24538
1
Outdoor Air (OA)
2
Supply Air (SA)
3
Return Air (RA)
4
Exhaust Air (EA)
