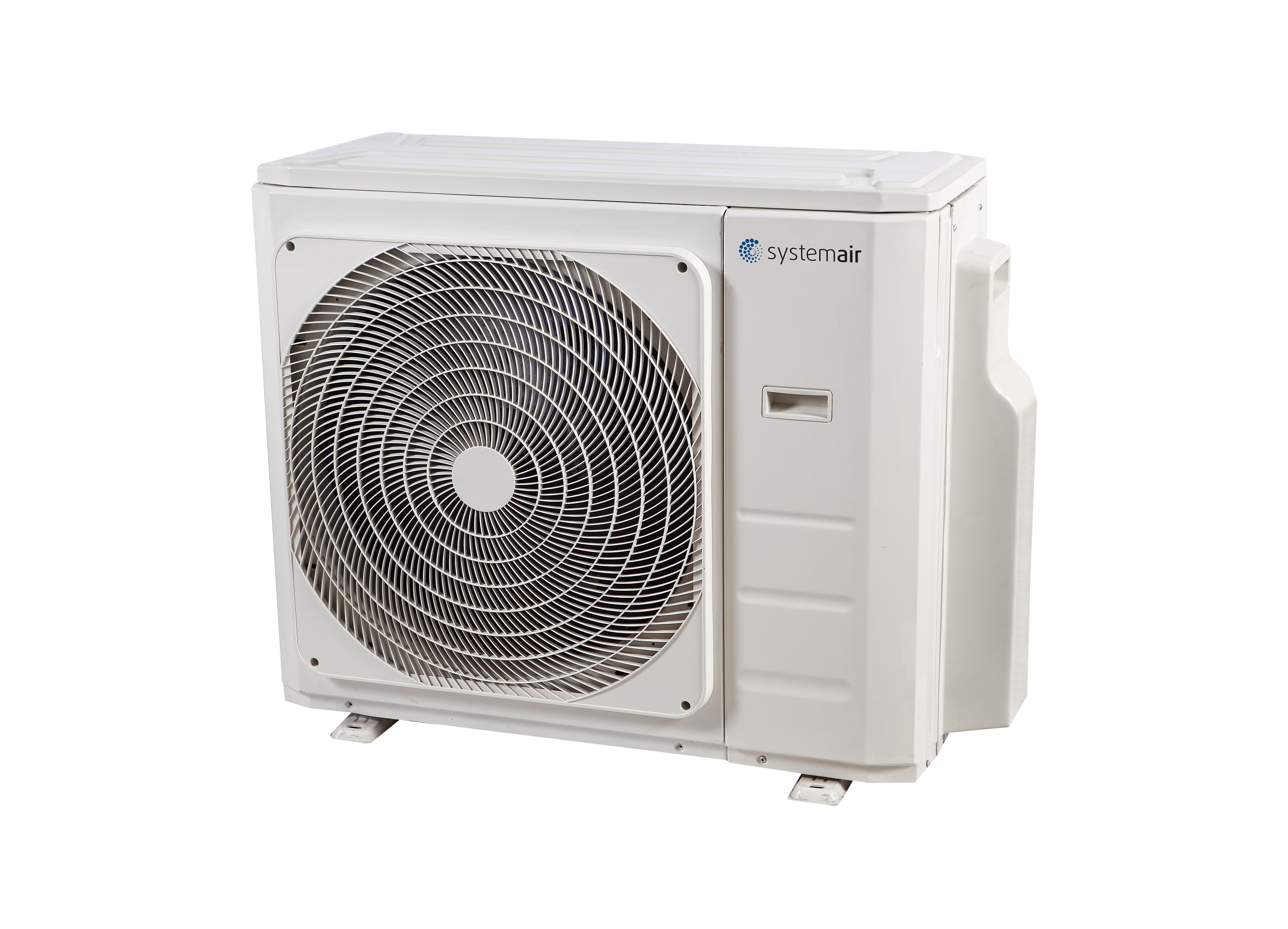

SYSPLIT MULTI Split Systems

5,3-12,3 • R32 Multi outdoor unit for air conditioning from 2 to 5 areas

DC inverter rotary compressor and DC fan motor
Cooling down to -15 °C, heating down to -20°C
Coil with golden-fin coating
Robust and reliable structure

Size

SYSPLIT MULTI4 36 EVO32 HP Q#315864

Frequency: 50 Hz

£ 2,794.82excl. tax

SYSPLIT MULTI is the ideal and flexible solution for providing quiet and efficient air conditioning from 2 to 5 areas from a single outdoor unit.
MULTI outdoor units are compatible with SYSPLIT WALL, CASSETTE, DUCT and FLOOR/CEILING indoor units.

SYSPLIT MULTI outdoor units have robust and reliable structure, cabinet made of zinc steel sheet and they are equipped with valve protection cover. The electric heating belt fitted on the base plate of the outdoor unit avoids accumulation of rain, snow and defrosted water.

High efficient operation, minimal vibration and low noise level are possible thanks to the rotary compressors which are also surrounded by a crankcase heater which ensures safe starting at very low outdoor temperature.

The unit is equipped with an Auto-restart function that, in the event of an electric power failure, allows it to restart with the same settings it had before the power loss.

‌

Certifications

Tech specs

Technical Data

Article name

SYSPLIT MULTI4 36 EVO32 HP Q

Article number

#315864

230V 1~ 50Hz
Performances
Cooling capacity	10.55	kW
Power consumption cooling	3,270	W
EER	3.23	W/W
Heating capacity	10.84	kW
Power consumption heating	2,760	W
COP	3.93	W/W
General data
Refrigerant type	R32
Frequency	50	Hz
Phases	1~
Voltage (nominal)	230	V
Dimension packing (WxHxD)	x x
Sound data
Sound power level	67	dB(A)
Dimensions and weights
Weight	68.8	kg
