AQUA Linear Diffusers
Linear slot diffuser ideal for swimming pool installations
Slim design
Low noise operation
Homogenous discharge pattern
Robust design
This product has been replaced by AQUA-H-1-8-500.
AQUA-1-8-500#93100
£ 55.84excl. tax
Modern and slim design
The sleek and contemporary design of the AQUA linear slot diffuser is designed for floor installation in air supply in ventilation systems.
Low noise operation
The AQUA linear slot diffuser is designed to combine low noise operation at sufficiently high air discharge velocity.
Robust design
The robust design allows for walking on the installed AQUA linear slot diffuser.

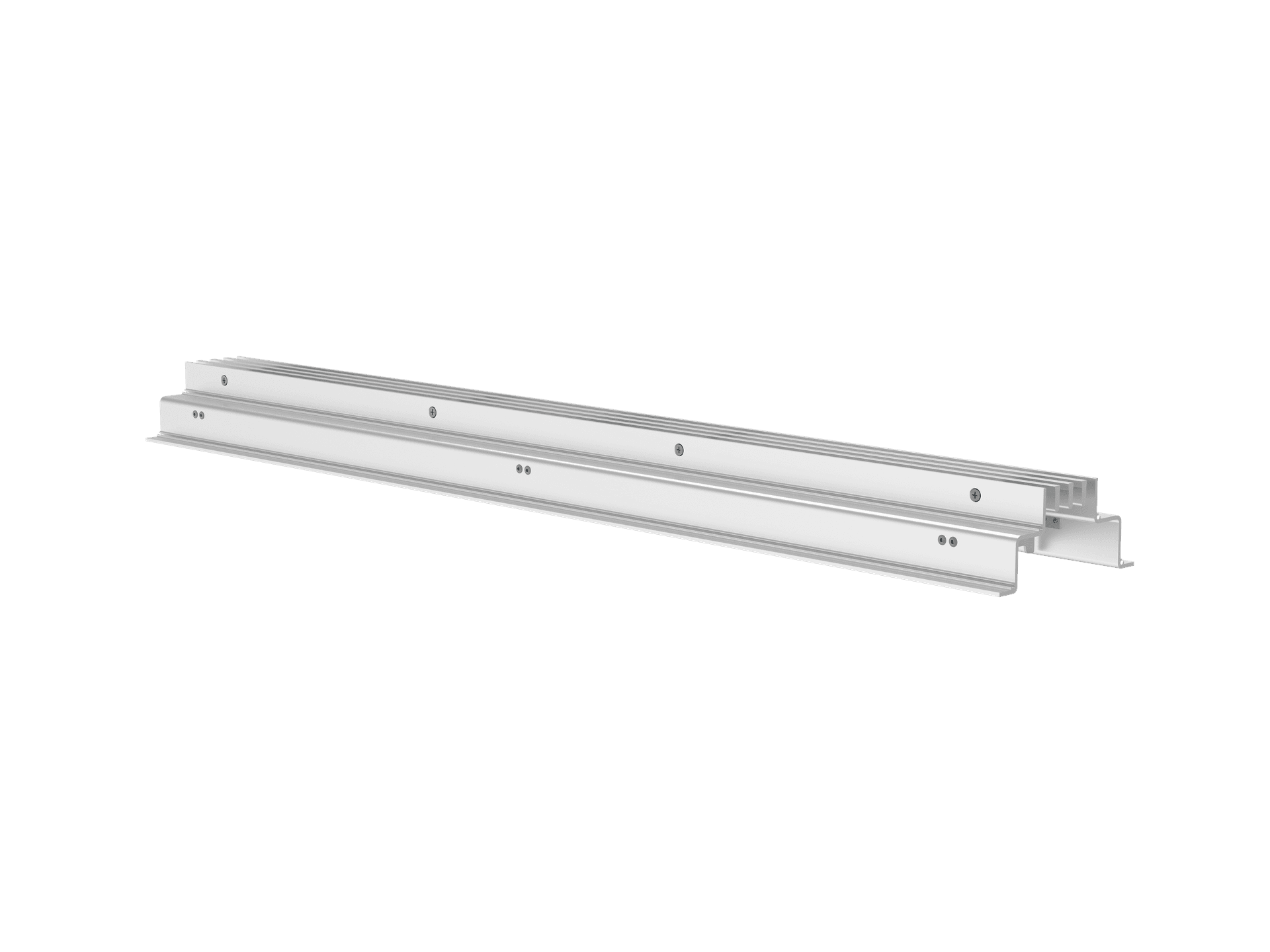

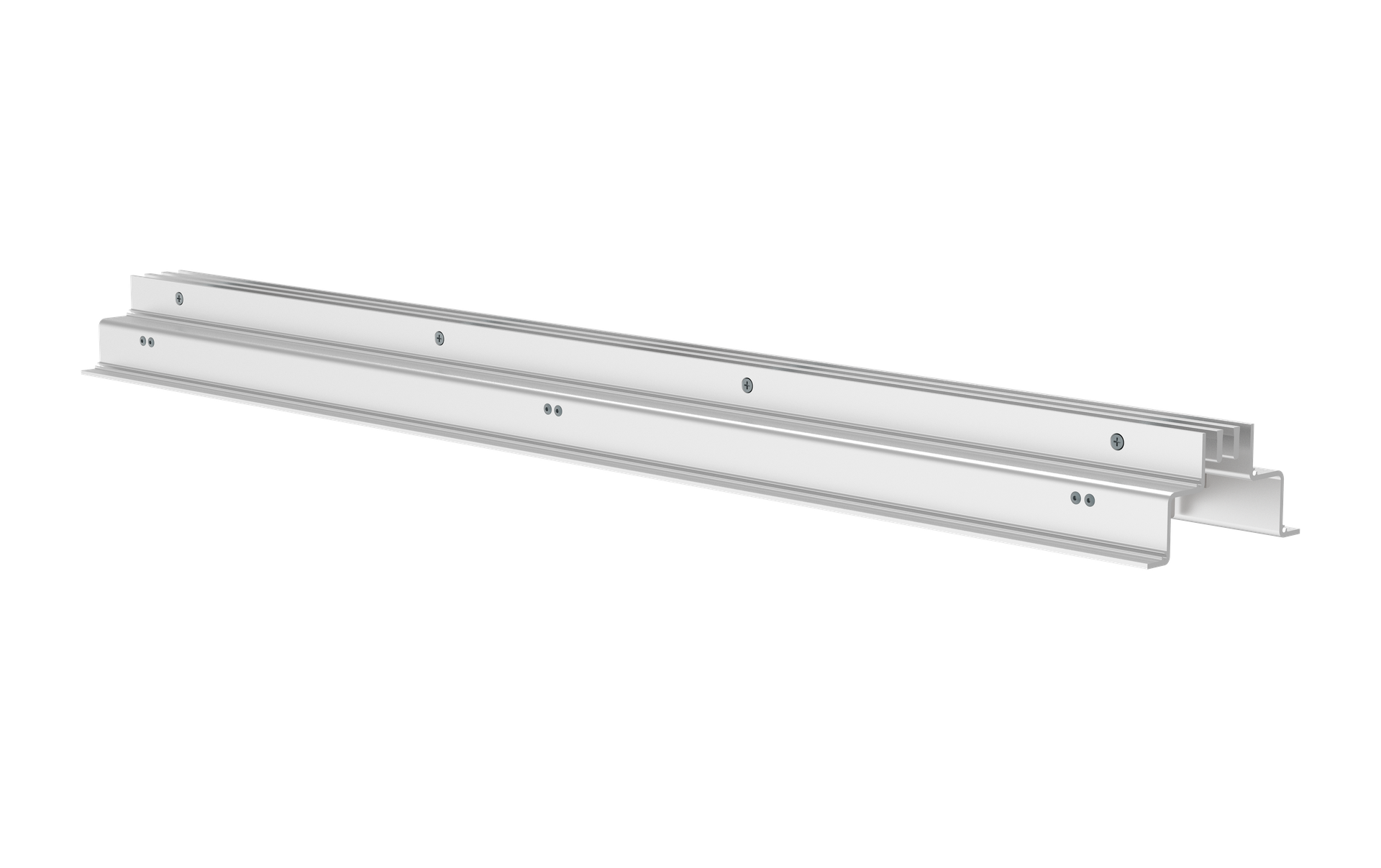

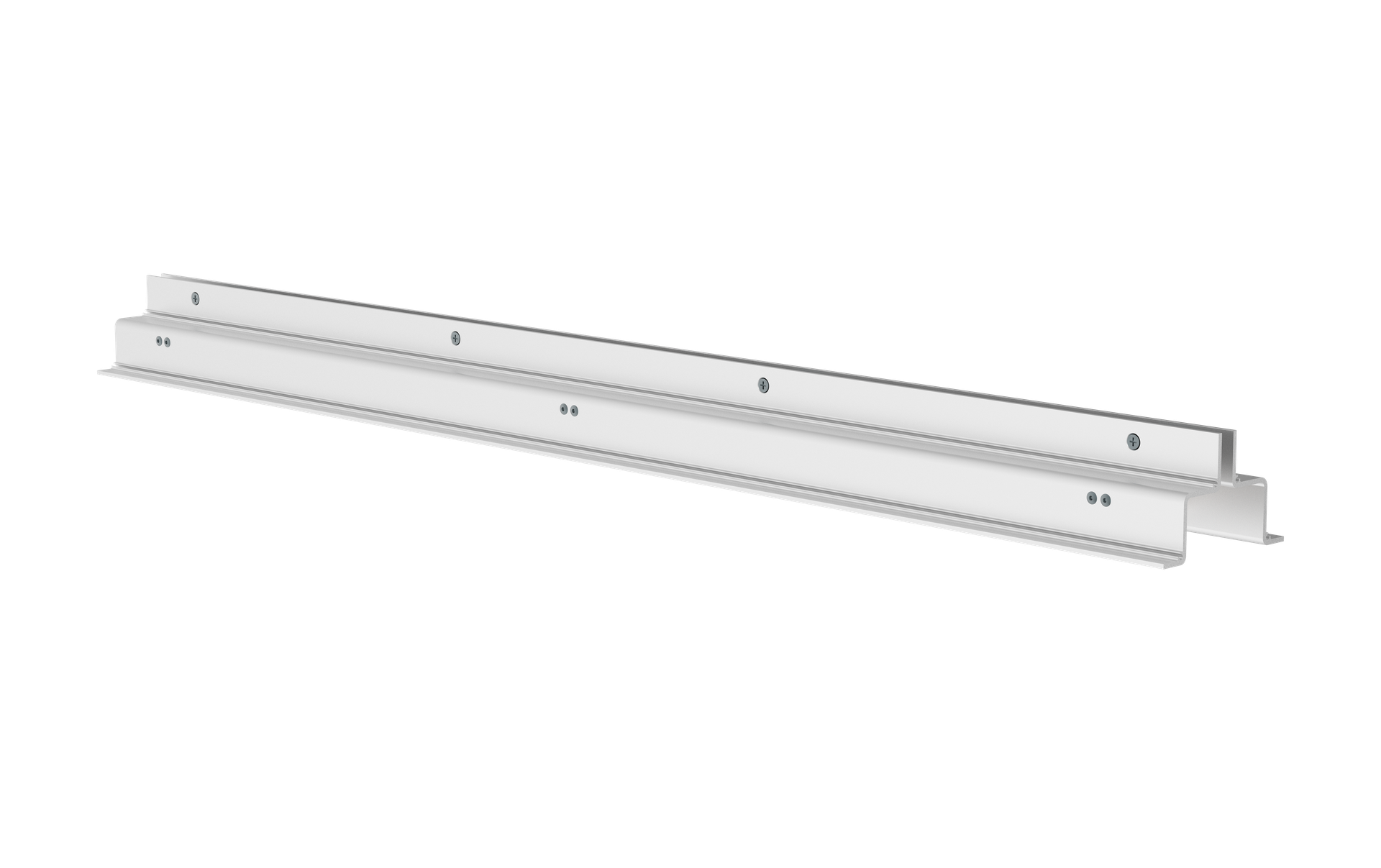

AQUA is a linear slot diffuser for installation on the floor in swimming pools and wet spaces with large windows or glass walls where it is intended for air supply. AQUA helps to protect the glass surfaces from water condensation and reduces the risk of problems with damp. Available in different sizes, it has a modern slim, compact and robust design that enables walking on the installed diffuser. The unit has a low noise operation at sufficiently high air discharge velocity. It has a homogenous discharge pattern on the whole diffuser length.
Single diffuser segments of various lengths are available. Segments with detachable slot dividing profiles and 90° angle segments are also available. Installation in multiple diffuser segment arrays is possible. Diffuser AQUA consists of a pressure equalizing console from two main aluminium profiles. The profiles are connected by stainless steel thread bolts. The bolts also fix the aluminium profiles that separate the air discharge slots.
Tech specs
Technical Data
Article name
AQUA-1-8-500
Article number
#93100
Default | |||
|---|---|---|---|
| Nominal data | |||
| Air flow(s) | 98; 119; 142 | m³/h | |
| Duct connection type | Rectangular | ||
| Pressure drop | 33; 48; 69 | Pa | |
| Sound power level | 24; 29; 34 | dB(A) | |
| Sound pressure level (10 m² room absorbtion area) | 20; 25; 30 | dB(A) | |
| Dimensions and weights | |||
| Weight | 1 | kg | |
Specification
Slot diffuser for floor installation in wet areas and around swimming pools. The diffuser introduces air near the window perimeter to protect them from condensation. It is made from aluminum profiles. The diffuser is available in lengths of 500, 1000, 1500, and 2000 mm with 1 to 5 slots and a slot width of 8, 10, or 12 mm. The plenum air inlet connections are positioned 500 mm apart to ensure a homogeneous air outlet pattern.The diffuser is accessible when installed.The individual slot diffusers can be connected to each other. A 1000 mm long element with removable deflectors are also available, as is a 90° corner-element.The diffuser can be installed with or without a plenum box.Various plenum boxes with large diffuser accessories are available on demand. - Aqua: Swimming Pool Slot Diffuser- Number of slots: 1- Slot width W: 8 mm- Length L: 500 mm- Plenum box: Not selected- End cap: Not selected- Connection pin: Not selected- Drainage nipple: Not selected- Drainage plug: Not selected- Leveling bridge: Not selected
