AQUA-CE Linear Diffusers

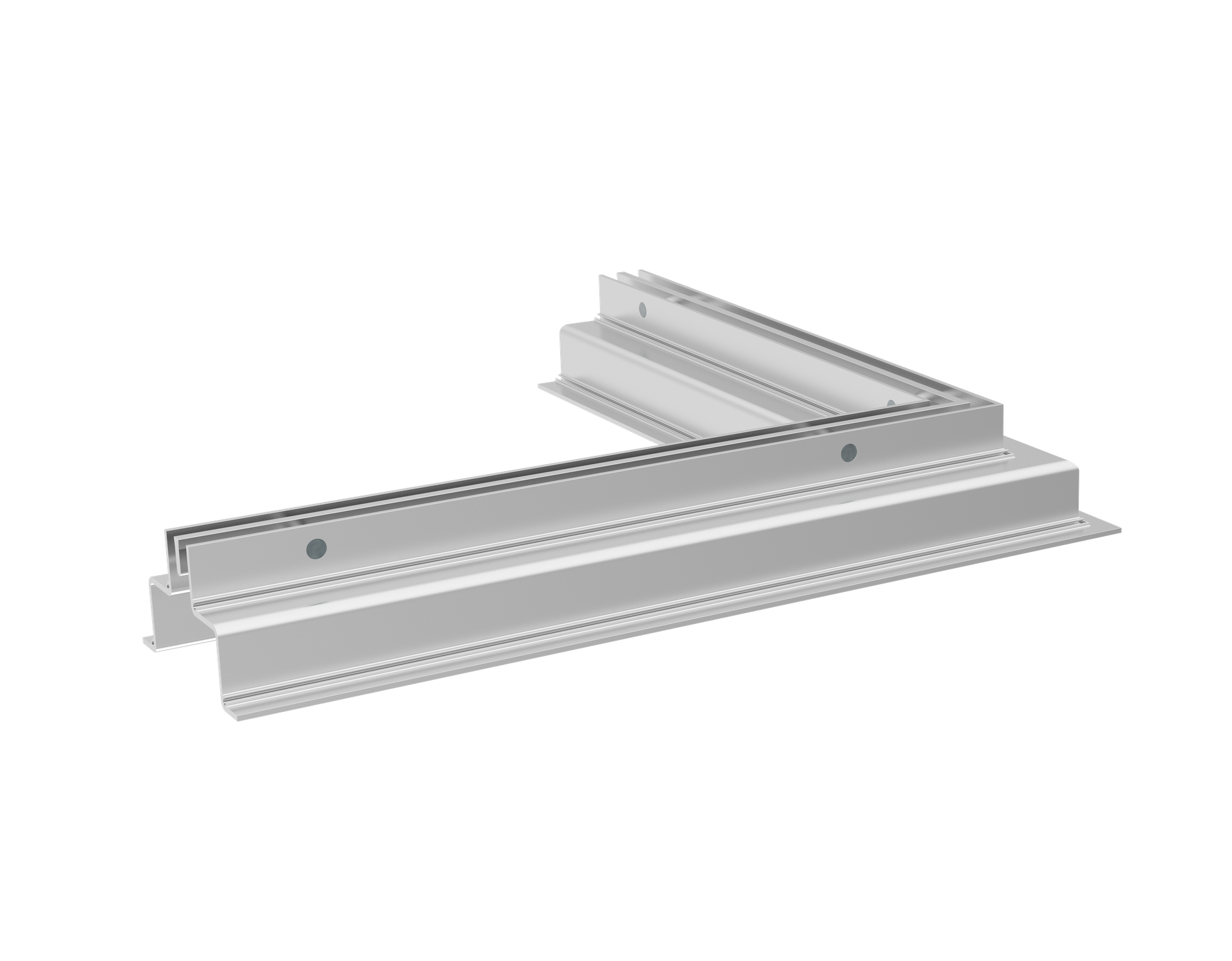

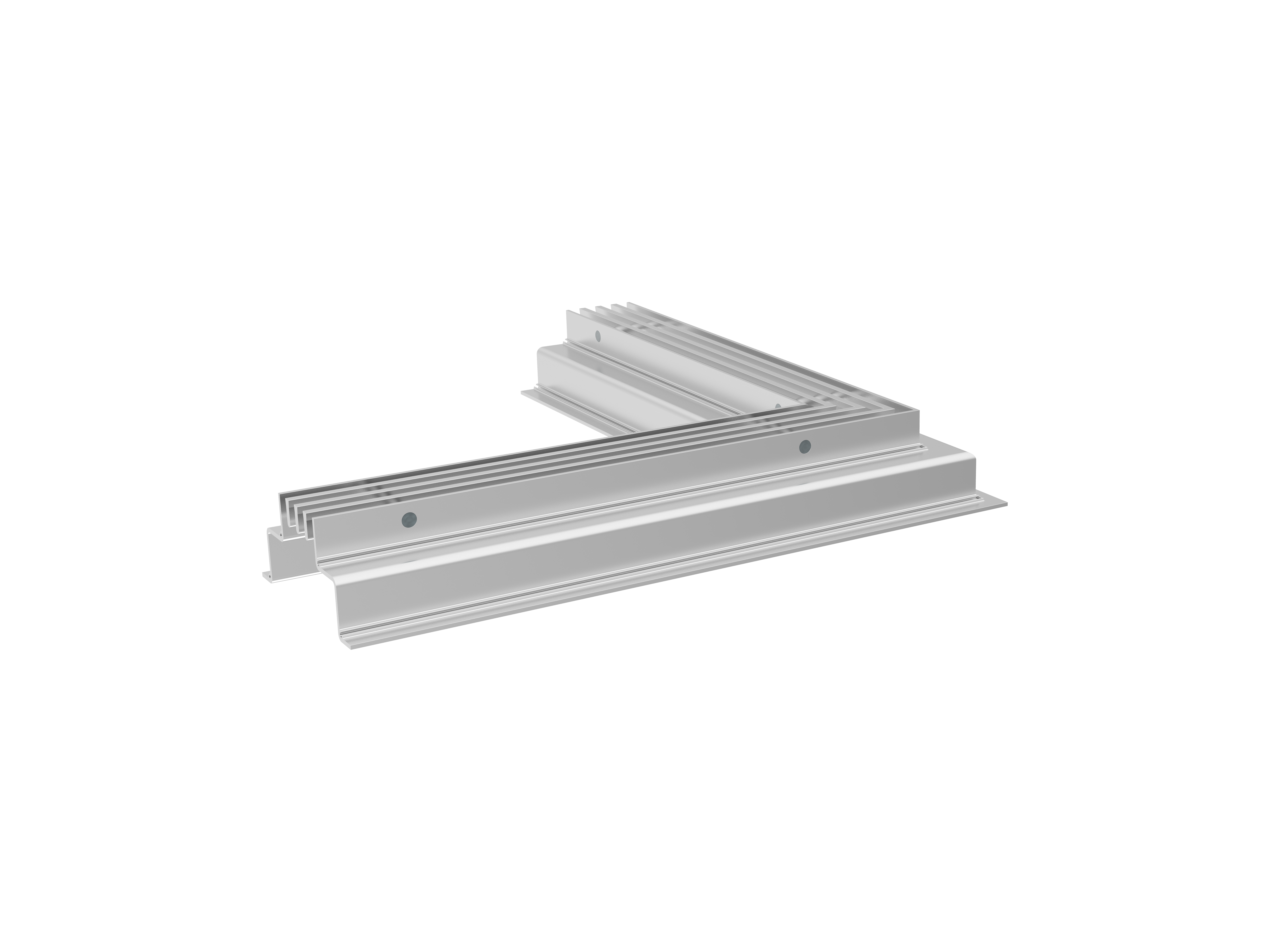

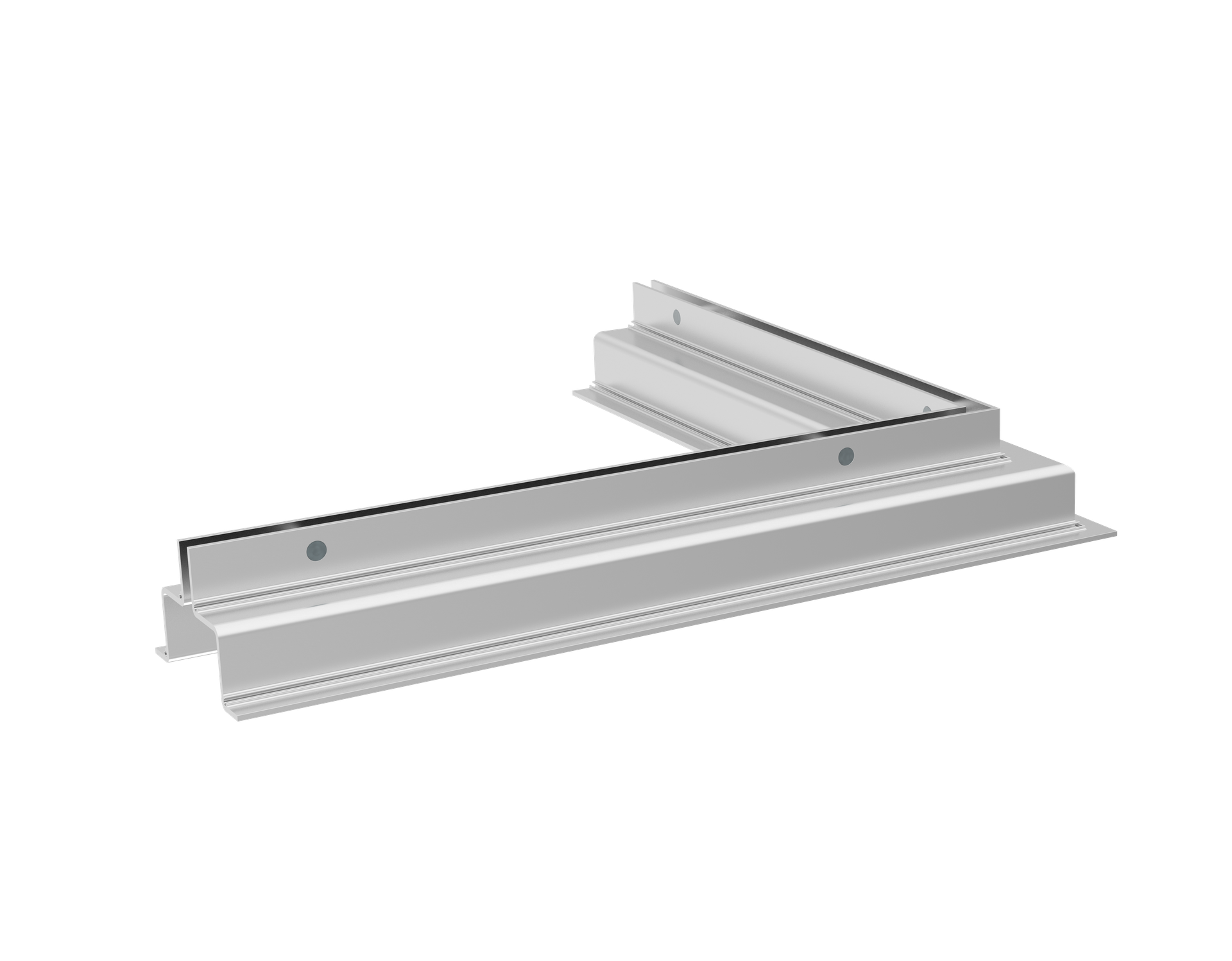

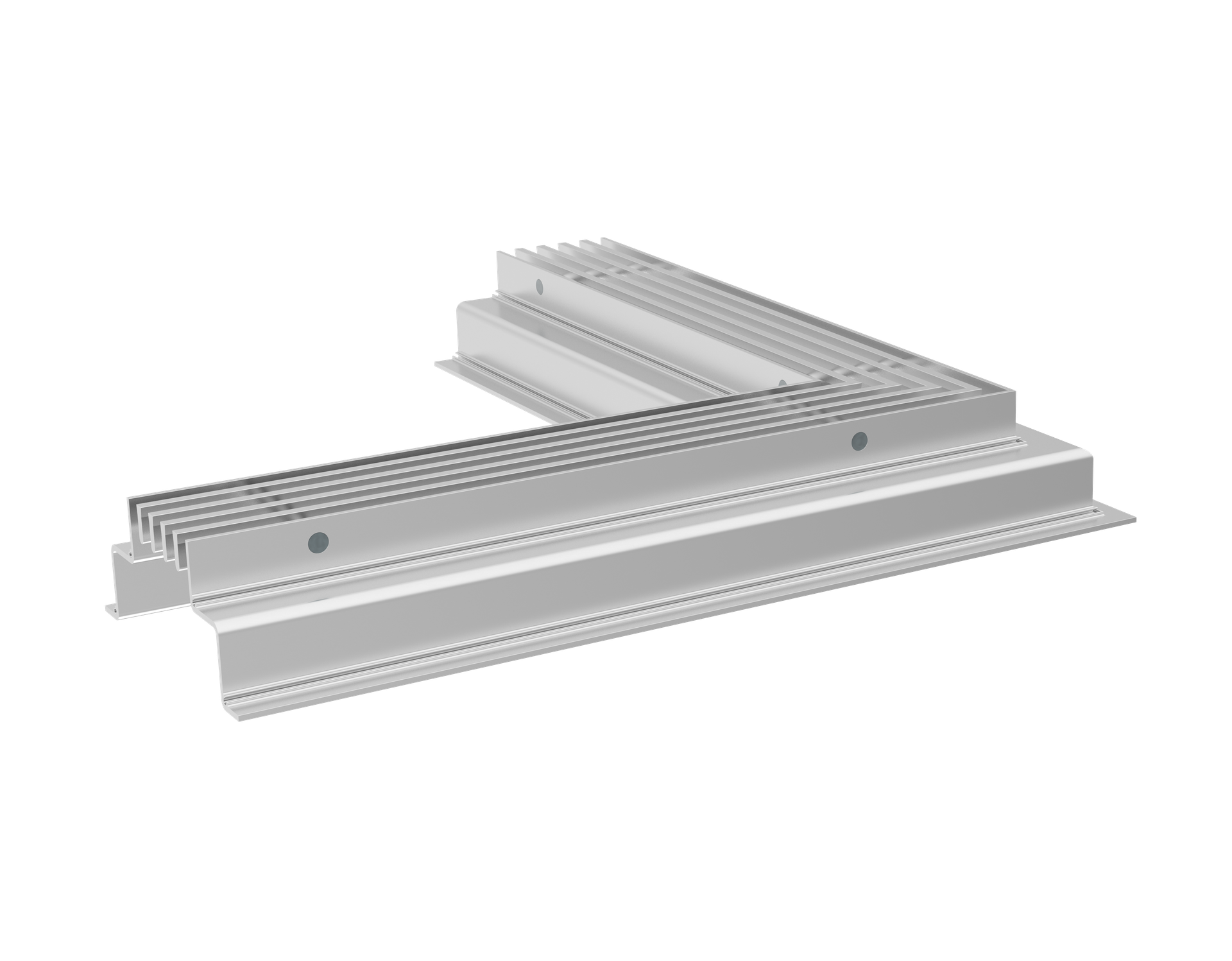

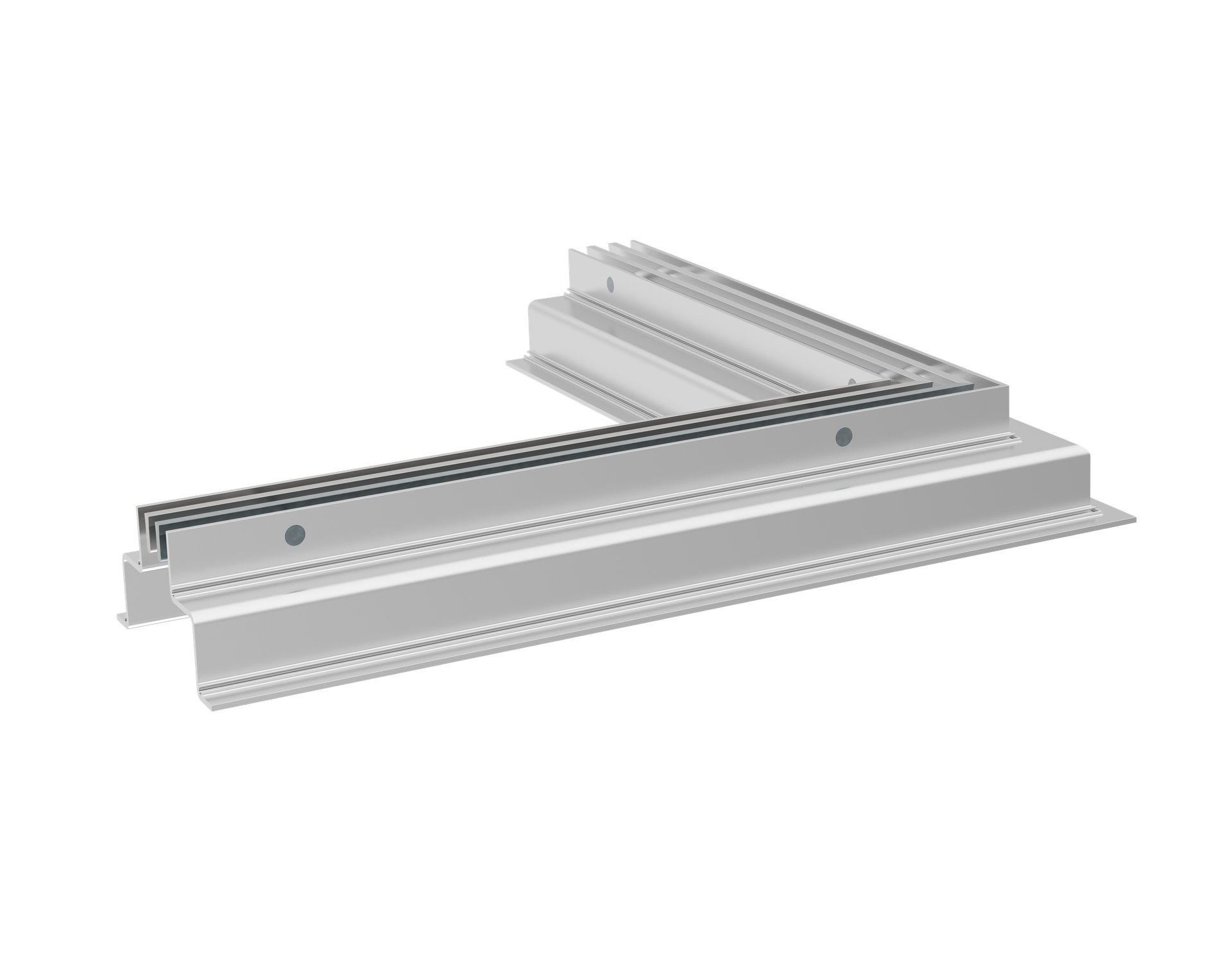

AQUA CE is a corner-element slot diffuser with a 90° angle. Available in different sizes,  it is designed for air supply in ventilation systems for swimming pools and wet spaces with large windows or glass walls. AQUA helps to protect glass surfaces from condensation caused by the moist environment. It has a tough, robust design making it able to withstand busy footfall when installed and operating. AQUA CE can be used as a functional element but it cannot be used in conjunction with a plenum box.

AQUA consists of a pressure-equalising console from two main aluminium profiles. These are connected by stainless steel thread bolts. These bolts also fix the aluminium profiles that separate the air discharge slots. There are vertical deflectors inside the console that help the air discharge pattern become homogenous and correctly oriented. The consoles can be connected into a multiple-segment array by connection pins.
