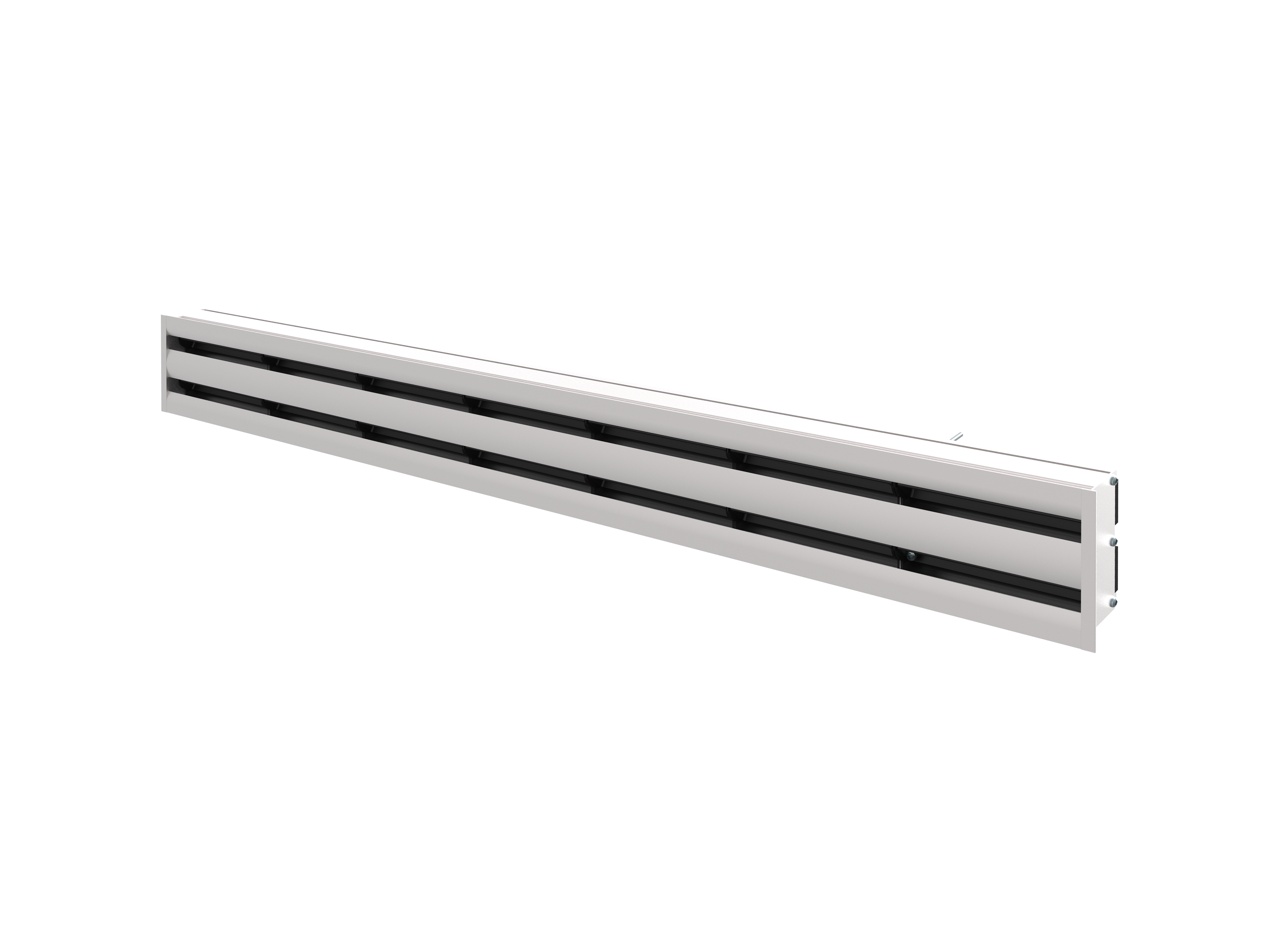

KSV Linear Diffusers

Slot diffuser with adjustable deflector for air supply in a variety of settings

Long Impact
High Induction
Narrow Construction
Comfortable Design

Number of slots

Diffuser length

Diffuser construction

KSV-1-600-B-0-AN#60351

£ 47.73excl. tax

Contact sales

or create account to buy online

Systemair DESIGN selection tool

Adjustable Deflectors

KSV diffusers have adjustable deflectors to direct the air supply to where it’s required.

Narrow Construction

The narrow, slimline, and ergonomic design makes the KSV diffuser an adaptable choice.

High Induction

KSV diffusers have high induction for efficient and reliable operation in a range of settings.

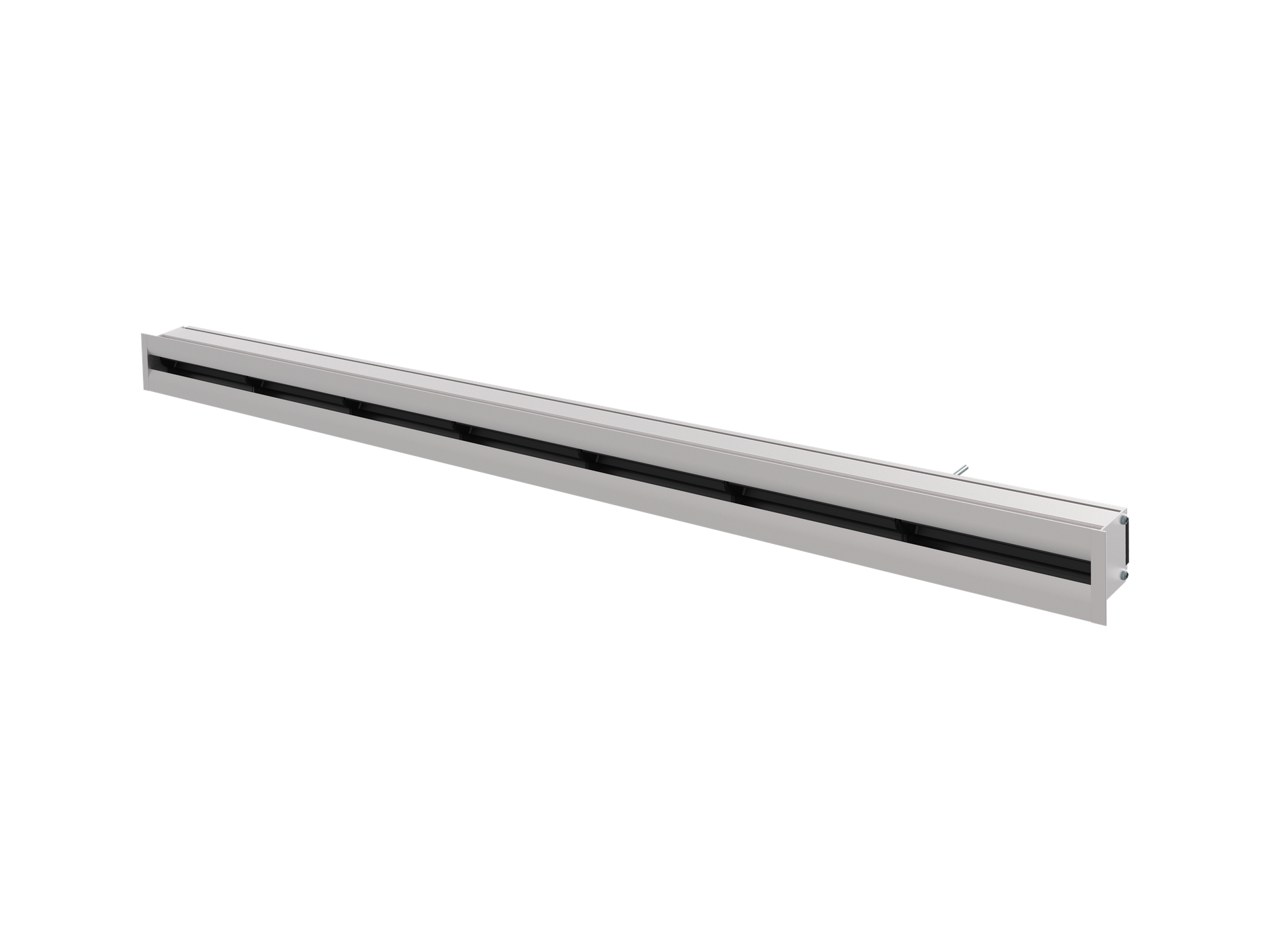

Available in different sizes, KSV is an adaptable slot diffuser fitted with adjustable deflectors. It is primarily designated for air supply and is suitable for installation in ceilings or walls, in commercial premises, offices, public buildings and residential premises with an elevation up to 4m. The installation of the KSV diffuser is possible with or without a plenum box.

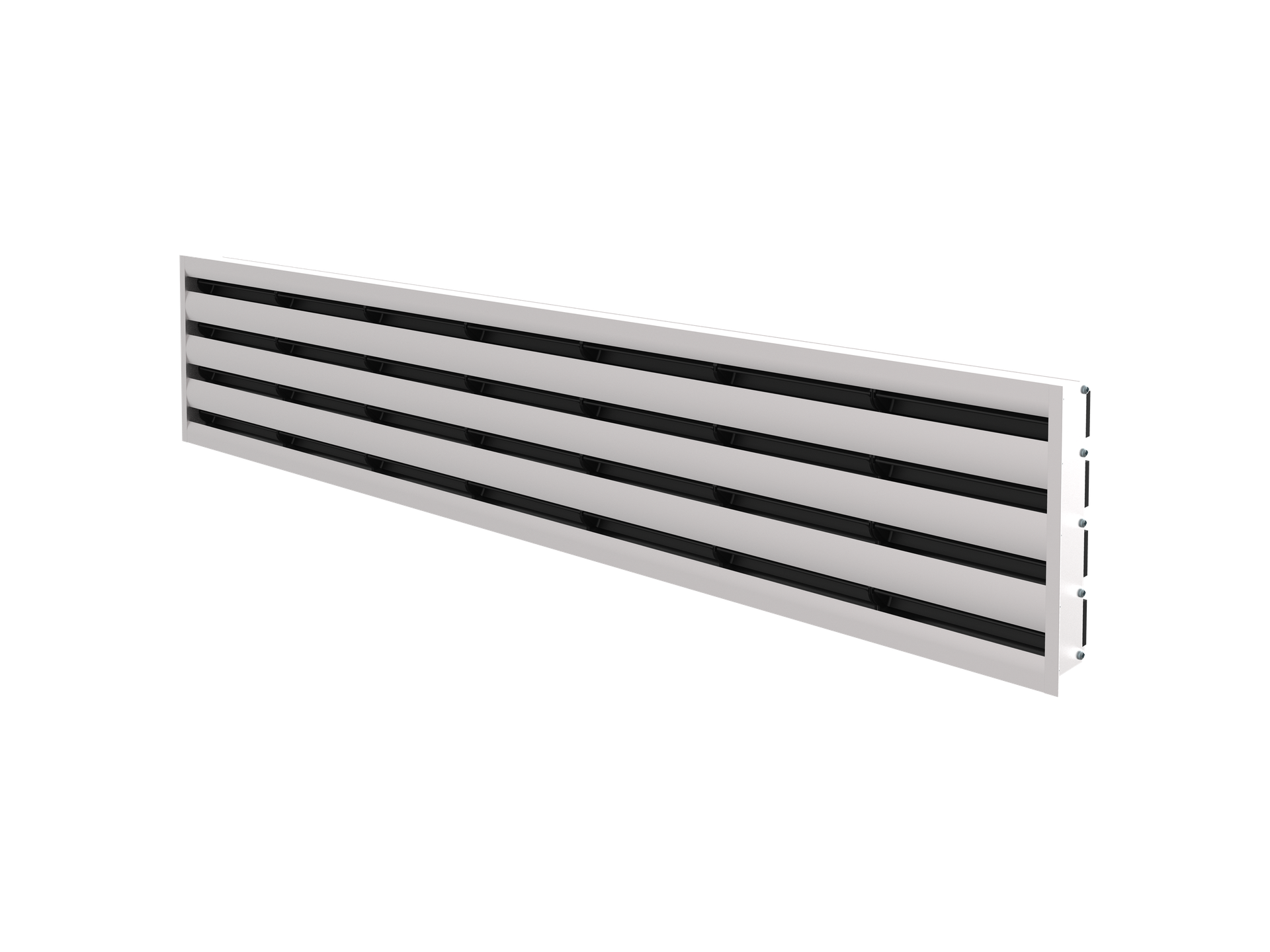

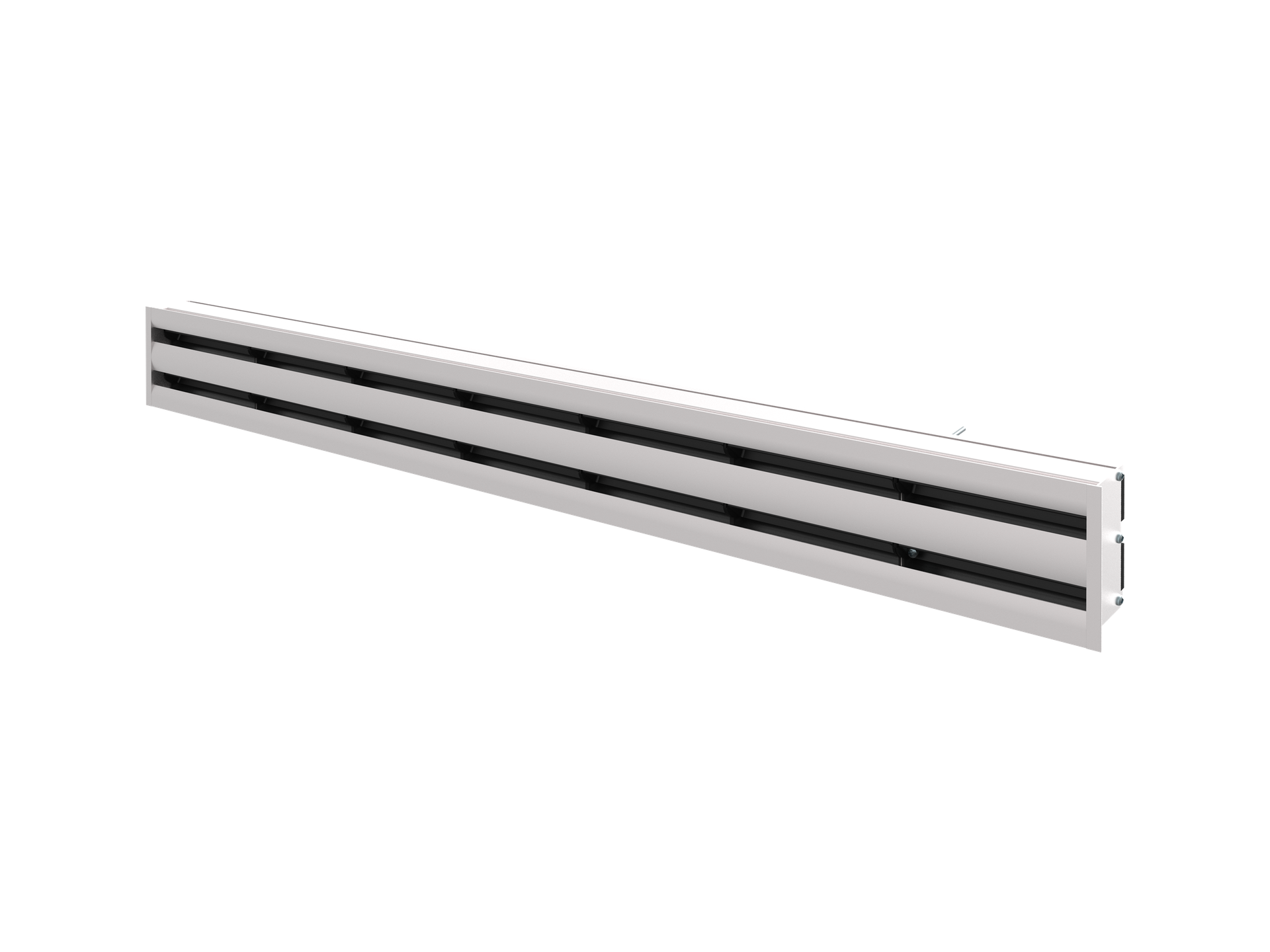

KSV has been designed for maximum comfort and allows for modular deployment. 1 to 4 slots on diffuse are available. The KSV is made of extruded aluminium profile with an elox surface. The inner part of the slot is plastic. The plenum box of the slot diffuser with both socket and regulating damper is made from galvanised steel sheet. A plenum box is also available fitted with sound attenuating or thermally insulating material.

Tech specs

Technical Data

Article name

KSV-1-600-B-0-AN

Article number

#60351

Default
Nominal data
Air flow(s)	41; 60; 71	m³/h
Duct connection type	Circular
Pressure drop	6; 13; 19	Pa
Sound power level	24; 29; 34	dB(A)
Sound pressure level (10 m² room absorbtion area)	20; 25; 30	dB(A)
Dimensions and weights
Weight	0.85	kg

Specification

Slotted outlet made of aluminum profiles. The surfaces can be supplied powder coated in RAL colors or painted in a color similar to anodized aluminum. The slotted outlets are available with 1 to 4 slots. Every slot is equipped with 15 cm long adjustable louver, which allows the air jet to be adjusted within a range of 180°. The end covers on both sides of the outlet are secured by screws. These can be removed, making it possible to connect several diffusers together.The junction box made of galvanized steel and a round duct connection can be supplied as an accessory for the diffuser with either inside or outside insulation. Mounting bridges made of galvanized steel are available for installation without a junction box. - Number of slots: 1- Diffuser length: 600- Colour of deflectors: Black- Diffuser construction: Complete unit incl. side frame at both ends- Surface finish: Anodized aluminium colour paint- Accessories: Plenum box- Length of plenum box: 600- Insulation: Without insulation- Air flow direction: Horizontal
