TFS Roof Fans

A compact, quiet, and reliable exhaust fan for domestic and commercial areas

Compact extract air fan, ideal for storage areas, offices, residential houses etc.
Durable and easy to maintain
Available with AC and EC motors for 50 and 60Hz
Low noise level

Base plate type

Color casing

Motor type

Duct diameter [mm]

TFSR 160 Sileo Black#92013

Frequency: 50/60 Hz

£ 207.50excl. tax

Contact sales

or create account to buy online

Applicability

The TFS fans are designed as very compact solution to fit roof exhaust extensions and provide a quick and straightforward installation. Fans are available in black, grey and brick red colour and can be used in a variety of commercial and domestic applications, e.g. single and multiple dwellings, offices, storages and day nurseries.

Highly Durable

The fan is housed in a galvanised steel powder-coated casing to provide required protection for demanding outdoor use. The combination of a highly reliable motor and long-life ball bearings, allows long continuous operation of the fan.

Easy Maintenance

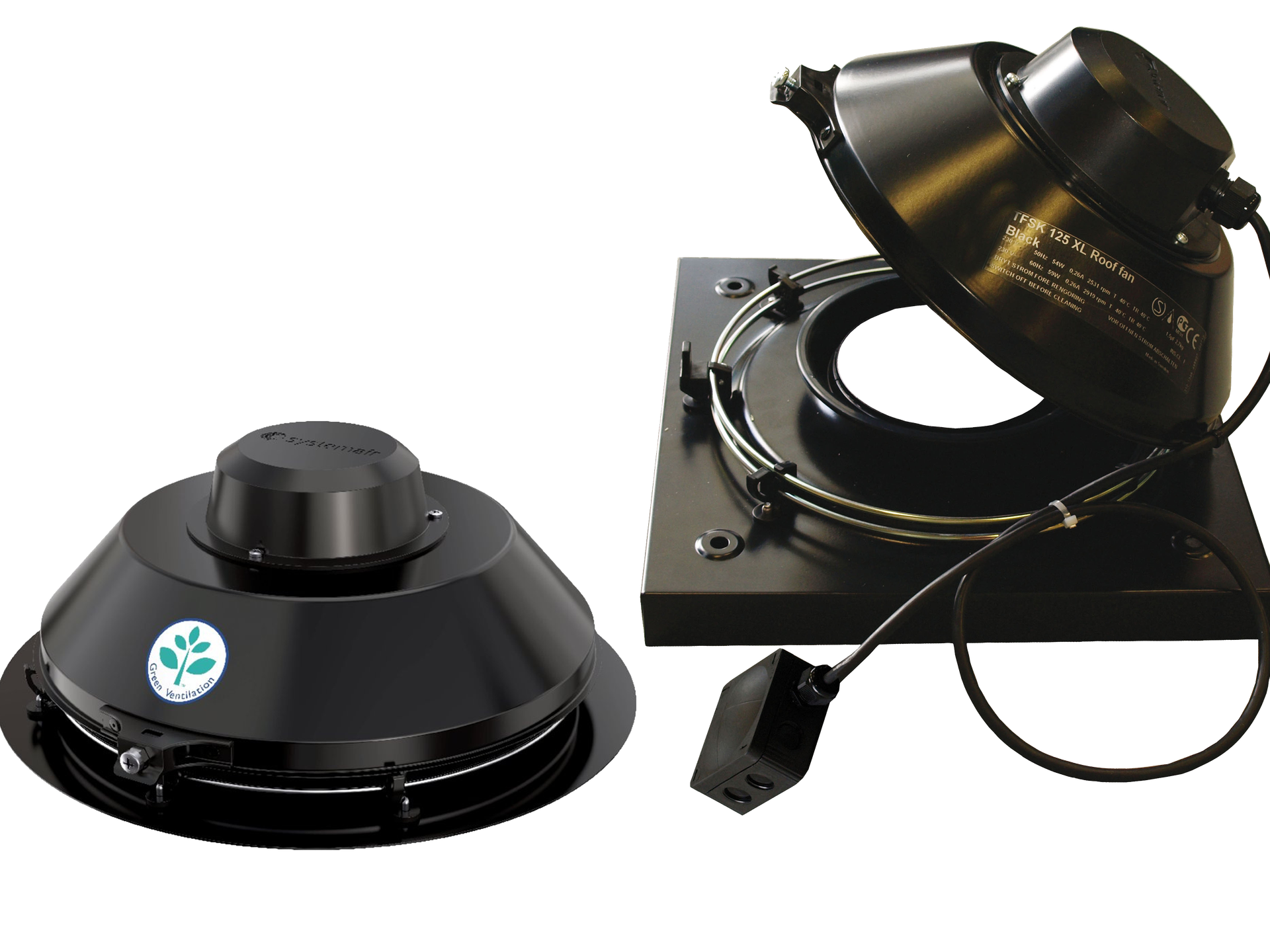

TFS fans deploy a ‘swing out’ design and have integrated on/off service switch on top of the casing to allow quick access for inspection and servicing.

Quiet solution

Noise optimised impeller makes the TFS fans a very quite solution. Further sound decrease obtained by using sound and thermal insulated roof curb (recommended accessory).

Certifications

Ecodesign (ErP) compliant

Compliant with today’s and tomorrow’s European Union rules and requirements for energy labelling and ecodesign for Energy-related Products (ErP).

AMCA Worldwide Certified Ratings: Sound and Air Performance

Systemair certifies that the model shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.Check the AMCA Certified and Listed Product Search for our products https://www.amca.org/certify/#certified-product-search

Case studies

Photograph of a branded van next to a apartment building

A clever and cost-effective renovation transforming a 1950s residential block

In Sweden’s popular summer destination, 135 apartments built in the 1950s gained a new level of comfort with a modern ventilation solution. Systemair, in close collaboration with the contractor, solved the challenges creatively.

Tech specs

Features

Construction

Casing made of galvanised sheet steel and for additional protection powder coated to grey, black and brick red colour. The casing of TFS includes a ‘swing out’ cover with integrated service switch to simplify maintenance. To simplify the wiring process on site, the fans are also equipped with an external terminal box (IP66) with a 1m long cable.

Impeller

TFS use backward curved radial impellers. These are made from lightweight, hard-wearing fiberglass reinforced polyamide, dynamically balanced and paired with corresponding external rotor motors.

Motor

Depending on type, TFS fans are equipped with AC or high efficient EC external rotor motors. All motors are suitable for 50Hz and 60Hz.

Motor protection

Fans with AC motors have integrated thermal protection with manual (electrical) reset.

Fans with EC motors have integrated electronic thermal protection including locked-rotor protection and soft-start.

Control

Fans with EC motor with built-in potentiometer to adjust working point can be also controlled by external signal 0-10V.

Fans with AC motor can be controlled by 5-step or stepless speed regulator (accessory).

For demand controlled ventilation it can be combined with timer, thermostat, hygrostat, etc.

Mounting

The TFS must be installed on the roof in horizontal or inclined position. We recommend to install the fan together with a roof curb (available as an accessory).

TFSR delivered with spigot for the cases of direct connection to the circular duct. For cold climates we recommend continuous operation of the fan.

Technical Data

Article name

TFSR 160 Sileo Black

Trade name

Systemair

Article number

#92013

	230V 1~ 50Hz
Nominal data
Voltage (nominal)	230	V
Frequency	50	Hz
Phases	1~
Input power	51	W
Input power kW	0.051	kW
Input current	0.222	A
Impeller speed	2,377	rpm
Air flow	max 0.1159	m³/s
Capacitance of capacitor	1.5	µF
Temperature of transported air	max 70	°C
Max temperature of transported air, when speed controlled	70	°C
Sound data
Sound pressure level at 10m (free field)	36	dB(A)
Sound pressure level at 3m (free field)	46	dB(A)
Sound pressure level at 4m (free field)	44	dB(A)
Protection/Classification
Enclosure class, motor	IP44
Insulation class	B
Data according to ErP
Energy class, Basic unit	E
Energy class, Local demand	B
ErP ready	ErP 2018; ErP 2016
Dimensions and weights
Duct dimension; Circular, inlet	160	mm
Weight	4.1	kg
Others
Duct connection type	Circular
Color name, casing	Black
Motor type	AC

Ecodesign

	230V 1~ 50Hz
Basic unit
ErP compliance	2018
SEC Average	-13.7	kWh/(m².a)
SEC Cold	-30.1	kWh/(m².a)
SEC Warm	-4.3	kWh/(m².a)
SEC Class	E
Unit category	RVU
Unit type	UVU
Drive	External MSD or VSD
Heat recovery type	nan
Temperature ratio (UVU)	Not applicable
qv max	346	m³/h
P max	50	W
Sound power (LWA)	57	dB(A)
qv ref	0.068	m³/s
Ps ref	50	Pa
SPI	0.109	W/(m³/h)
CTRL	1
MISC	1.1
x-value	1.5
External Leakage	0	%
AEC average	137	kWh
AHS Cold	137	kWh
AEC warm	137	kWh
AHS Average	1,715	kWh/a
AHS Warm	776	kWh/a
Units with local demand control
ErP compliance	2018
SEC Average	-26.5	kWh/(m².a)
SEC Cold	-53.6	kWh/(m².a)
SEC Warm	-11	kWh/(m².a)
SEC Class	B
Unit category	RVU
Unit type	UVU
Drive	External MSD or VSD
Heat recovery type	nan
Temperature ratio (UVU)	Not applicable
qv max	347	m³/h
P max	50	W
Sound power (LWA)	57	dB(A)
qv ref	0.0675	m³/s
Ps ref	50	Pa
SPI	0.109	W/(m³/h)
CTRL	0.65
MISC	1.1
x-value	1.5
External Leakage	0	%
AEC average	72	kWh
AEC cold	72	kWh
AEC warm	72	kWh
AHS Average	2,830	kWh/a
AHS Cold	5,536	kWh/a
AHS Warm	1,280	kWh/a
