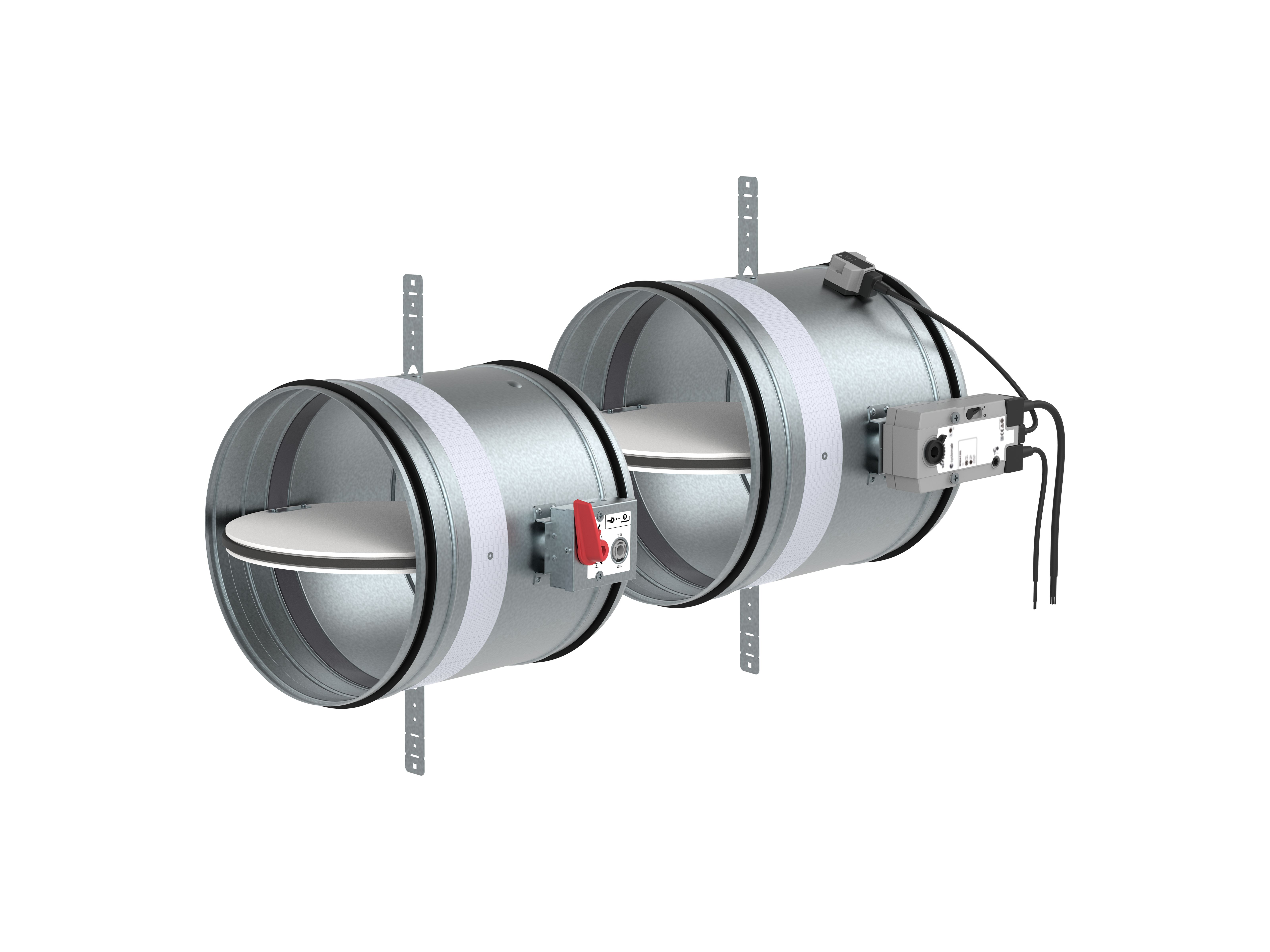

F-R60 Circular Fire Dampers

Optimized for 60 minute resistivity

Short body
Interchangeable mechanism
Fire resistivity EI60S
Steel casing
Inspection hole for camera

Size

Type of control

F-R60-100-H0#501991

On demand

Contact sales

or create account to buy online

Systemair DESIGN selection tool

Interchangeable mechanism

The F-R60 fire damper has an interchangeable mechanism allowing for manual or actuator operation.

Compartmentalisation

F-R60 fire dampers provide passive fire protection by using compartmentalisation to prevent the spread of toxic gases, smoke and fire.

Galvanised sheet metal construction

The casing of the F-R60 fire damper is made of galvanised steel and a range of non-hazardous substances.

Foam installation

Installation with fire resistive foam from HILTI is just a natural experience.

F-R60 fire dampers are CE certified following the Construction Products Regulation according to EN 15650:2010. Dampers are tested according to EN 1366-2:2015 and classified according to EN 13501-3 + A1:2009.

The fire damper together with its installation form an inseparable part of the fire resistivity rating.

F-R60 fire dampers are designed for the installations listed and described in their Handbook.

Tech specs

Technical Data

Article name

F-R60-100-H0

Article number

#501991


Nominal data
Actuator/Mechanism	H0 (Manual crank, no switches)
Air flow(s)	57; 254; 311	m³/h
Air velocity	2; 9; 11	m/s
Duct connection type	Circular
Duct dimension/Diamter; Cicular	100	mm
Installation Methods	Not selected
Pressure drop	5; 98; 147	Pa
Sound power level (discharged into duct)	14; 53; 59	dB(A)
Dimensions and weights
Weight	2	kg
