Freshman Air Handling Units

The Freshman series classroom units are flexible non-packaged units (no compressor) that allow for greater design options and cabinet choices, and that’s just the beginning.

Using a hat trick of sound guidelines and standards to give teachers and students the absolute quietest units in North America.

Our Intelligently Quiet (IQ) design is backed by:

AMCA Standard 300-08 – Our sound laboratory is an AMCA-accredited reverberant room. Reverberant room method for sound testing in accordance with AMCA Standard.
ANSI/ASA S12.60 – Sound guidelines and requirements for schools – designing a classroom with reliable data
AHRI 260 – tested in accordance with AHRI 260 – sound rating of ducted air moving in conditioned equipment

Our Freshman IQ units are the only classroom unit that bears the AMCA label for sound, and adhere to the above three standards and guidelines which means you get the quietest unit ventilator for your classroom needs.

Unmatched sound performance

With available Sound Power Data from an accredited reverberant Laboratory, NC 30 classrooms are a reality.

Flexible Applications

HVAC performance suitable for classrooms, office spaces, gyms, workshops and meeting rooms.

High Efficiency Unit

Energy recovery wheel, EC Fans, COP, EER, VRF and Economizer efficiency options

Many heating & cooling options

VRF, Hot Water, Steam, Electric, High Efficiency Gas with or without Chilled Water, Split DX Heat & Cooling Choices

Easy service

All components are designed to facilitate maintenance, which ensures a long reliable operation.

Building management system (BMS)

Factory Standalone or BACnet controls.

Controls Configuration Tool

This powerful, user-friendly color backlit LCD display offers managers and technicians real-time access to crucial system data, streamlining operations and maximizing efficiency.

CLASS 2.0 Software - easy selection

Our design program ensures an optimal dimensioning of the unit’s functions, quickly and easily.

Options and Features

Changeair+ integrates VRF components allowing schools to tie in their VRF condensers to Freshman classroom units seamlessly.

DDC-ready unit or an integrated BACnet controls for CO2 monitoring and demand-controlled ventilation

Air-side economizer: outside air, the damper can allow up to 100% of supply-rated CFM

Total energy recovery wheel or cross-flow plate-to-plate heat/energy exchanger for unmatched energy efficiency in the classroom

Airtight cabinet

Non-toxic acoustic insulation

Laminar intake grille

Acoustically engineered doors and panels

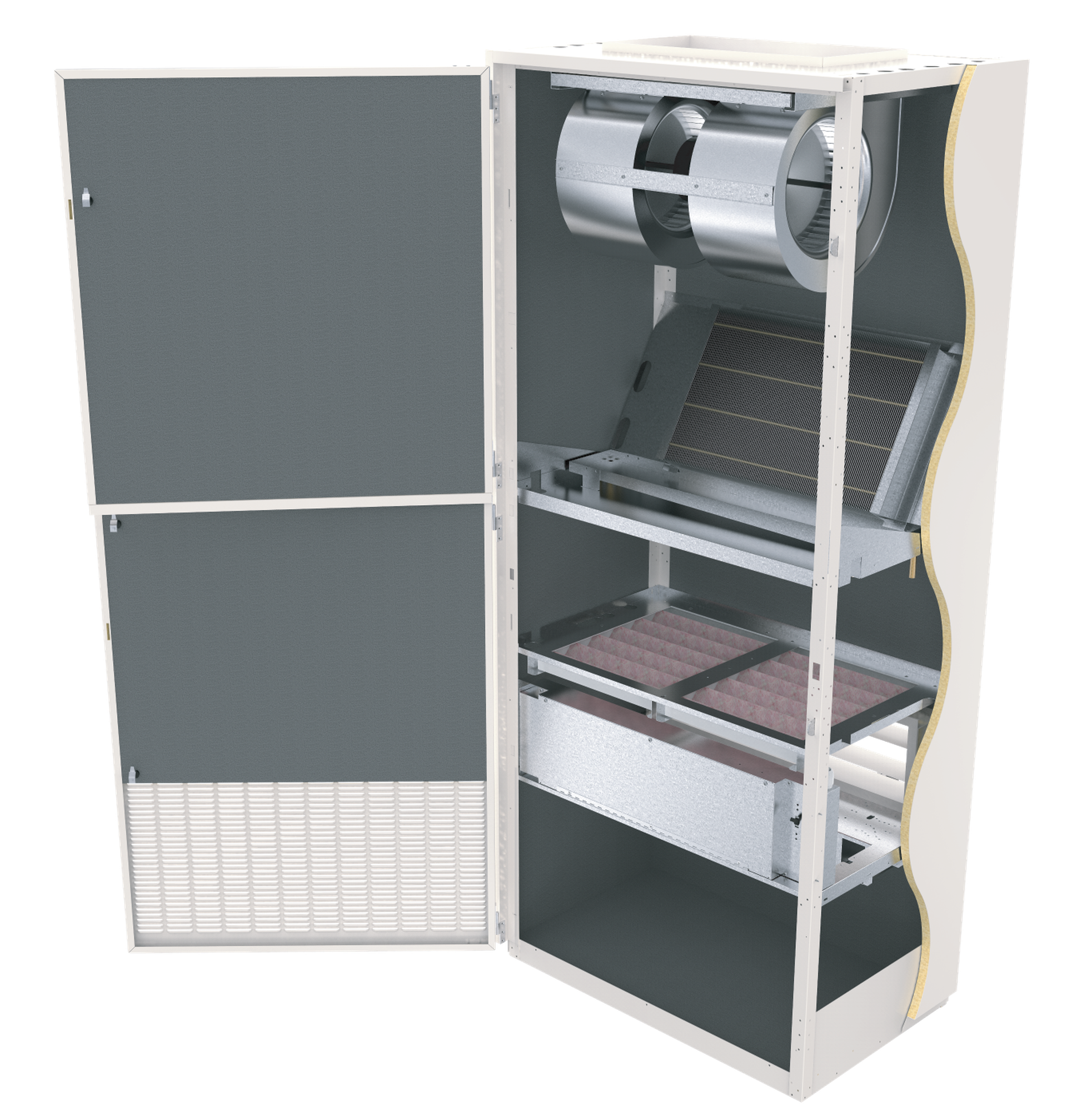

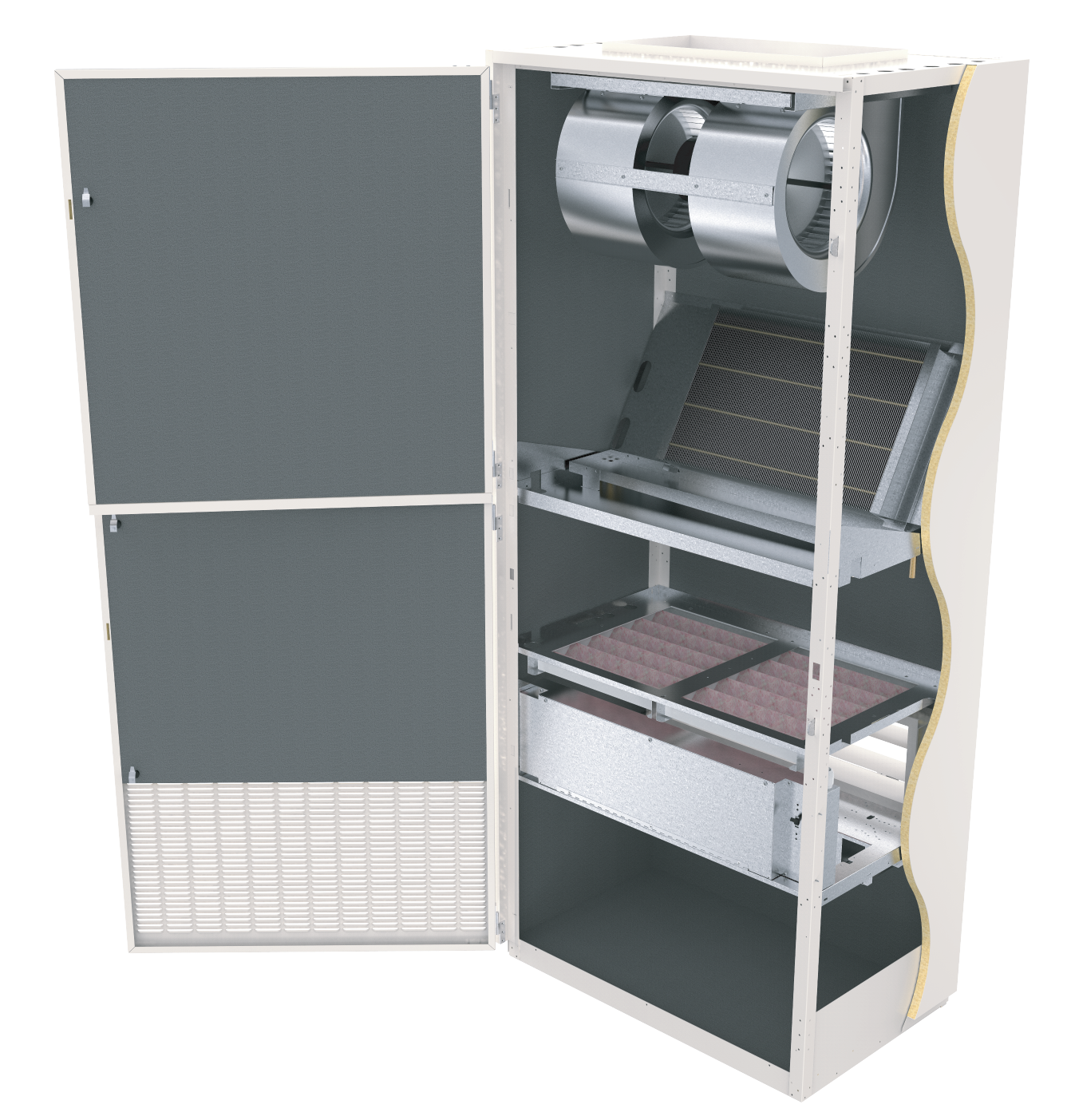

Dual fan body design

Supply fans mounted in a dual fan assembly which is double isolated from the unit’s structure and built on slide-out rails for ease of maintenance.

Enhanced coil

Our aluminum wave fin coils were specifically engineered to enhance sound performance while maximizing efficiency.

Attenuating return plenum

Designed to absorb sound energy
