CLASSIC - B Cooker Hoods for SAVE and central units
An effective volume cooker hood with ON/OFF damper switch and LED lighting
Ergonomic Design
Timer Operation
Effective Odour Extraction
Easy Filter Cleaning
Damper Ventilation
CLASSIC - B White#326802
Efficient
The Classic B provides effective and efficient cooker hood extraction for both domestic and commercial environments.
Easy Maintenance
The aluminium grease filter allows for simple removal for cleaning in hot, soapy water or in the dishwasher.
Damper
By activating the ON/OFF damper switch, a signal is automatically sent to the unit to increase the ventilation capacity.

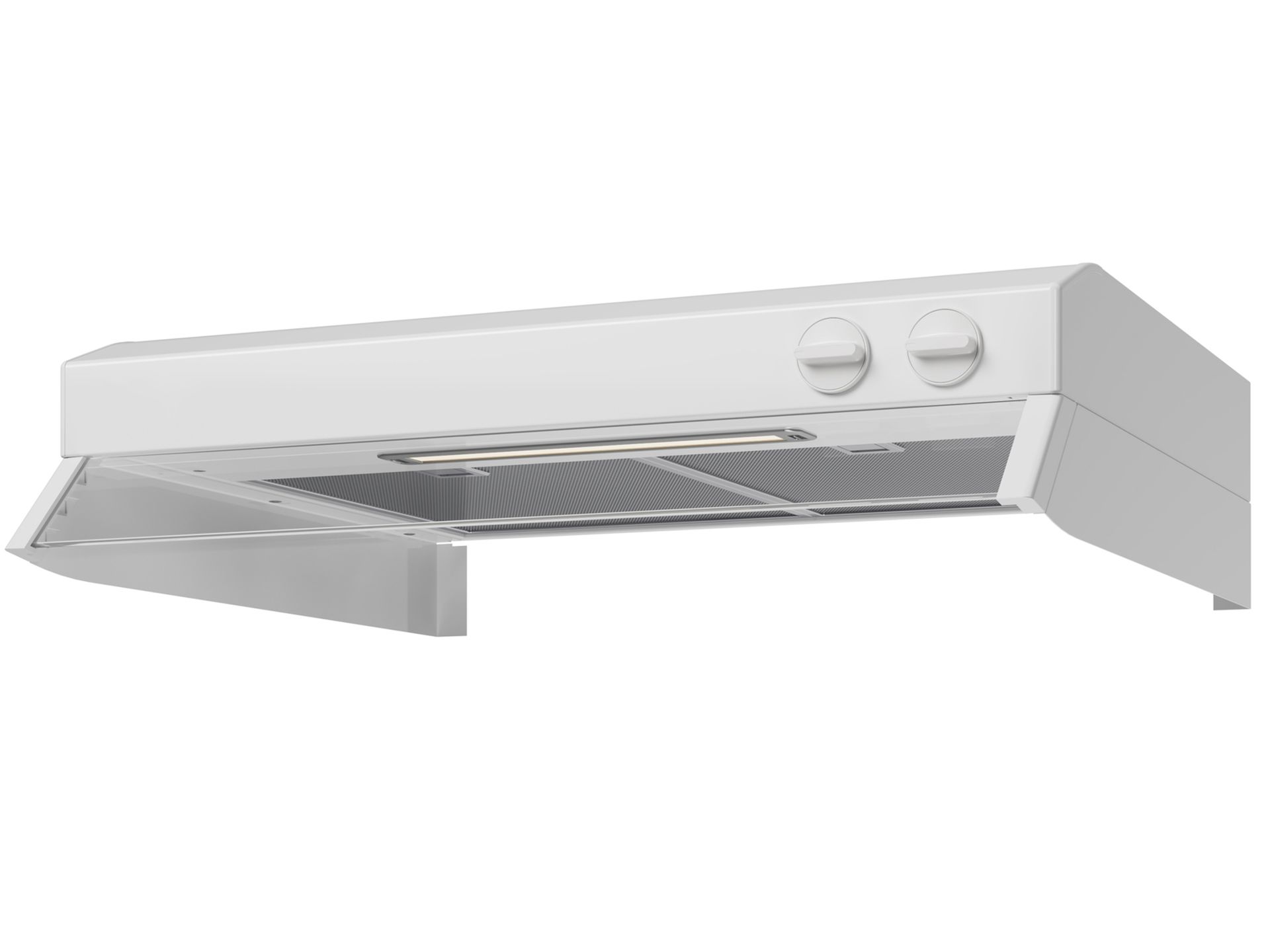

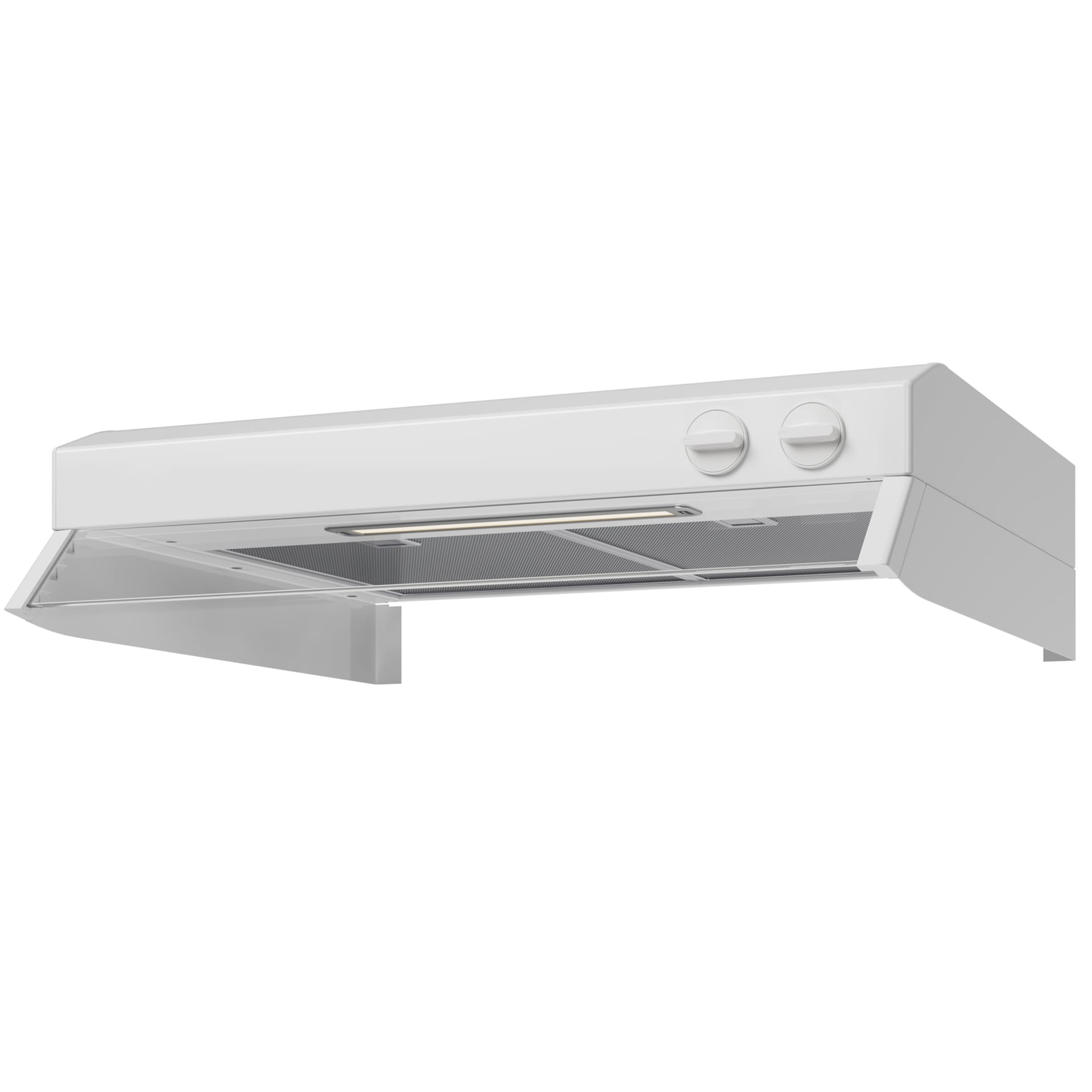

The Classic B is an effective and efficient volume cooker hood featuring an ON/OFF damper switch and LED lighting. By switching on, a signal is automatically sent to the unit to open the damper and thereby increase the overall ventilation capacity. The aluminium grease filter allows for easy removal for cleaning in hot, soapy water or in the dishwasher. Large guides are available as an accessory.
The Classic B provides variable odour extraction without an air guide or when used in conjunction with big or small air guides as required.
Odor extraction without air gudes >75% at 170 m3/h when 50 cm above the oven and 184 m3/h when 60 cm above the oven (EN 13141-3:2017).
Odor extraction with small air guides >75% at 159 m3/h when 50 cm above the oven and 180 m3/h when 60 cm above the oven (EN 13141-3:2017).
Odor extraction with big air guides >75% at 126 m3/h when 50 cm above the oven and 152 m3/h when 60 cm above the oven (EN 13141-3:2017).
The cooker hood is designed to be connected to the dedicated 5th duct connection on the SAVE/B unit. Digital output (DO) wires from the cooker hood have to be connected to any free universal input (UI) on the unit.
