Prio Silent XPprio silent 150E2 duct fan
prio silent 150E2 duct fan #39483, Mixed-flow fan with integrated silencer
00.010.020.030.040.050.060.070.080.090.10.11m³/s050100Pa80V105V130V160V230V0.0780
Advanced calculation
prio silent 150E2 duct fan #39483, Mixed-flow fan with integrated silencer product image

Prio Silent XP Circular Duct Fans

Mixed-flow fan with integrated silencer

  • Unique patented combination of silencer and fan casing

  • Option to change air direction in casing

  • Available with AC and EC motors for 50 and 60Hz

  • Sound and energy optimized impellers

  • Very low weight

  • Easy to clean

This product has been replaced by Prio Silent XP 150E2.
prio silent 150E2 duct fan#39483
Frequency: 50/60 Hz

Flexibility

The Prio Silent XP fans are intended to use for supply or extract air and are designed to be installed in any position. This ensures that the fans can be used in a variety of commercial and domestic applications.

Reliability

The hybrid silencer/casing has a very good resistance against most chemicals and oils. The hydrophobic surface of the casing is easy to clean and allows using the fan in wet conditions.

Performance

The sound optimized impellers together with high efficient external rotor motors are designed to ensure high-level performance to minimize power consumption and maximize efficiency.

Accessories

Prio Silent XP can be selected together with variety types of accessories as fast clamps, heaters, filters, dampers, etc.

Certifications

Ecodesign (ErP) compliant certification logo
Ecodesign (ErP) compliant

Compliant with today’s and tomorrow’s European Union rules and requirements for energy labelling and ecodesign for Energy-related Products (ErP).

Tech specs

Features

Construction

Hybrid silencer/casing manufactured from EPP and special composite material, is fully air tight class C according to EN12237.

Fans are equipped with an external terminal box with protection class IP44.

Impeller

Prio Silent XP have aerodynamically optimized impellers and guide vanes. These are from lightweight, hard-wearing fiberglass reinforced polyamide, dynamically balanced and paired with corresponding external rotor motors.

Motor

Depending on the type, Prio Silent XP fans are equipped with AC or EC external rotor motor. Motors are suitable for 50Hz and 60Hz.

Motor protection

Fans with AC motors have an integrated thermal protection with manual (electrical) reset.

Fans with EC motors have an integrated electronic thermal protection including locked-rotor protection and soft-start.

Control

EC motors with built-in potentiometer to adjust working point can be also controlled by external signal 0-10V.

AC motors can be controlled by 5-step or stepless speed regulator.

Installation

Prio Silent XP can be installed in any position by using metal rail with holes. Spigot with 25 mm length is perfectly designed to connect circular duct by using fast clamps preventing vibration to the duct.

Technical Data

Article name
prio silent 150E2 duct fan
Article number
#39483
230V 1~ 50Hz
Nominal data
Voltage (nominal)230V
Frequency50Hz
Phases1~
Input power28W
Input power kW0.028kW
Input current0.125A
Impeller speed2,292rpm
Air flowmax 114L/s
Temperature of transported airmax 55°C
Max temperature of transported air, when speed controlled55°C
Sound data
Sound pressure level at 3m (20m² Sabin)30dB(A)
Protection/Classification
Enclosure class, motorIP44
Insulation classB
Data according to ErP
ErP readyNot ErP relevant
Dimensions and weights
Duct dimension; Circular, inlet150mm
Duct dimension; Circular, outlet150mm
Weight5.6kg
Others
Motor typeAC

Performance

Dimensions

Prio Silent XP #39483, Dimensions
prio silent
150
A
708
ØB
150
C
234
ØD
226
E
74
F
140
ØG
10,5

Documentation

BIM

Loading...

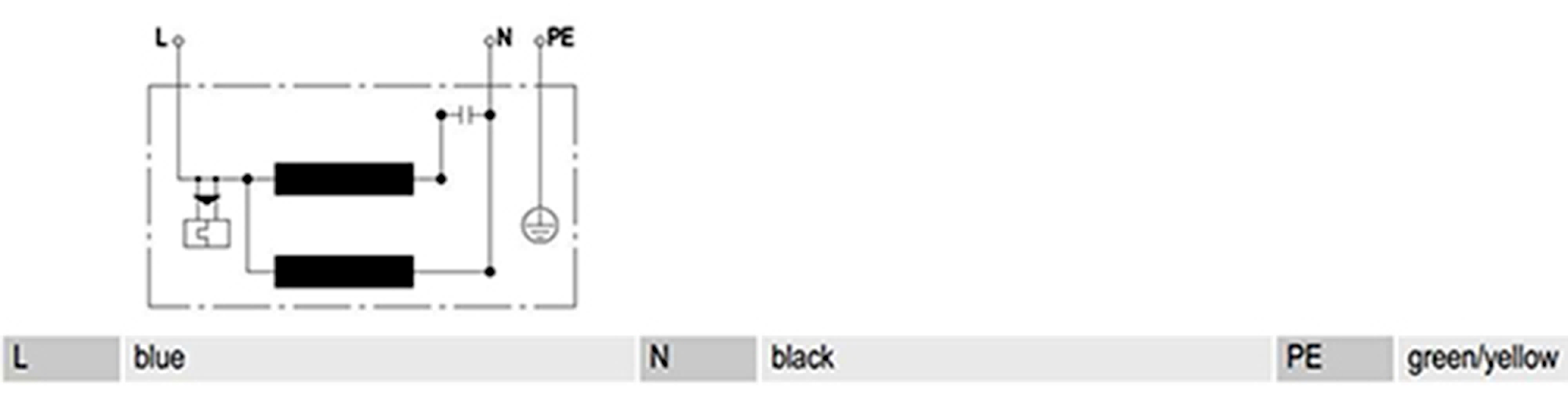

Wiring
