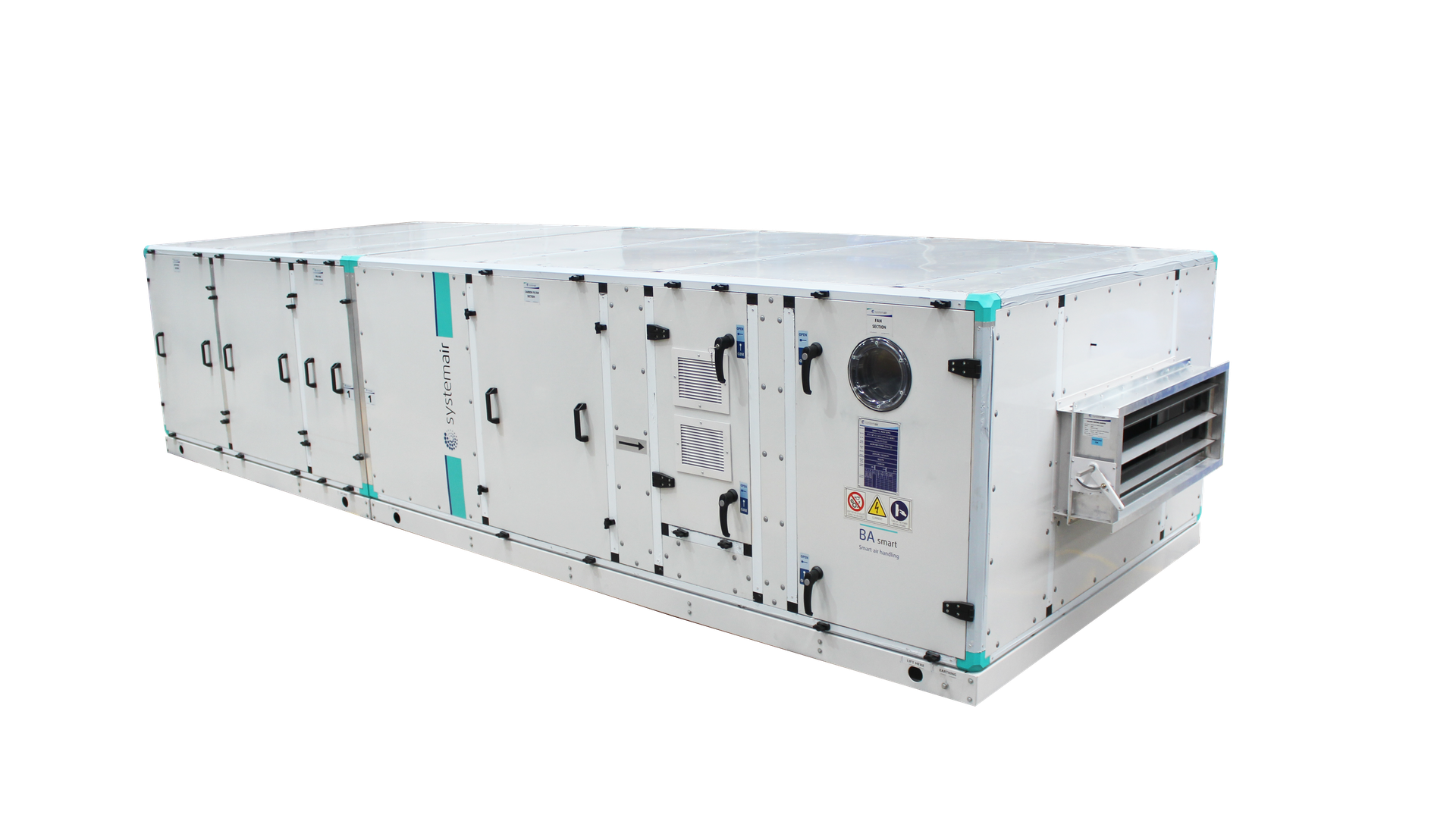

BA Unit Air Handling Units
Eurovent-certified modular air handling units suitable for medium or high air pressure systems
BA Units can handle airflows from 1,000 to 178,000 m3/h
Modular and robust units designed for medium to high air pressure systems with static pressure up to 2,300 pa
Eurovent-certified units ensure trustworthy performance data
Available with options for integrated controls for a simple, plug-and-play start-up
Enhanced thermal transmittance of T2 with BA+
Flexible applications
Systemair BA units are available in different sizes offering a flexible solution for various applications, from small offices to larger industrial applications.
Certified and complaint with high environmental standards
BA units are Eurovent certified ensuring that an independent third body has validated declared performance data. All Systemair BA units are also manufactured to comply with the highest environmental requirements.
Easy to design, select and configure
Systemair BAHU software helps you select the best BA configuration for your project. The units are designed for easy installation with systems that enable plug-and-play start-up.
Exceptional controls
All units are available with the option to integrate smart, in-built controls, which, combined with the components, offer even greater energy savings of up to 40%.
Enhanced energy efficiency and Eurovent certified
BA+ have enhanced thermal transmittance compared to other models within the range. Combined with low energy consumption components and controls, the units can provide optimum energy efficiency. The units are also Eurovent certified, ensuring data trustworthiness as validated by an independent body.
Real-time 3D visualisation
The BA Plus air handling units are available through Systemair’s HVAC PRODUCTS PRO, a Virtual Reality (VR) application to support technical education, installation, and maintenance training.
Eurovent-certified and energy efficient
BA units are Eurovent certified ensuring that an independent third-party certification body has validated declared performance data.
The systems and components also have been developed to satisfy stringent demands for low energy consumption. Heat exchangers, motors, and fan units have all undergone extensive laboratory and field testing.
The results are a unit that can offer your project optimal energy efficiency.
| BA+ | BA | |
| Casing Strength | D1 | D1 |
| Casing Air Leakage | L1 | L1 |
| Thermal Bridging Factor | TB2 | TB2 |
| Thermal Transmittance | T2 | T3 |
| Filtre By Pass Leakage | F9 | F9 |
Get SMART. Get BA.
Systemair Modular AHU with Advanced Reliable Technology
The BA units are available with a pre-installed, preconfigured and fully integrated control system. It is a user-friendly system where functions and parameters can be selected from the inbuilt Human Machine Interface (HMI) of the controller and can interact with Building Management Systems.
The operating data, set points, alarms, operating status and time settings are displayed in the controller. The control system is preloaded with design temperature, relative humidity, pressure drops, time settings and control sequence to simplify field commissioning, all of which can be modified according to need.
Inspired by smartphones, the easy controls enable a seamless user experience within the robust design.
)

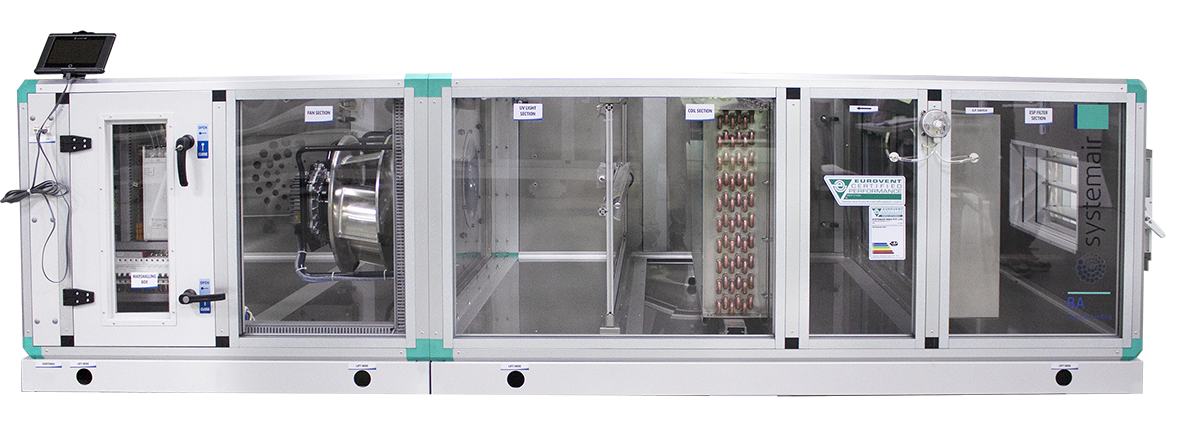

The heart of any ventilation system
BA air handling units are designed for any configuration – and any application.
The flexibility makes it possible to optimise the AHU for specific requirements
)
Supply and extract dampers
Low-leakage extruded aluminium dampers suitable for manual or motorised operations.
Heat transfer coils
Copper tube aluminium finned heat transfer coils are available in multiple rows deep and are designed to give certified performance output for heating, cooling and recovery applications.
Base Frame
The base frame is made of galvanised steel with lifting provision.
Supply and extract filters
Units are offered with high quality and low pressure drop filters of different particulate efficiency.
EC fan and motors
A wide range of fans and motors can be offered based on the requirement.
EC fans
Belt-driven DIDW centrifugal FC/BC fans
Centrifugal plug fan
Motors with IE2/IE3 efficiency
PM motor with IE4/IE5 efficiency
Low noise with high-efficiency axial fans with PM Motors
Tightness and corners
Framework of airtight, elegant and sturdy extruded aluminium hallow profile with polyamide thermal break profile having glass filled nylon corners and spacers.
Control system
Units can be provided with factory-tested control systems for all necessary standard functions and the settings can be easily adjusted to desired operational values.
Inspection doors and handles
Adequate-sized inspection doors are provided in each section fitted with high quality handles.
Find the right BA AHU for your project
Use the Systemair BAHU software to help you select the best BA configuration for your project.
And best of all – you can download all data and documentation before you place your order.
World-class production facilities
BA Units are designed and produced in Systemair India, which features an AMCA-accredited laboratory for performing measurements as per AMCA 210 and AMCA 300 standards. The Laboratory consists of a reverberation room and Air Flow Chamber for precise air & sound measurement.
Systemair's AMCA accredited Lab ensures the credibility of measurements performed and recognition for commitment to quality, technical competency and unbiased, reliable results.
Pioneering green labels
Systemair in India is the first manufacturer to acquire "Green Pro Ecolabel" for its products.
GEN accredits this program through GENICES - GEN's Internationally Coordinated Ecolabelling System and is in line with UN Environment guidelines on providing product sustainability information.
