NOVA-RF Grilles

Ventilation grille with filter ideal for air extraction in re-circulation systems with fan coils

Wall or ceiling installation
Aesthetic design
High stability
Easy maintenance

Length

Height

Surface finish

NOVA-RF-200x100-AN#254639

Contact sales

Systemair DESIGN selection tool

Wall or ceiling installation

The NOVA-RF is a ventilation grille with a filter for wall or ceiling installation in offices, residential premises or hotels.

Aesthetic design

The NOVA-RF filter grille has an aesthetic and precise design making it suitable for settings where appearance is a factor.

High stability

The NOVA-RF has high stability and safety making for easy installation and operation in walls and ceilings.

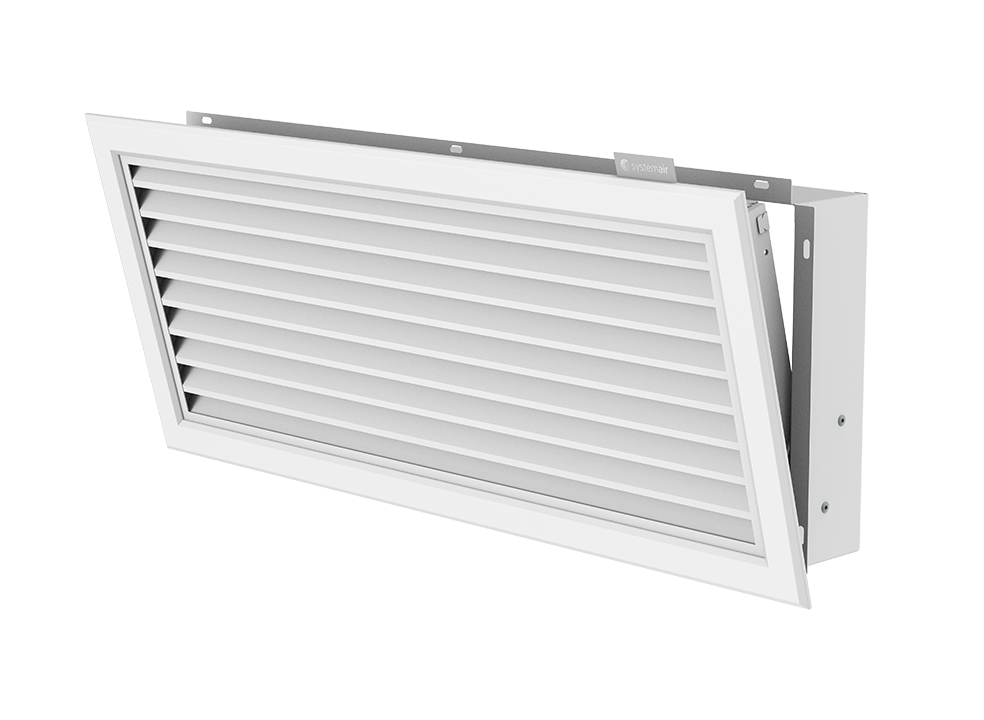

The NOVA-RF ventilation grille with a filter provides effective air extraction in re-circulation systems with fan coils. It has high stability and safety for installation in walls and ceilings and is available in a range of sizes. The grille has a precise finish and fine aesthetic design making it suitable for installation in settings where appearance is a key factor. No tools are required for quick and easy access to the filter inlay for cleaning and maintenance.

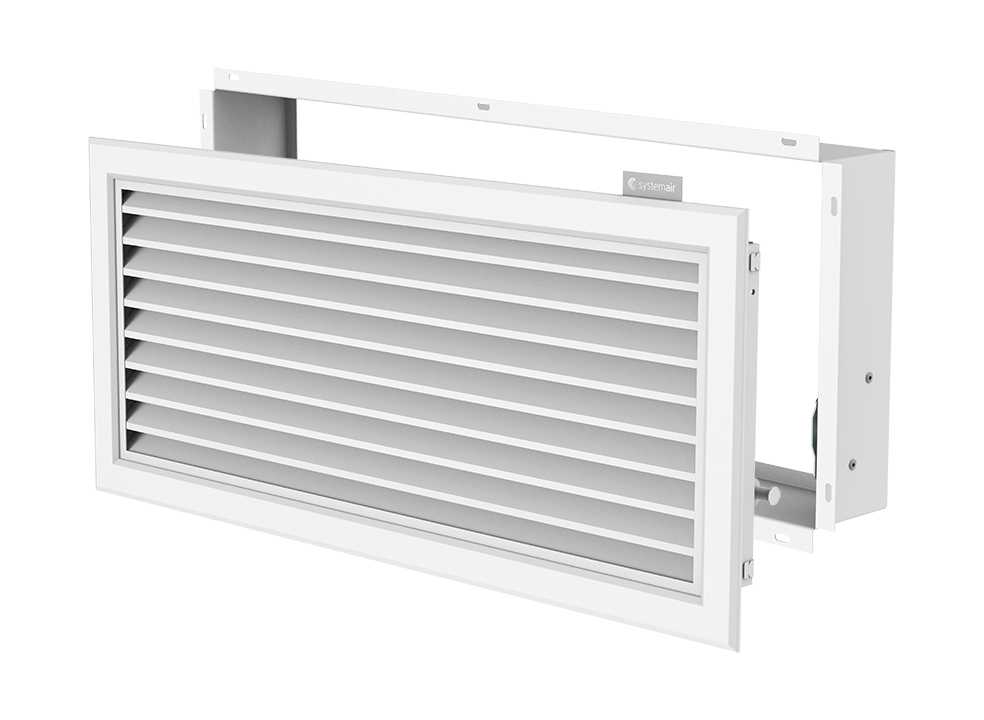

NOVA RF is composed of two main parts. The wall or ceiling mounting frame is made from galvanised steel with a filter inlay and a detachable mesh screen. The filter is in class “coarse 65%” and is accessible without the need for tools. To access the filter, the front grille which is held in the frame by spring clips can be easily opened or removed.

Tech specs

Technical Data

Article name

NOVA-RF-200x100-AN

Article number

#254639


Nominal data
Air flow(s)	36; 56; 80	m³/h
Duct connection type	Rectangular
Pressure drop	25; 48; 82	Pa
Sound power level	24; 29; 34	dB(A)
Sound pressure level (10 m² room absorbtion area)	20; 25; 30	dB(A)
Dimensions and weights
Weight	0.53	kg

Performance

Dimensions

Specification

Ventilation grille, opaque, with fixed slats. The square exhaust air grille is made from aluminum profiles. The slats are mounted with a center distance of 20 mm and are angled downwards by 45°. As standard, equipped with an installation frame with a removable filter cartridge. Both parts are made of galvanized steel. The grille is held in the frame on one side by a guide and on the other side by clamping springs. The guide, consisting of guide rails and guide pins, prevents the grille from falling out, for example when changing the filter. It enables safe installation even in ceilings. The “coarse 65” filter is held in the filter cartridge by bendable tabs. As standard, available in sizes from 200 x 100 mm to 1200 x 500 mm and 225 x 125 mm to 1225 x 525 mm. The grille can be anodized or powder-coated in RAL9003 (signal white). Other RAL Classic colors are available on request. - Length: 200- Height: 100- Surface finish: Anodized aluminium finish- Airflow direction: Supply
