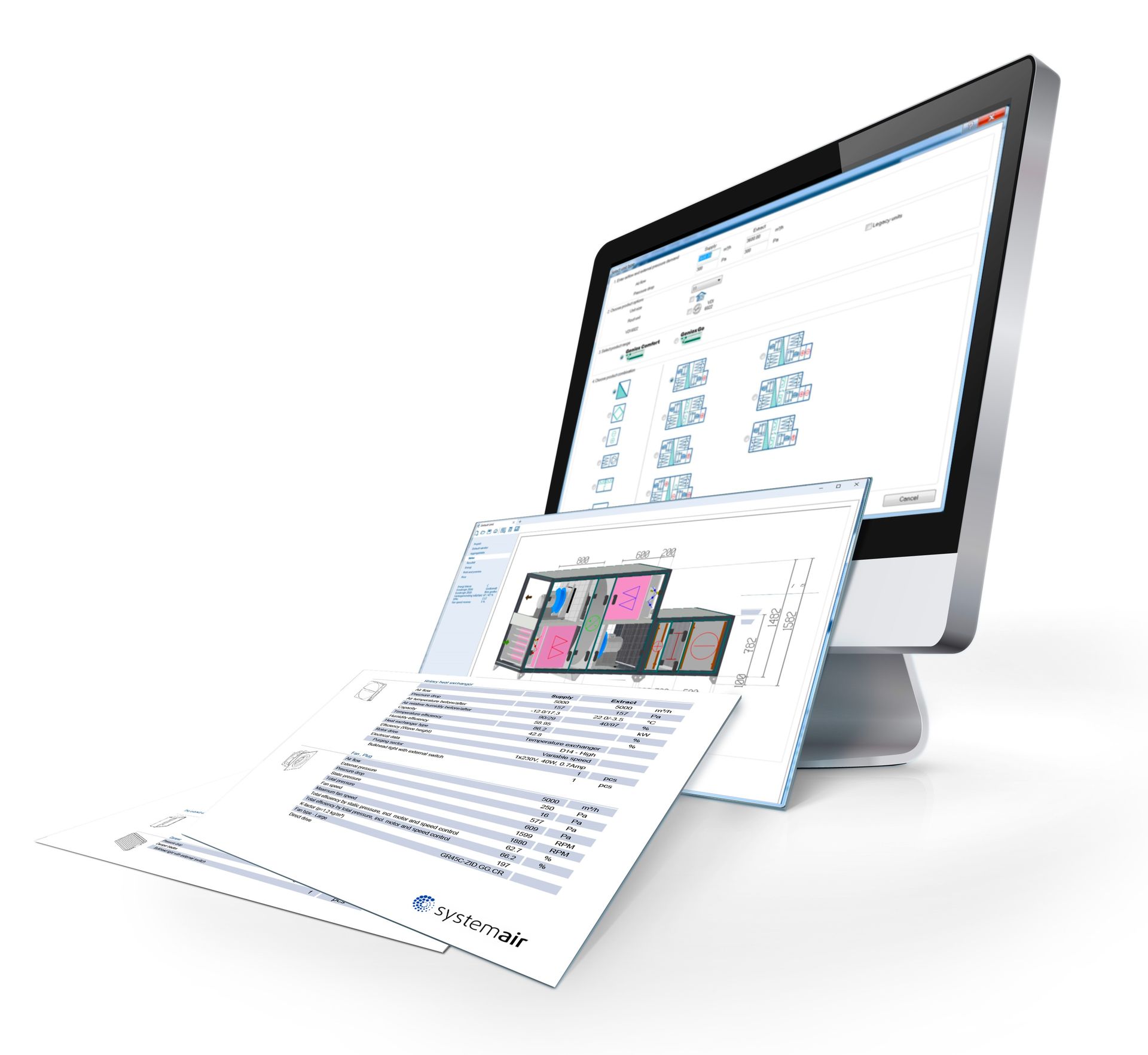

Systemair's selection software for Geniox air handling units
SystemairCAD release notes
We are constantly developing SystemairCAD in order to include the most recent features and improve the user-friendlyness.
Four updates are released each year - please find the release notes for each release below
DBM DLL
DBM DLL update to fix 1 and 2 row cooling coil issues pointed out by Eurovent.
Heat exchangers
It is now possible to disable the heat exchanger summer calculations. We implemented a second calculation loop to provide the required Eurovent data for the EEC summer calculation. This way, we can meet Eurovent requirements but not take the heat recovery into account when we calculate the dimensioning data in summer mode.
Heating coil data
The heating coil data was not updated in the heating coil dialogue. The “fluid flow” values and “fluid temperature out” are now updated correctly. The pressure drop turned up 0 pa in the printout overview; that is also corrected.
Fan curves – Fan curves are now available in both the fan dialog and the printout.
Heating coil winter and summer mode – Summer mode for the heating coil activated to allow dehumidification.
Air flow charts – Air flow charts updated to more precisely reflect maximum airflow for different unit types.
EC bluefin aluminium – New EC bluefin fan with aluminum impeller implemented for the French and American markets.
Filter drip tray with drain – New filter with drip tray and drain available for several markets.
Side by Side units for the Spanish markets – The Spanish factory can now produce and deliver Side by Side units
Eurovent winter / summer label calculation
OACF and EATR in the printout
VDI6022 Certified
Geniox Core Without control system
Geniox GO top connected
The rotor section in Geniox big size (35-44) is reduced to 800 mm
Counterflow heat exchanger type B (low pressure drop) is introduced in Side by side units.
Duct coil’s are implemented in Geniox-1
Geniox-1 number of dampers in sizes 27, 29 and 31.
Casing text for air leakage updated.
Dll updates
Bug fix for Unit current in combination with heat pump
Shipping information updated to fit the unit configuration.
Side By Side units.
New Defrost free Heat pump.
Access control system 5.x
EC Bluefin (Aluminum) fans added in Geniox Core
CG3500 cylinder filter added.
Control system flowchart is mirrored when unit is mirrored.
Update the EuroventEfficiencyClass.dll to version 3 (ECC summer Rev 4.1)
Hoval Caser DLL update to 2.0.8.0
Update Recuperator DLL version 1_0_8_0 / Heart A2.3.2.0
Update Recutech rSelect to use Csharp version of DLL 7.2.0.10
Update Ziehl Fanselect DLL 1.01 (1.24.02.12)
DBM Coil DLL updated.
This release contains the following fixes:
SystemairCAD crashes due to problems with new graphic drivers is fixed.
Lautner DLL version 11_34 is updated to Recutech version 12_1.
EuroventEfficiencyClass.dll is updated to the latest version.
EU Declaration of conformity layout is updated to new Systemair layout.
Geniox size 35 to 44 will no longer split coils above 10 rows.
Eco rotary heat exchanger is also available for size 31 now.
This Hotfix contain the following fixes:
Klingenburg DLL updated to revision 5.0.12 (Old version stopped working 1st of December)
Lautner DLL version 11_34 is updated with new expiration date (Alo version will stop working 1st of January 2024)
This Hotfix contain the following fixes:
Program crashes using imperial units and low temperatures.
Program stability improved when using imperial units.
Coil calculation fails in alternative working points.
Specification text in Swedish for Geniox Go.
Updated in the latest SystemairCAD includes:
Hygienic accessories added for ECO heat exchangers
Electric diagram code appearing unintended fixed
Power supply information corrected for 230V Geniox Core control system
Eco rotor heat exchanger removed as a selection in combination with heat pump.
SideBySide units’ selection removed as it is not released.
Updated in the latest SystemairCAD includes:
ECO version of rotary heat exchanger and cross flow heat exchanger
Changes to control system dialog and printout
Impeller material is added to the text about the fan type
DX cooling coil for Heat Pump use
Updated in the latest SystemairCAD includes:
Both Rigid and flexible duct connections that had disappeared in J1 release are selected correct again.
In the printout for Rotary heat exchangers the capacity in summer mode is again in kW and not displayed in W.
In the printout for Heat pumps the capacity in summer mode is again named correct as capacity.
Updated in the latest SystemairCAD includes:
Printout selection is changed.
Order of information in the printout changed, control system moved ahead in the printout.
Recuperator DLL for cross flow heat exchangers is updated.
Updated in the latest SystemairCAD includes:
EC Bluefin fan GR40I-ZID.DG.CR 2,5 kW is removed for Geniox-2 and Geniox Go
Link to release notes are corrected.
Updated in the latest SystemairCAD includes:
Item numbers for Counterflow heat exchanger updated.
Missing settings for changeover coils added.
Updated in the latest SystemairCAD includes:
In Geniox-1 the Eco counterflow heat exchanger can now be selected. It will change the Counterflow heat exchanger to one unit size gigger.
A new combined filter function is added, so a panel filter can now be selected in the bag filter function. This will make the combined bag and panel filter 100 mm shorter than if it is added as 2 separate functions.
Duct Dampers available in Geniox-1 also for Size 22 to 31
DX changeover coils is added.
New louvers that is clicked on to the duct connections are added for all Geniox types in size 10 to 20. (It was already in Geniox Core from last release)
Updated table layout in the short technical description.
Internal cooling coils in Geniox Core outdoor models will no longer select the 300 mm inspection before if there is no internal heating coil.
SFP values for each fan on the result page
Damper pressure drop corrected for mixing dampers.
The drain pipe is shown on drawings for coils with drip tray
Requested torque and number of shafts is added for dampers in printout.
A new filter wall is added so the door handles can be in the front of the filter wall. That will for many units turn the door around.
Printout for the new “Access control system 2.0” is rearranged so there is a better flow in the printout.
Max coils are removed in Geniox-1
Coil face velocity is corrected. Heating and cooling coils with same face area will now give same face velocity.
EU Declaration of conformity and new UKCA declaration is update to new Systemair layout.
The DBM coil DLL is updated.
Hoval DLL for some of the rotary heat exchangers is updated.
Recuperator DLL for cross flow heat exchangers is updated.
Duct sound attenuators available in Geniox-1 also for Size 22 to 31
Printout for changeover coils with Ethylene or Propylene corrected (Percentage ethylene/propylene in Heating)
Coil optimization could sometime result in wrong coil if fin distance of fin surface material was fixed.
Air side nominations in control system flowchart in printout is corrected for left airflow units with new Access control system 2.0
Updated in the latest SystemairCAD includes:
New Access control system selection and printout
Unit data and Baseframe data split in to 2 separate dialog boxes
Hygienic compliance checks corrected
Geniox size 35 to 44, fan sections lengths reduced
New type of duct Sound attenuators
Recutech DLL for calculating counter flow heat exchangers updated
EBM-RadiPac aluminum Fans removed from Geniox-1, Geniox Core and Geniox On
New type of duct connected inlet and outlet louvers added in Geniox Core
Ziehl EC Blue aluminum Fans added to Geniox Core for the French market
Weights for Geniox Core with rotary heat exchangers and in 3 sections corrected
Shipping section weights is corrected for units with Gable steel roof
The option to select PM plug fans removed from Geniox-2
Cooling stock coils for Geniox Go
Weights for Geniox Go units corrected
Updated in the latest SystemairCAD includes:
Temperature increases in the fan section
Short technical description
Water change over coils
Geniox big size, fan sections reduced
Sound attenuators
0,5 m/s electrical duct coils
Heat pump summer calculation is corrected so we don’t get error for condensing temperature in some cases.
Ziehl fan DLL update
Klingenburg DLL for calculation some rotary heat exchangers in big size Geniox is updated.
Some rotary heat exchangers of Condensation type have been changed from Lautner to Hoval
Geniox Core size 10-18 efficiency type D
Geniox-1 size 10-18 efficiency type D (Units delivered from Danish and Dutch factories)
Geniox-2 size 10-18 efficiency type C and D (Units delivered from Lithuanian factory)
Geniox-Go size 10-18 efficiency type standard
Geniox size 35, 35L, 38L, 41, 41L efficiency type B, C and D
Some rotary heat exchangers of Condensation type have been changed from Lautner to Klingenburg
Geniox size 38, 44, 44L efficiency type B, C and D
Lautner DLL datafile is updated so it will work after 1/7-2022
A new “Coil optimization” function is added. The user can choose to optimize for eighter “Low pressure drop” or “Price”. If optimization is selected the program will calculate alle available coil types and fin spacings and select the coil with the lowest price or pressure drop. The preferred optimization can be set in the default values page.
> Watch tutorial on YouTube
We have updated the calculation of Heat pumps. In cooling mode, we correct the amount of condensation we get, so calculation corresponds to laboratory test. The lowest cooling temperatures that can be reached is up to ½ a degree higher than in old calculation, depending on configuration.
Internal mounted electric heaters are changed so we now have 2 versions, the standard version that works with airspeed above 1,5 m/s and a low air speed version that works with airspeed above 0,5 m/s. Low air speed version can be selected manually or it will automatic be selected if calculation shows airspeeds below 1,5 m/s in dimensioning air flow or alternative working points.
The door in front of the electric heaters is changed so there will always be a 100 mm panel for connections in the bottom of the electric heater section.
For the markets in UK and Ireland we have added a Gas burner function for Geniox units.
DBM coil DLL is updated. This will result in added rows for most run around coil calculations.
Ziehl Abegg DLL for calculation fans is updated.
Klingenburg DLL for calculation rotary heat exchanges in some of the big unit sizes is updated.
Recutech DLL for calculating counterflow heat exchangers is updated.
A new door retainer is added as a selection in the unit data dialog. It is only available for outdoor units. You must select the door retainer in the unit data dialog, it is not selected on outdoor units by default. The door retainer is a service/safety feature that will prevent the door from closing, because of wind or other factors during service.
The new release also features duct dampers for Geniox-1, in unit size 10 to 20. The dampers are by default in full size, corresponding the duct connection size of the unit. Alternative damper sizes can be selected in the damper dialog.
It is now possible to calculate the total filtration in the supply air accordance with ISO16890, if you have more than one filtration stage in the supply air flow.
Geniox Core indoor units with rotary heat exchangers are now available in 3 sections. Right click in the background and select (1) Casing and (2) Divide sections.
By selecting “A316-1:20 sloped” drip trays in the cooling coil, plate heat exchanger and the run around coil dialog the system will configure the unit with a 3-way sloped drip tray according to the HTM hygienic standard (UK). The droplet eliminator is removeable through the inspection door for cleaning. It is possible to adjust the length of the inspection section after the coil. Double click the inspection section and select the required length.
The missing parts of the Specification text printout in German is added again.
Item numbers for HTM drip trays for cross flow heat exchangers is corrected.
Hygienic kit for Geniox size 35 to 44 is added so correct item numbers is selected.
Control system printout in Finish language is fix so correct characters are displayed.
Default filter in Geniox Core size 10 and 11 is now selected correct.
Geniox Core with 30 mm duct connections will now have correct item numbers for duct attenuators.
