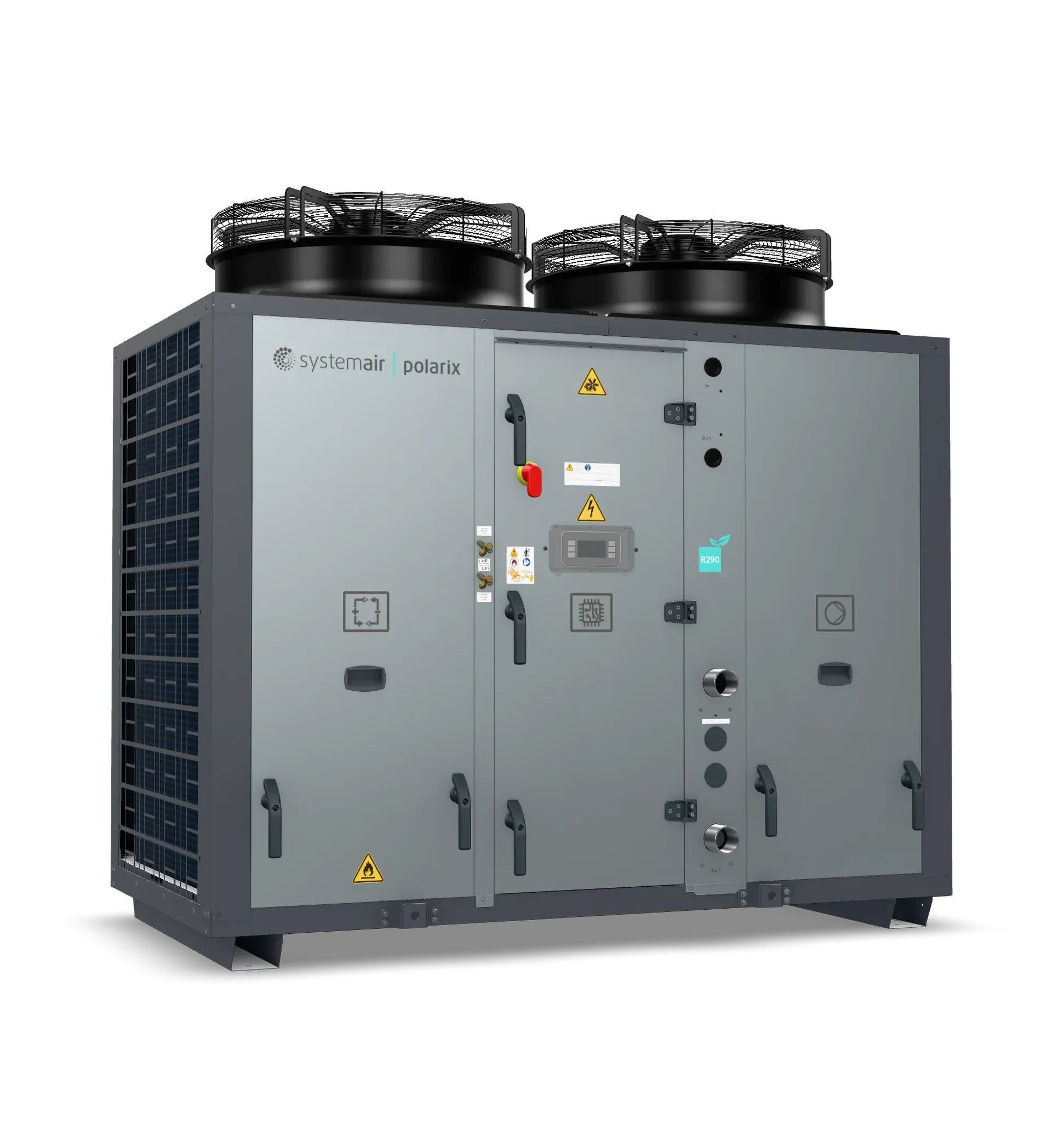

POLARIX Air Cooled Heat Pumps
50-80 kW • R290 • One of the most eco-friendly heat pumps on the market
Super eco-friendly
Very high efficiency
Extended operating limits
Small footprint
Quiet in operation
Easy maintenance
Remotely controllable with AC CLOUD
Precise and complete selection on AC SELECT
100% factory tested
Almost ZERO environmental impact
Minimising your unit's impact on the environment is even easier with Polarix. This heat pump operates with the natural R290 (propane) refrigerant, offering a green alternative for any project. It has the huge double benefit of increasing the efficiency and the performance of the unit and limiting the impact on the environment thanks to one of the lowest GWP values → Only 3!
Very high efficiency
In addition to having almost no impact on the environment, the natural R290 refrigerant also significantly improves the energy efficiency of the unit. Compared to a standard unit using the R410A refrigerant, Polarix offers up to 7% higher SCOP (Seasonal Coefficient of Performance). This means significant energy savings over the years.
Wide operating limits
Extended operating limits ensure that your Polarix units will work perfectly well no matter how harsh the weather or climate. For excellent performance all year round, this super eco-friendly unit operates in temperatures from -20°C to +53°C, providing water temperatures from -15°C to +70°C.
Safety-first design
Like all Systemair products, Polarix units are designed to be as safe as they are easy to install and operate. They come with an innovative safety system. If Propane (R290) is detected by the leak detector, the unit stops running immediately and gas is vented to the outside.
)
The future is natural
Polarix – a perfect combination of new green technology and Systemair’s existing SYSAQUA product range, known for reliability and high performance.
Polarix R290 heat pumps offer high efficiency with reduced CO2 emissions and minimal environmental impact. Using natural refrigerant R290, with GWP 3, makes them a truly sustainable solution
Sustainability in every aspect
The Systemair Polarix R290 Air-to-Water Heat Pump is a premium solution and a green alternative for any project. All components have been developed with safety and sustainability in mind.
For even higher efficiency, Polarix can also be equipped with a variable speed pump that automatically adjusts its speed according to the required capacity.
)
Variable speed pump (option)
A variable speed pump can be added to the unit for even greater energy savings
Electronic expansion valve
This reliable and high performance valve minimizes overheating of the evaporator. It is directly managed by the control system.
Condenser
Highly optimised heat exchanger design enables a refrigerant charge reduction. Less than 5.0 kg of R290 for the sizes 50-60
Fan speed control
All units are equipped with EC fan technology
Removable panels
Great accessibility to internal components for service operations
Molecular leakage detector
Immunity to poisoning, long service life (+15 years without calibration)
Controller
This new high-standard control system provides excellent pressure control, as well as global and optimised unit management
Scroll Compressors
Uses dual scroll compressors, optimised for R290 and rubber mounted for reduced noise and vibration
Lifting lugs
Safe transport to the installation site
Safety ventilation system
If Propane (R290) is detected by the leak detector the unit stops running immediately. For size 50, a self-contained ventilation system ensures safety, while sizes 60 to 80 use the topmounted EC fans for safe refrigerant dispersion.
)
)
Caring about the environment doesn’t mean sacrificing performance
On the contrary! Our Polarix Heat Pump operates with natural R290 (propane) refrigerant, offering a green alternative for any project. Using R290 not only increases the efficiency and the performance of the Polarix unit, it limits the impact on the environment thanks to one of the lowest GWP values. This means significant energy savings over the years.
)
Enter the era of connected units
AC Cloud
Systemair’s aim is to offer more than reliable products. From that perspective, we created AC CLOUD. With this new software, you can take full control of your units from anywhere, at any time.
To go even further, AC CLOUD also positively impacts your energy consumption and maintenance, allowing you to make significant financial savings: Indeed, over 15 years, 85% of the real cost of a unit is represented by these two components.
)
