ADQ-250-SW
ADQ Basic Diffusers
Ceiling diffuser with fixed deflectors for air supply and extraction in a range of settings
Ceiling installation
Long impact
High induction
Air supply and extraction
ADQ-250-SW#215606
Air Supply and Extraction
The ADQ ceiling diffuser is designed for both air supply and extraction.
Mounting

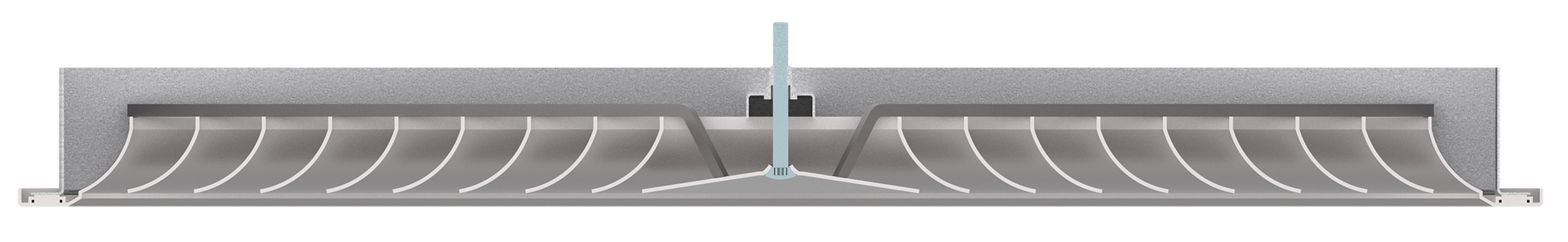

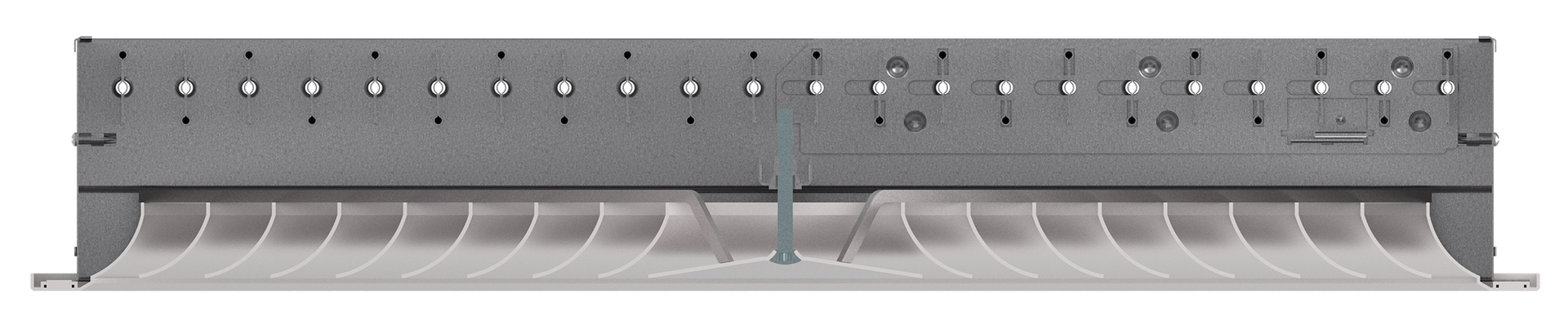

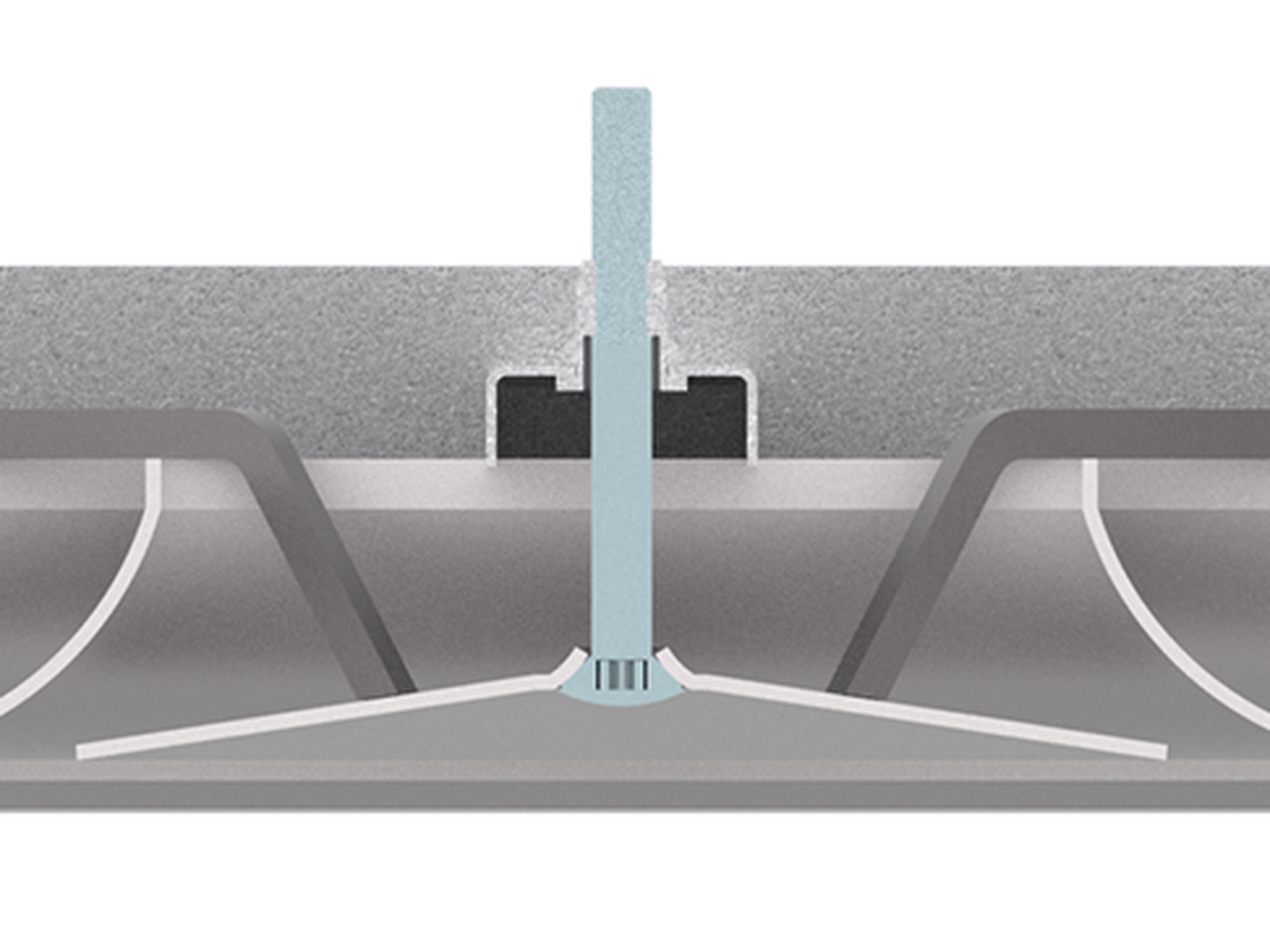

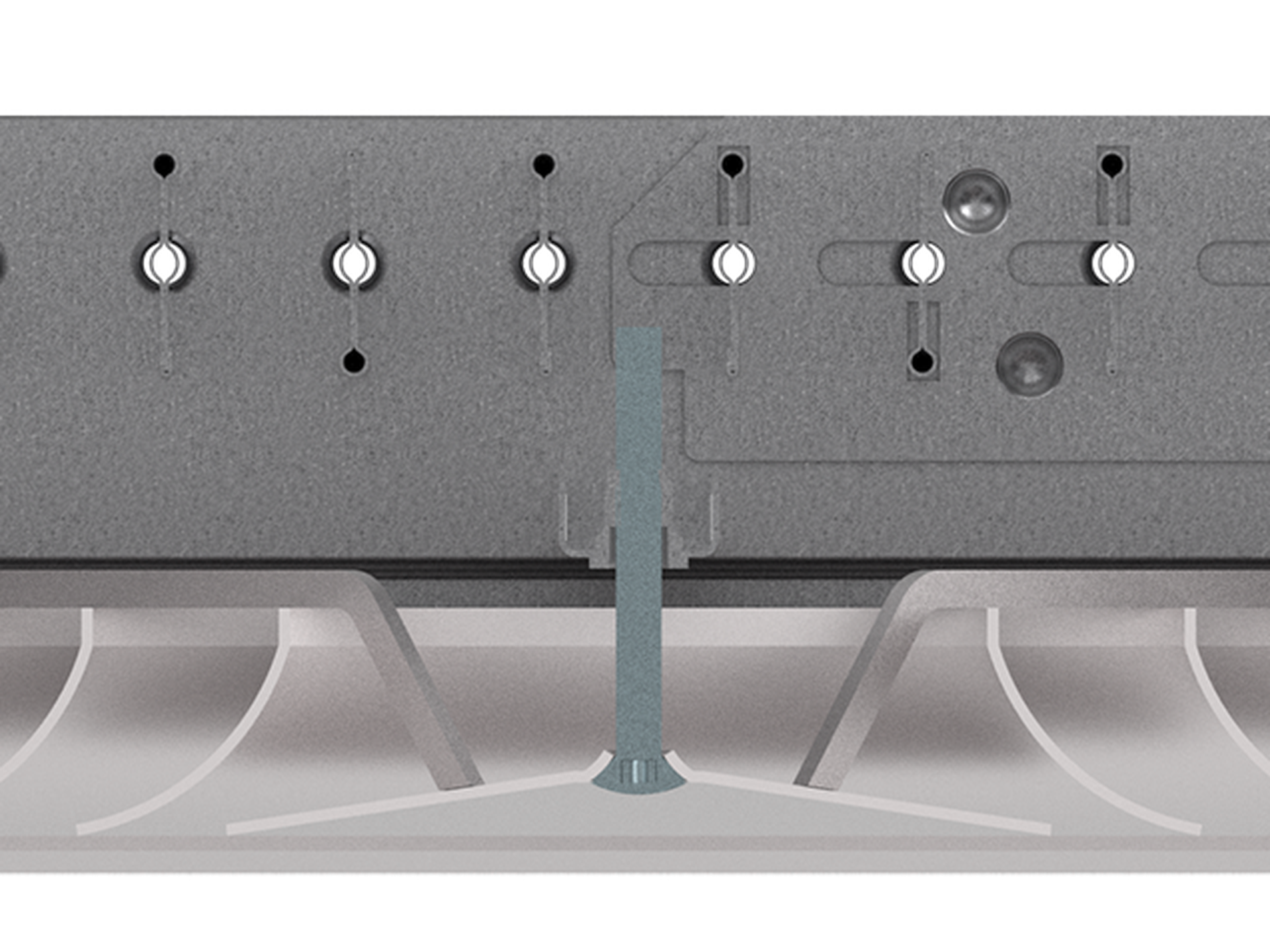

The diffuser is designed for plenum installation and has a screw in the front face.
A Range of Applications
The diffuser is commonly installed in offices, shops and other commercial premises up to 4m room height.
ADQ is a basic diffuser designed for ceiling installation and provides both air supply and exhaust. The diffuser is designed for plenum installation and has a screw in the front face. The diffuser is commonly installed in offices, shops and other commercial premises up to 4m room height.
The ADQ front face is manufactured from aluminium and is painted in signal RAL9003 or anodised aluminium colour. The ADQ is available in six different sizes, from 250 to 625mm. The ADQ has a 600mm outside boundary size, and the reduced effective area is combined with a diffuser ADQ of sizes 250 to 500 and galvanised steel plate. This plate is painted in the same colour as the diffuser fixed in the hole.
Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
Tech specs
Technical Data
Article name
ADQ-250-SW
Article number
#215606
Default | |||
|---|---|---|---|
| Nominal data | |||
| Air flow(s) | 105; 144; 176 | m³/h | |
| Duct connection type | Circular | ||
| Pressure drop | 5; 10; 15 | Pa | |
| Sound power level | 24; 29; 34 | dB(A) | |
| Sound pressure level (10 m² room absorbtion area) | 20; 25; 30 | dB(A) | |
| Dimensions and weights | |||
| Weight | 0.6 | kg | |
Specification
Square ceiling diffuser with fixed louver face design to distribute the air horizontally in four different directions. For supply and extract air applications in comfort zones. Installation in all types of suspended ceilings.The diffuser is made from of aluminum. It is available as standard in signal white (RAL9003). Alternatively, it can be painted to RAL9006 (white aluminum). Other RAL colors are available on request.Mounted on a central cross assembly using a central screw.Available sizes: 250, 300, 400, 500, 600, 625 mmAlso available in various sizes for 600 mm grid ceilings: 600/250, 600/300, 600/400, 600/500.Supply air temperature difference: - 10 to + 10 KOptional accessories:– Plenum box in various configurations– Mounting frame– Opposed blade damper - Size: 250- Surface finish: Signal white (RAL9003)- Spigot size: 160- Connection position: Horizontal connection (from the side)- Insulation: Without insulation
