A versatile multi-nozzle diffuser for flexible air supply
Versatile use
Excellent air induction
Quiet operation
Compact design
The CAP-CT is a flexible multi-nozzle diffuser suitable for air supply in comfort ventilation systems for offices, shops, medical rooms and school classrooms.
The CAP-CT combines high airflow capacity with a quiet operation. This makes it suitable for use in environments where unobtrusive ventilation is required.

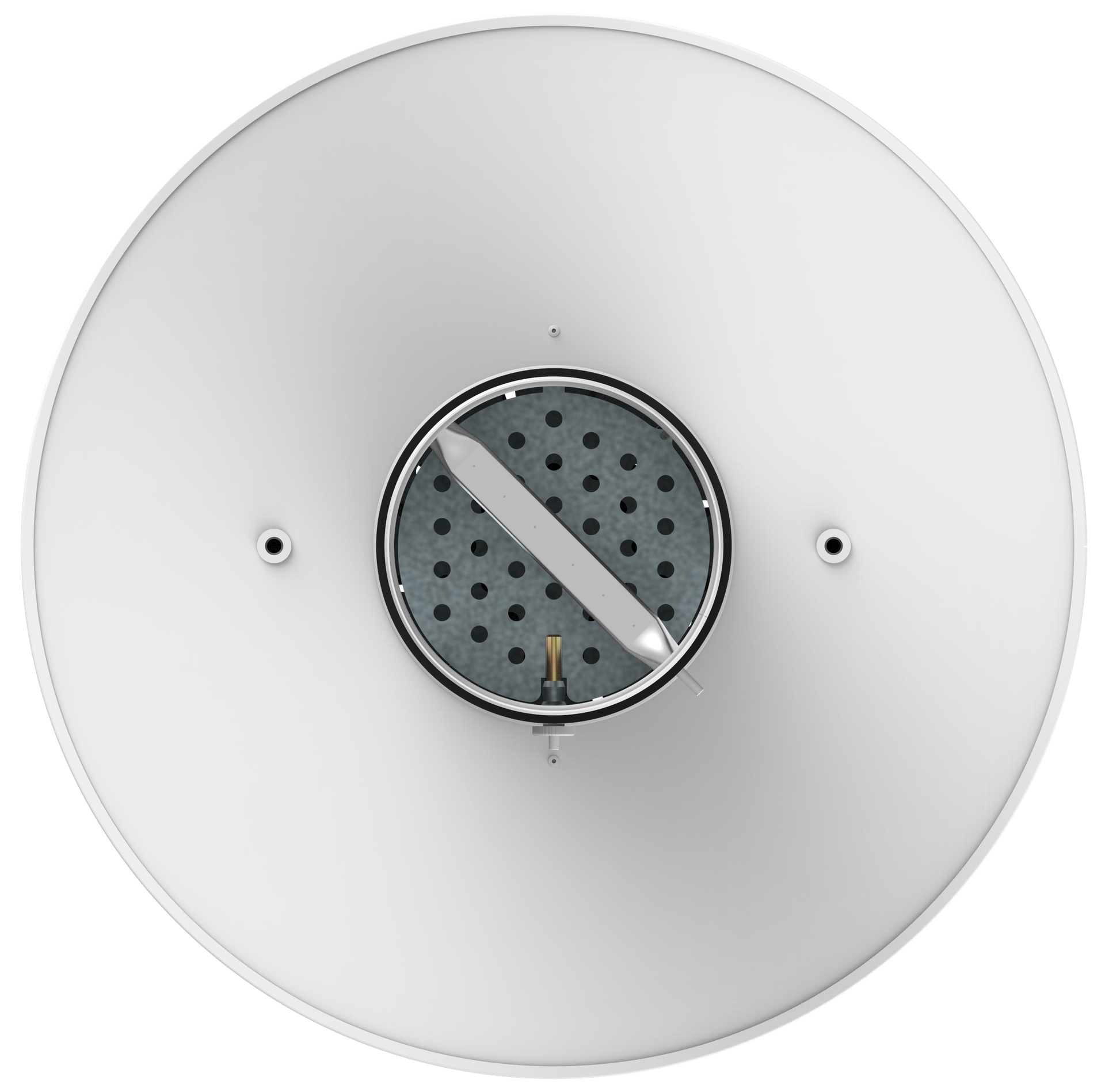

The diffuser has a compact design with adjustable damper and flow measurement probes for supply and extraction.
The CAP-CT is a compact, multi-nozzle diffuser with quiet operation allowing for use in a variety of public settings. Primarily designed for air supply in comfort ventilation systems for offices, shops, medical rooms and school classrooms, it can be installed in an open space under the ceiling. Superior air induction and mixing with small air flow volumes make it suitable for VAV ventilation systems.

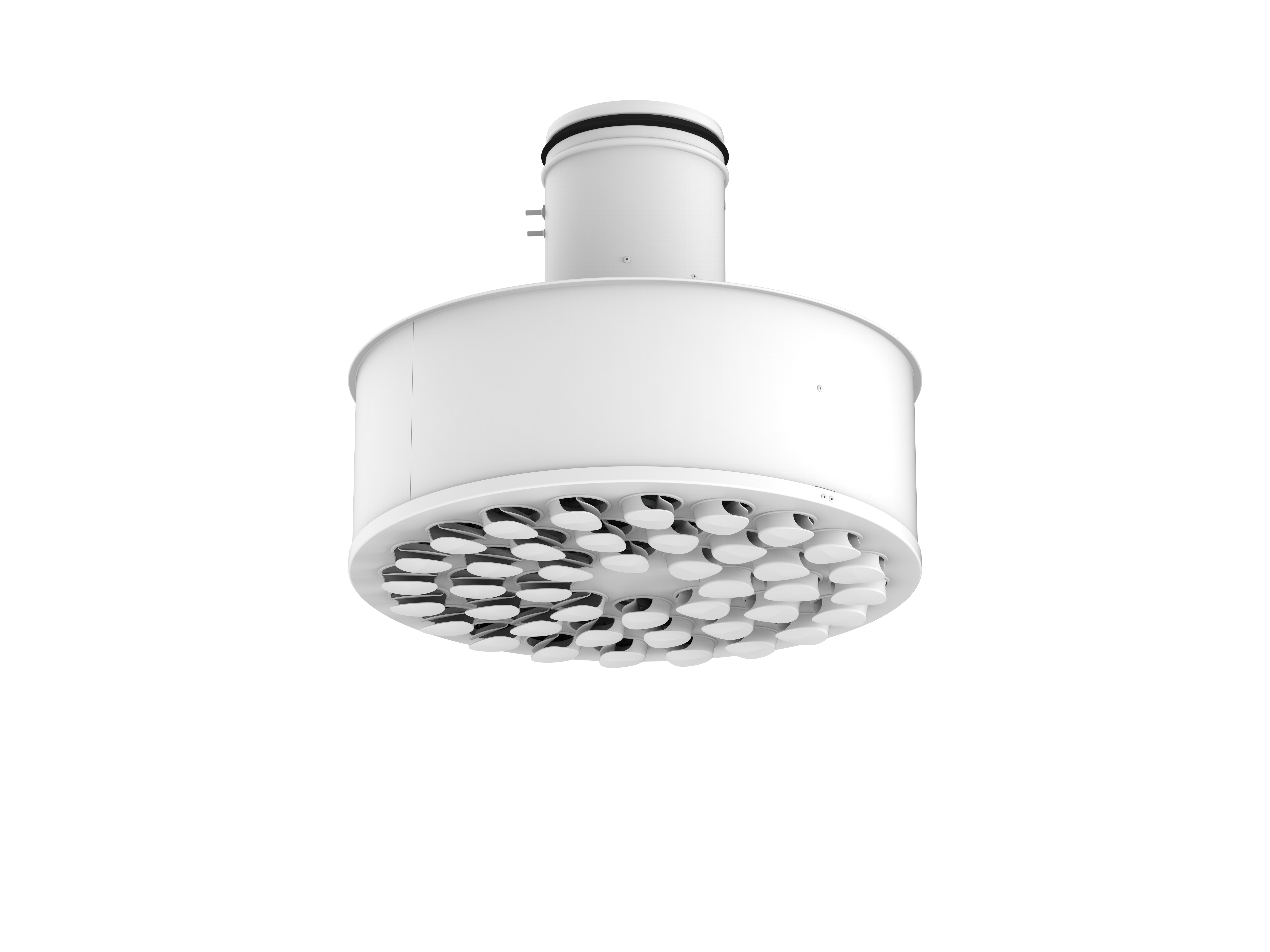

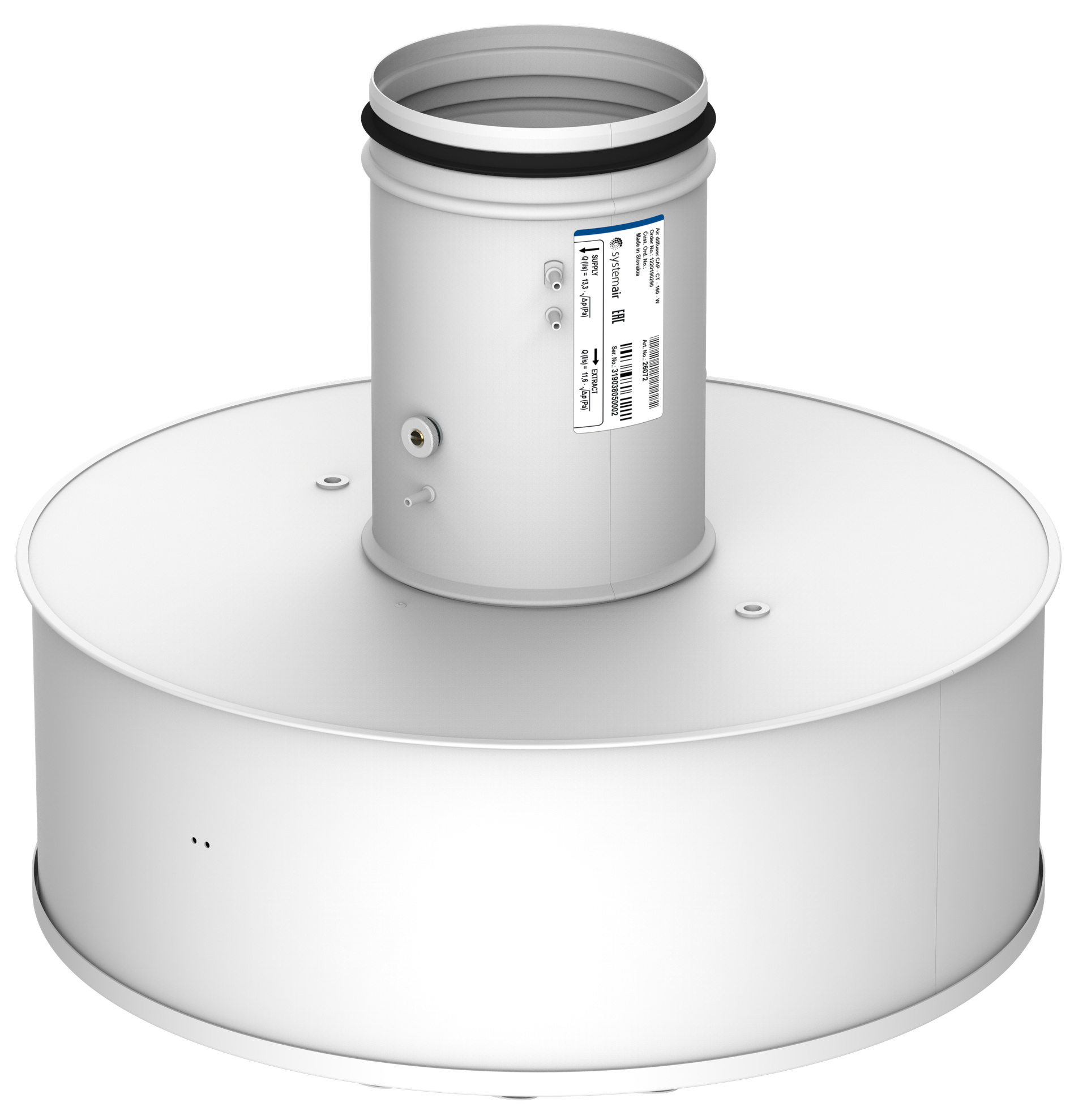

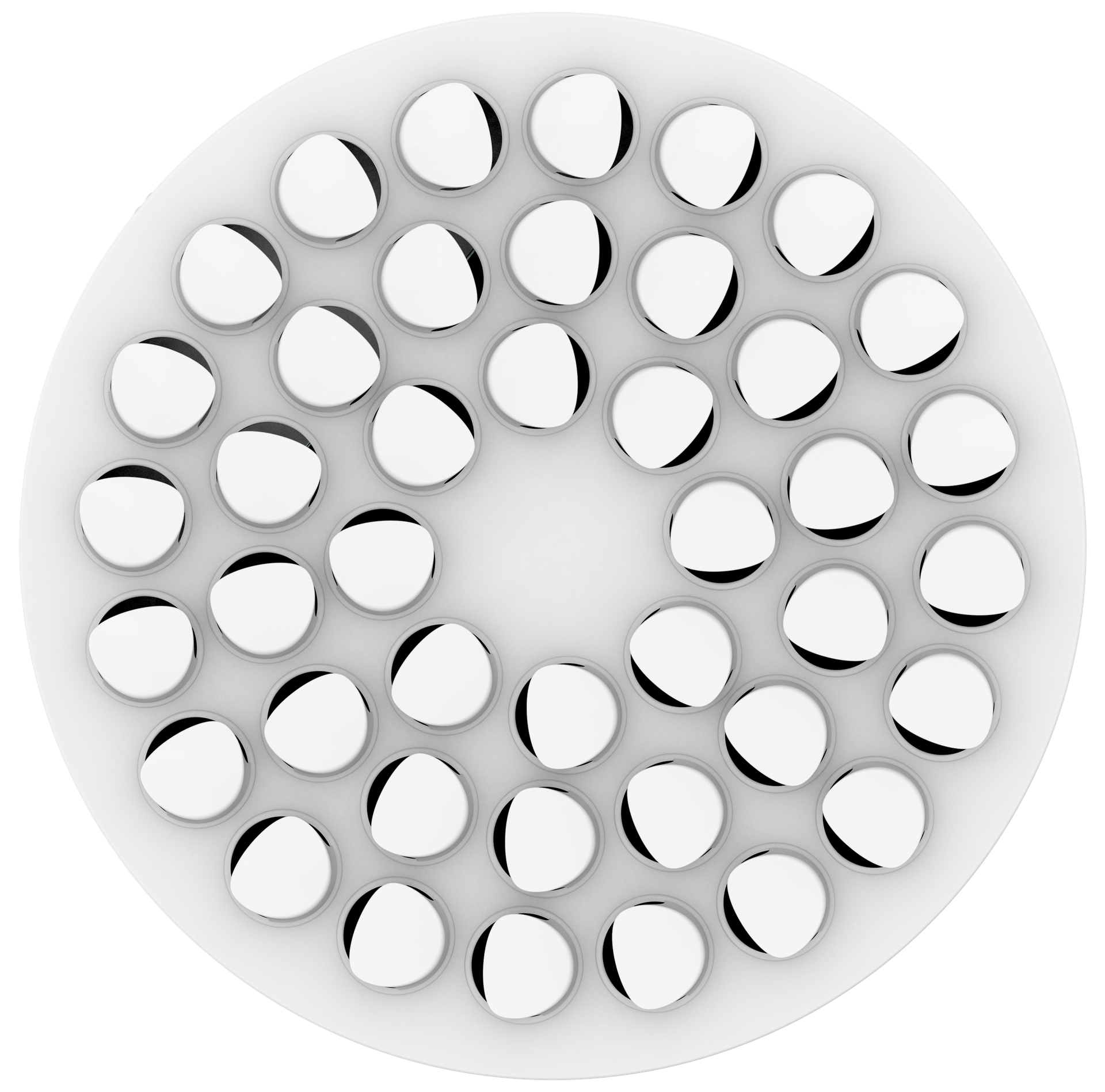

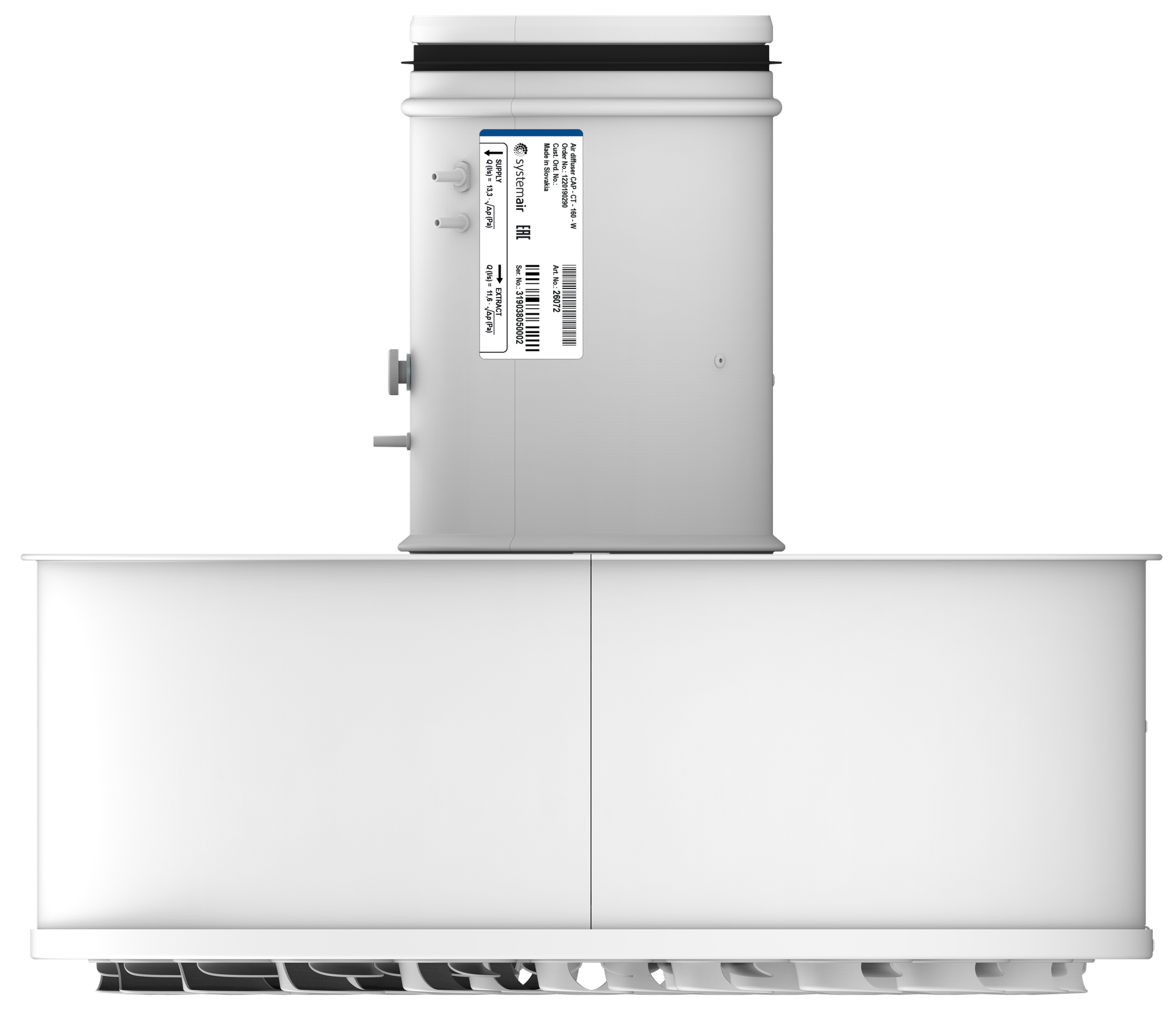

The diffuser has a compact design in galvanised steel. It is composed of a plenum box with a vertically from top oriented rubber gasket sealed circular connection and a diffuser plate with polymer nozzles. The nozzles allow for 360° rotation in the plane of the diffuser plate. This allows for the creation of the desired air discharge pattern. All of these parts are accessible from the outside allowing for measurement and adjustment without dismantling the diffuser. Two thread nuts in the upper part of the plenum box allow for straightforward installation on the suspended thread bar. Different sizes are available.
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
Default | |||
---|---|---|---|
Nominal data | |||
Air flow(s) | 101; 126; 152 | m³/h | |
Duct connection type | Circular | ||
Pressure drop | 18; 28; 40 | Pa | |
Sound power level | 24; 29; 34 | dB(A) | |
Sound pressure level (10 m² room absorbtion area) | 20; 25; 30 | dB(A) | |
Dimensions and weights | |||
Weight | 2.9 | kg |
Round nozzle outlet for visible mounting with upward-facing connection. It is designed mainly for supply air, but also can be used for extract air. The diffuser consists of a junction box with an upward-facing round lip-sealed connection, an externally adjustable regulating element, measuring points for supply and exhaust air, and a front plate with 360-degree rotatable nozzles.DesignThe housing is made of galvanized steel, which is powder-coated in RAL9003 (signal white) as standard. The polymeric nozzles are also designed in RAL9003. It is available with the following connection diameters: Ø 100, Ø 125, Ø 160, Ø 200, Ø 250, Ø 315, and Ø 400 mm.The diffuser features:* Many adjustable air outlet patterns* Excellent air induction and distribution even with small air volumes, suitable for ventilation with variable air flow rates.* High air flow rate with low noise levels and moderate pressure loss* Compact design with regulating element and measuring points for supply and exhaust air* Adjusting the nozzles does not change the pressure loss or noise level - Size: 100- Discharge: Radial air flow
