CAP-SD-1-1000-SW

CAP-SD Nozzle Diffusers

Adjustable diffuser with quiet operation suitable for Industrial and public spaces

  • Quiet operation

  • Versatile

  • Efficient air induction

  • Compact design


CAP-SD-1-1000-SW#246677

Effective Ventilation:

The CAP-SD multi-nozzle diffuser provides effective ventilation in industrial or public spaces with exposed ventilation ducts.


Quiet Operation

The diffuser unit is suitable for installation in an environment where noise levels need to be controlled.


Compact Design

The CAP-SD is made from galvanised steel and has a compact, ergonomic design.

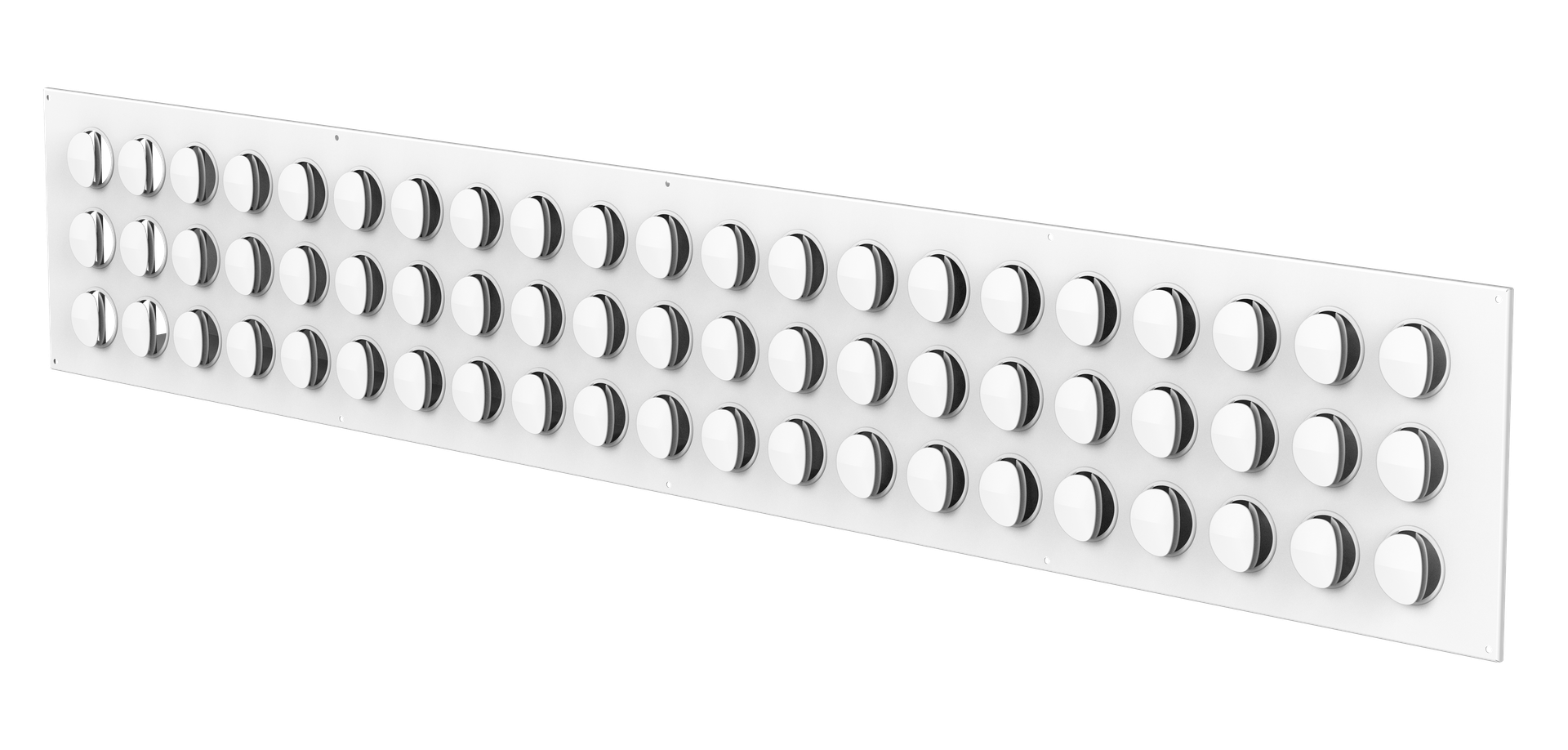

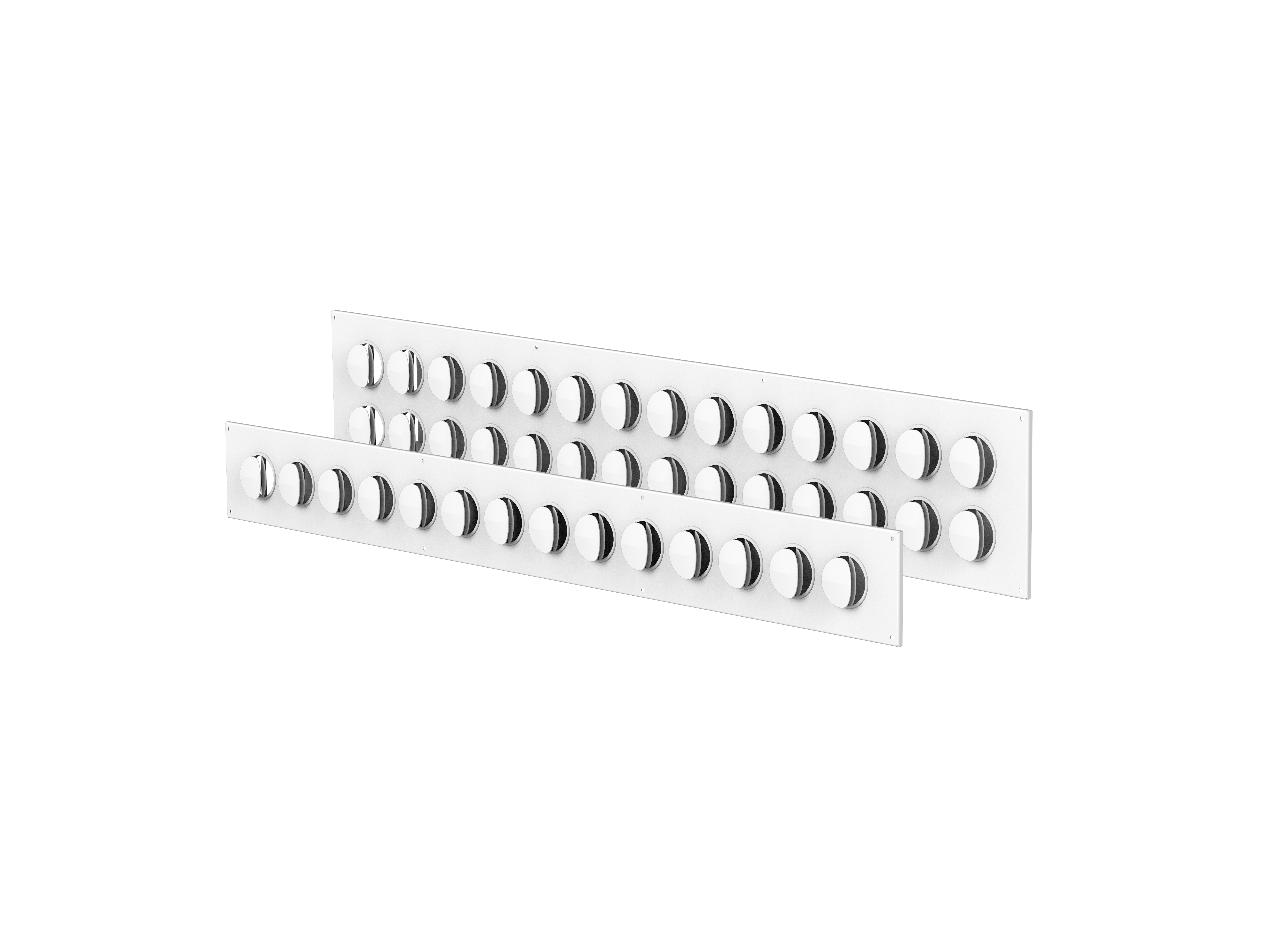

The CAP-SD multi-nozzle diffuser is an effective, efficient and versatile unit for installation on the rectangular ventilation duct. Mainly intended for air supply, it may also be used for air extraction. Made from galvanised steel, it is composed of a front diffuser plate with polymer nozzles and a rear perforated air flow equalising box. Available in different sizes, the CAP-SD is designed for ventilation in industrial or public spaces with exposed ventilation ducts. The recommended elevation for installation of CAP-SD is up to 6m.

The nozzles can be rotated by 360° in the plane of the diffuser plate. Correctly adjusting the nozzles results in the desired air discharge pattern. The diffuser can be attached to the duct by screws. The standard surface finish for the diffuser powder paint is in signal white colour, with other colour finishes available upon request.



Your order, your style!

Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision

Tech specs

Technical Data

Article name
CAP-SD-1-1000-SW
Article number
#246677
Nominal data
Air flow(s)71; 98; 124m³/h
Duct connection typeRectangular
Pressure drop3; 5; 8Pa
Sound power level24; 29; 34dB(A)
Sound pressure level (10 m² room absorbtion area)20; 25; 30dB(A)
Dimensions and weights
Weight1.3kg

Performance

Flow Pattern

Dimensions

Specification

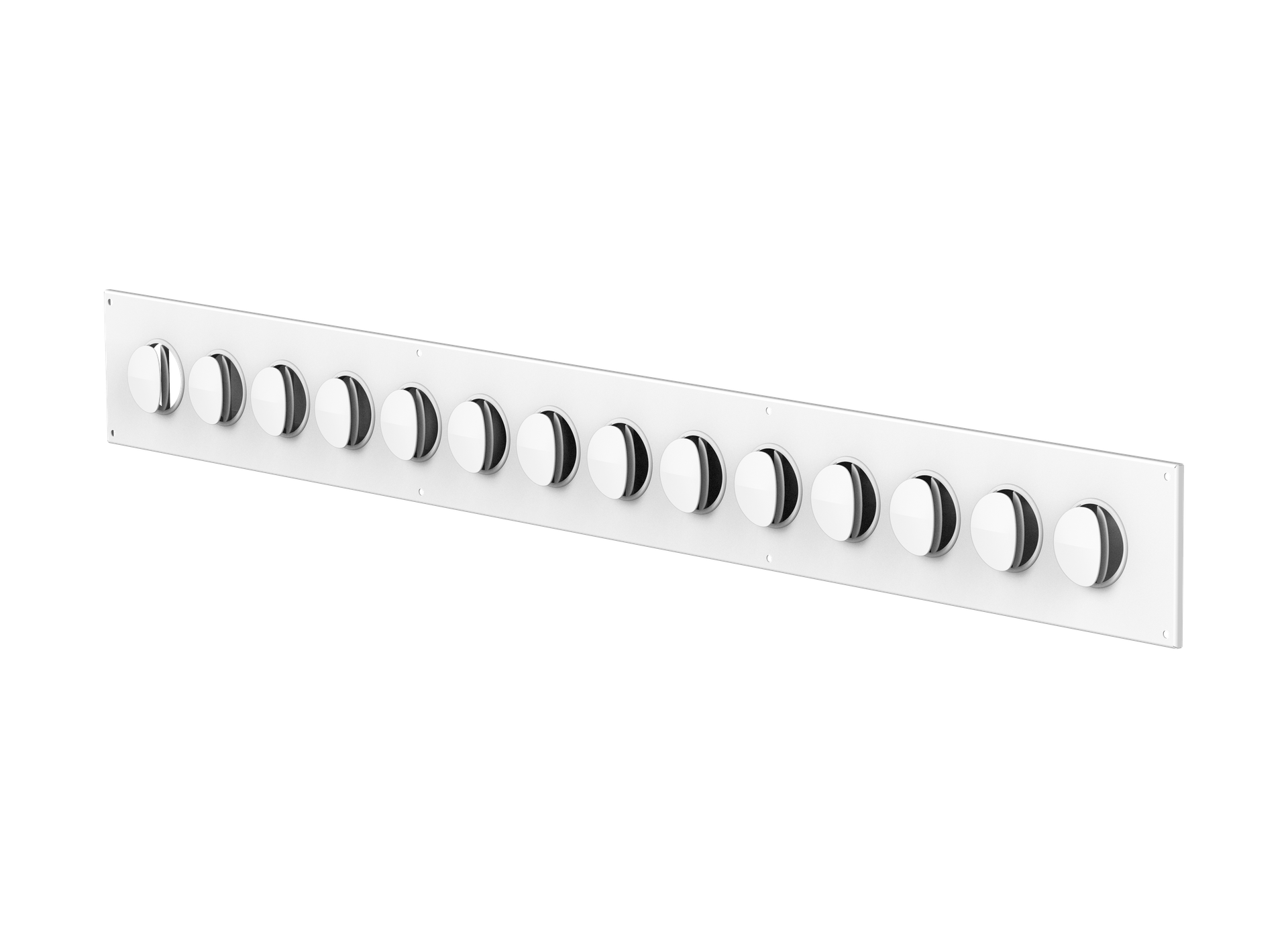

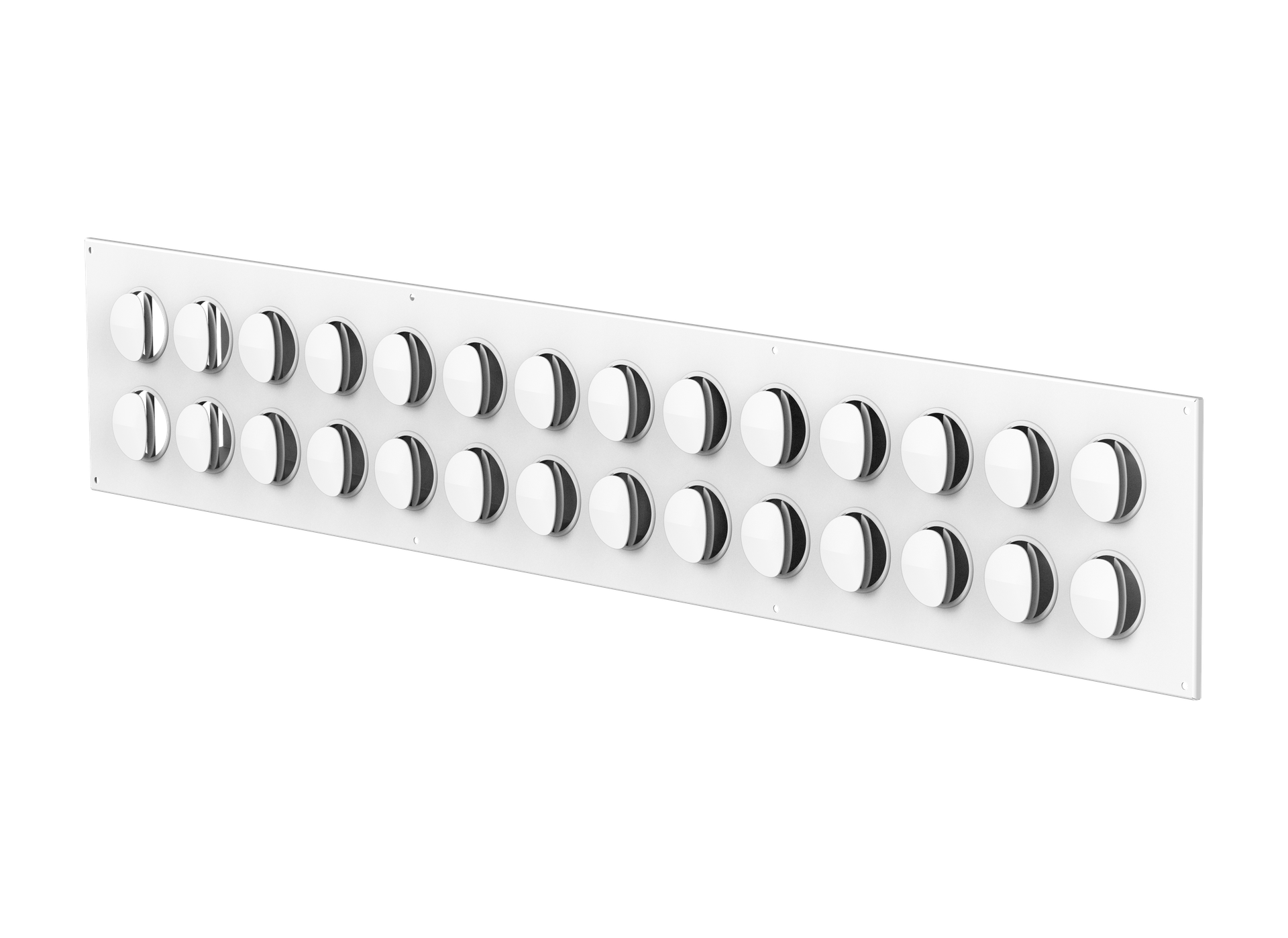

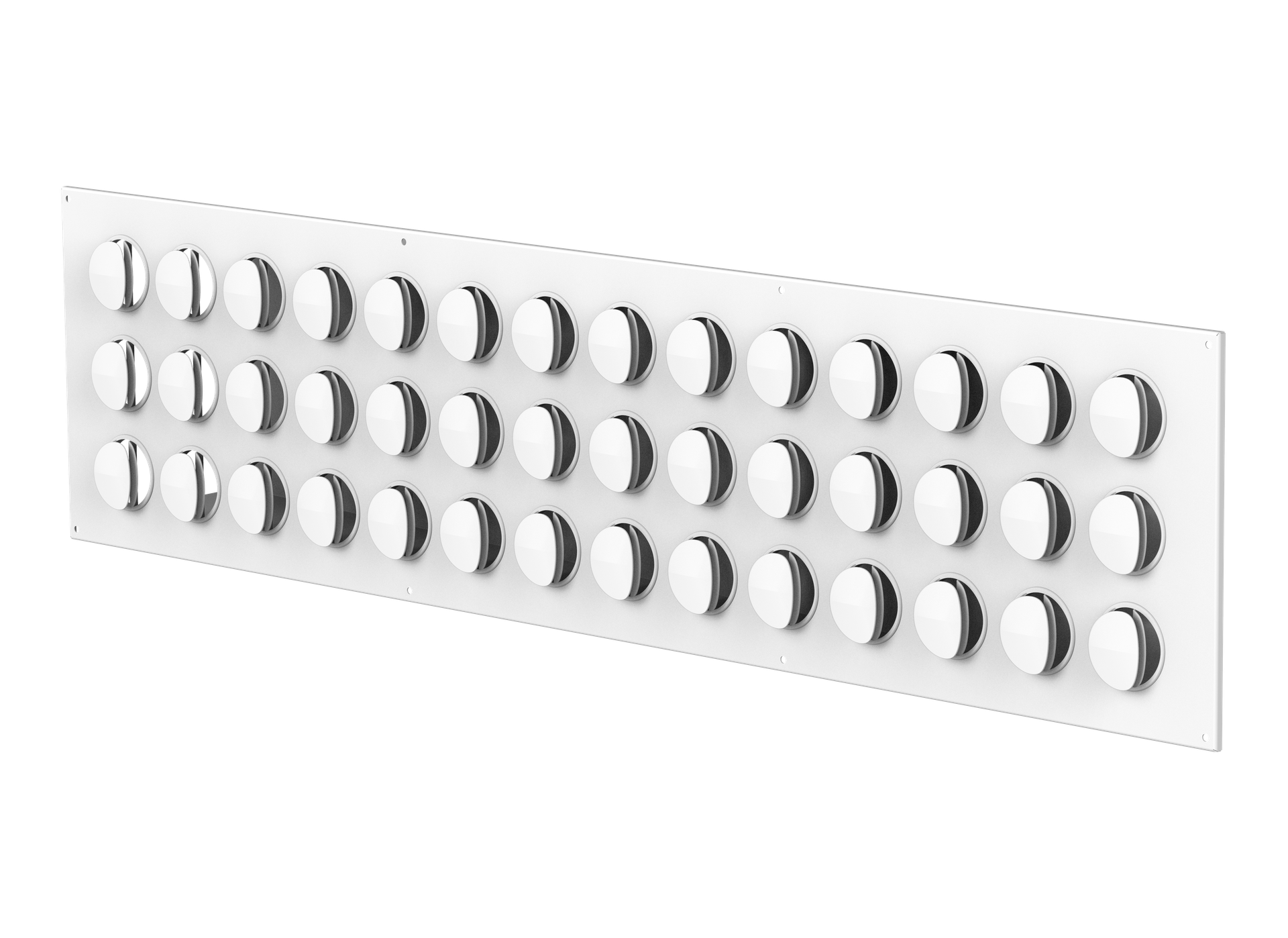

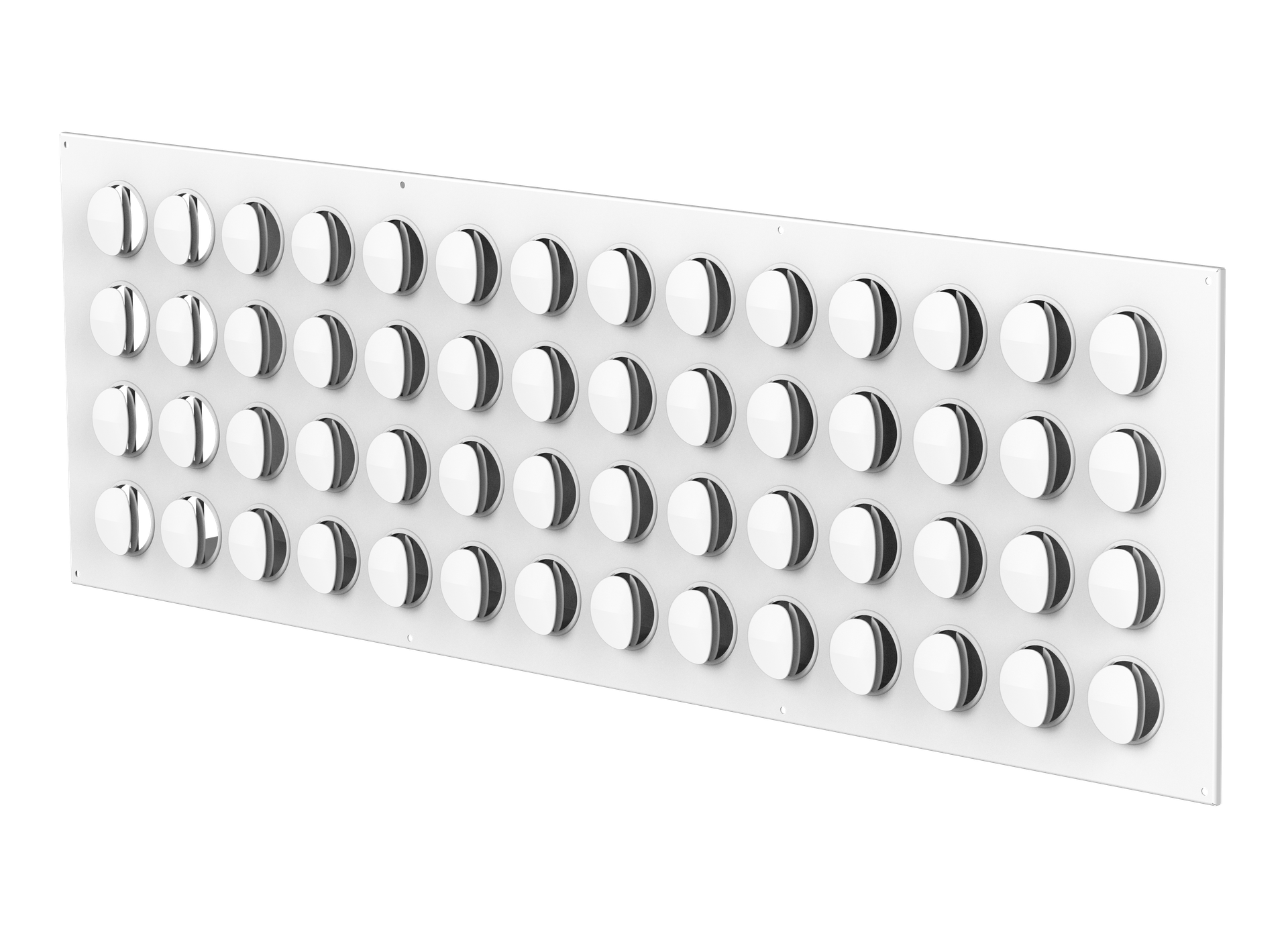

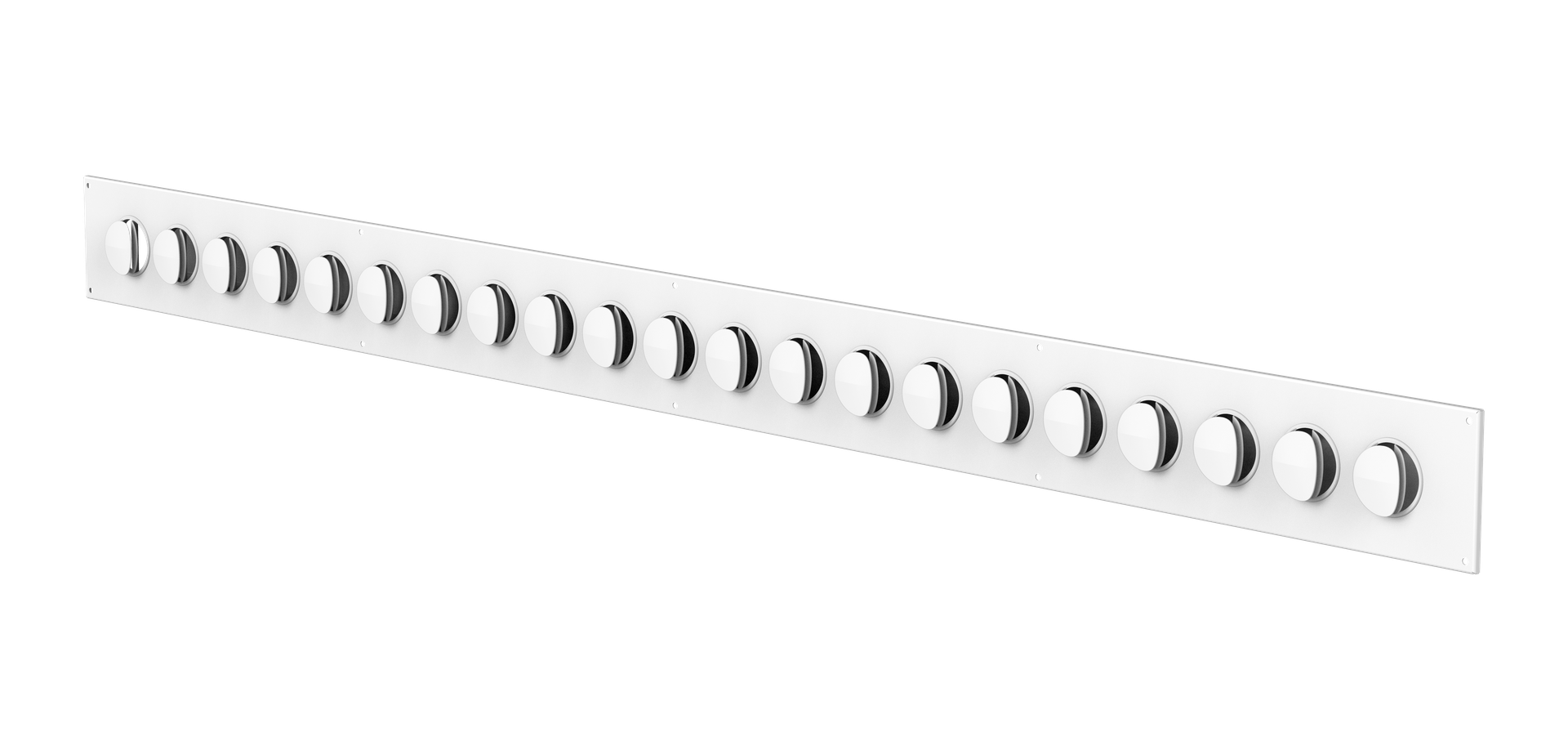

Nozzle outlet with 1, 2, 3, or 4 rows of nozzles and directionally dependent nozzles for installation on square air ducts. Suitable for supply and exhaust air. Nozzles are rotatable 360°. This enables a wide variety of air distribution patterns at unchanged pressure loss and noise generation.DesignThe diffuser is made of galvanized sheet steel and is powder-coated in RAL9003 (signal white) as standard. The nozzles are made of ABS plastic. The outlet consists of a rectangular front plate with nozzles, and a built-in air guide made of perforated sheet. The diffuser is mounted to the air duct with visible screws. Self-adhesive foam sealing strips are included in the scope of delivery to seal the connection of duct and diffuser. The diffuser is available in lengths of 1000 mm and 1500 mm.It is characterized by:– Versatile adjustable air distribution– Excellent air induction and distribution even with small air volumes, suitable for ventilation with variable air flow rates.– High air flow rate with low noise levels and moderate pressure loss– Compact design - Number of nozzle rows: 1- Size: 1000- Air flow direction: Horizontal
