Steel external louvre with mesh screen and mounting frame
Proven design
Robust
Easy installation
Mechanically stable

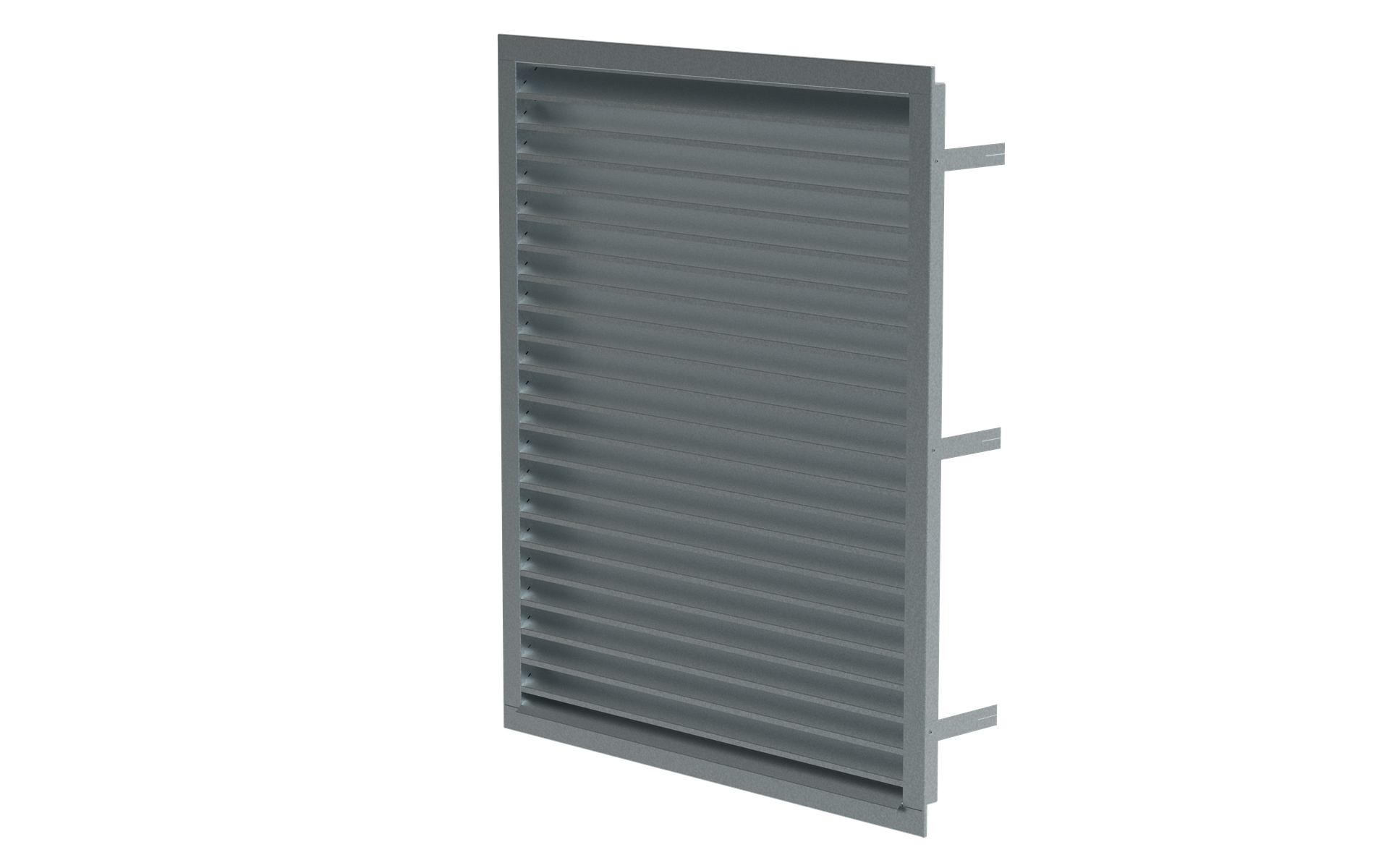

PZZN is an external louver designed to protect the outside supply and exhaust wall openings against rainwater penetration.
The PZZN external louver is manufactured from galvanised steel sheet and is designed to withstand challenging weather conditions.
The PZZN is an easy-to-install and maintain product that works effectively in a range of settings.
PZZN is an external louver that is designed to provide effective protection of the outside supply and exhaust wall openings against rain water penetration. The water is blocked from entering the duct with air face velocity up 3 m/s. The product also blocks the view into the inside of the duct. Available in different sizes, the product is ideal for building facade ventilation transitions for air supply or extraction. The design has been proven for effective rain water separation. It is robust and mechanically stable and can cope with challenging conditions.

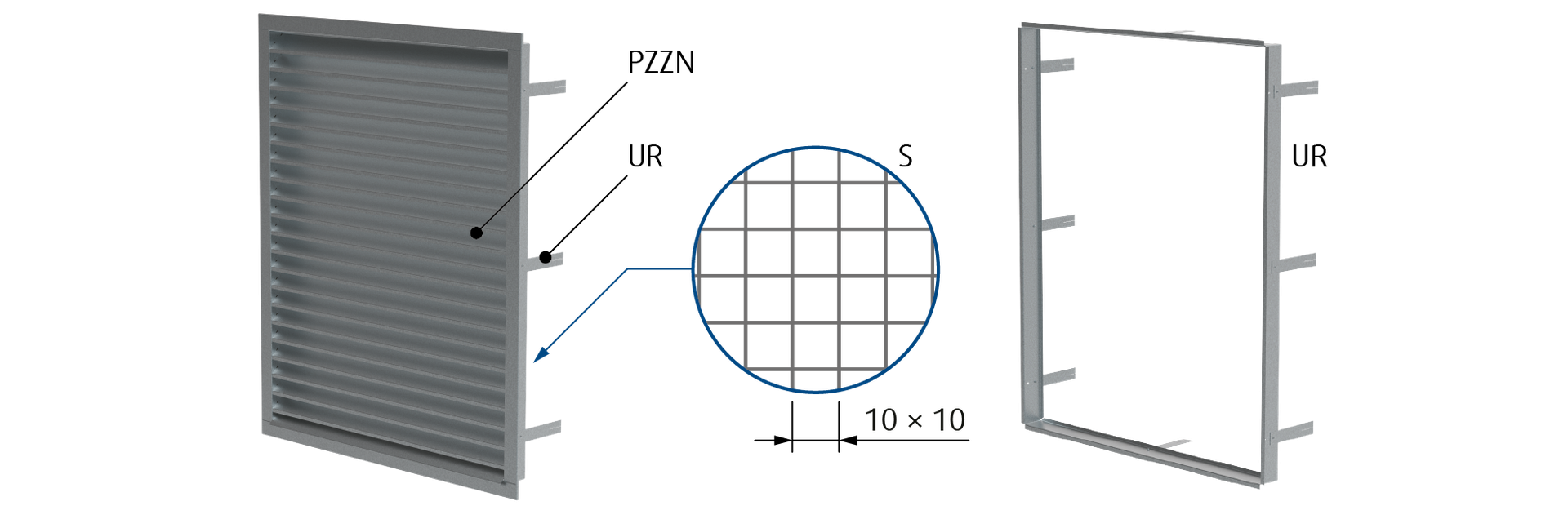

PZZN is manufactured from galvanised steel sheet. It consists of an outer frame and an inner frame with build in ledges, as well as blades with 45 mm spacing. It can be equipped by an “S” welded mesh screen and “UR” mounting frame. The mesh screen blocks larger impurities, such as leaves, from penetrating. The PZZN is provided without any additional surface finish as standard and can be painted to any RAL code specified by the customer.
Default | |||
---|---|---|---|
Nominal data | |||
Air flow(s) | 395; 643; 767 | m³/h | |
Pressure drop | 5; 14; 20 | Pa | |
Sound power level | 24; 29; 34 | dB(A) | |
Sound pressure level (10 m² room absorbtion area) | 20; 25; 30 | dB(A) | |
Dimensions and weights | |||
Weight | 0.09 | kg |
Square weather protection grille made galvanized steel with narrow slat spacing. To protect the external exhaust or outside air opening from rainwater ingress. At an air velocity of up to 3 m/s, water is prevented from entering the duct.Slat spacing 45 mmStandard sizes 355 x 355 mm to 1400 x 1600 mm. Other sizes available on request.Optionally with bird protection screen and/or mounting frame.Galvanized steel as standard, powder-coated in signal white (RAL9003), other RAL Classic colors available on request. - Width: 355- Height: 355- Mounting frame: Without mounting frame- Mesh screen: Without welded mesh screen- Airflow direction: Air Exhaust
