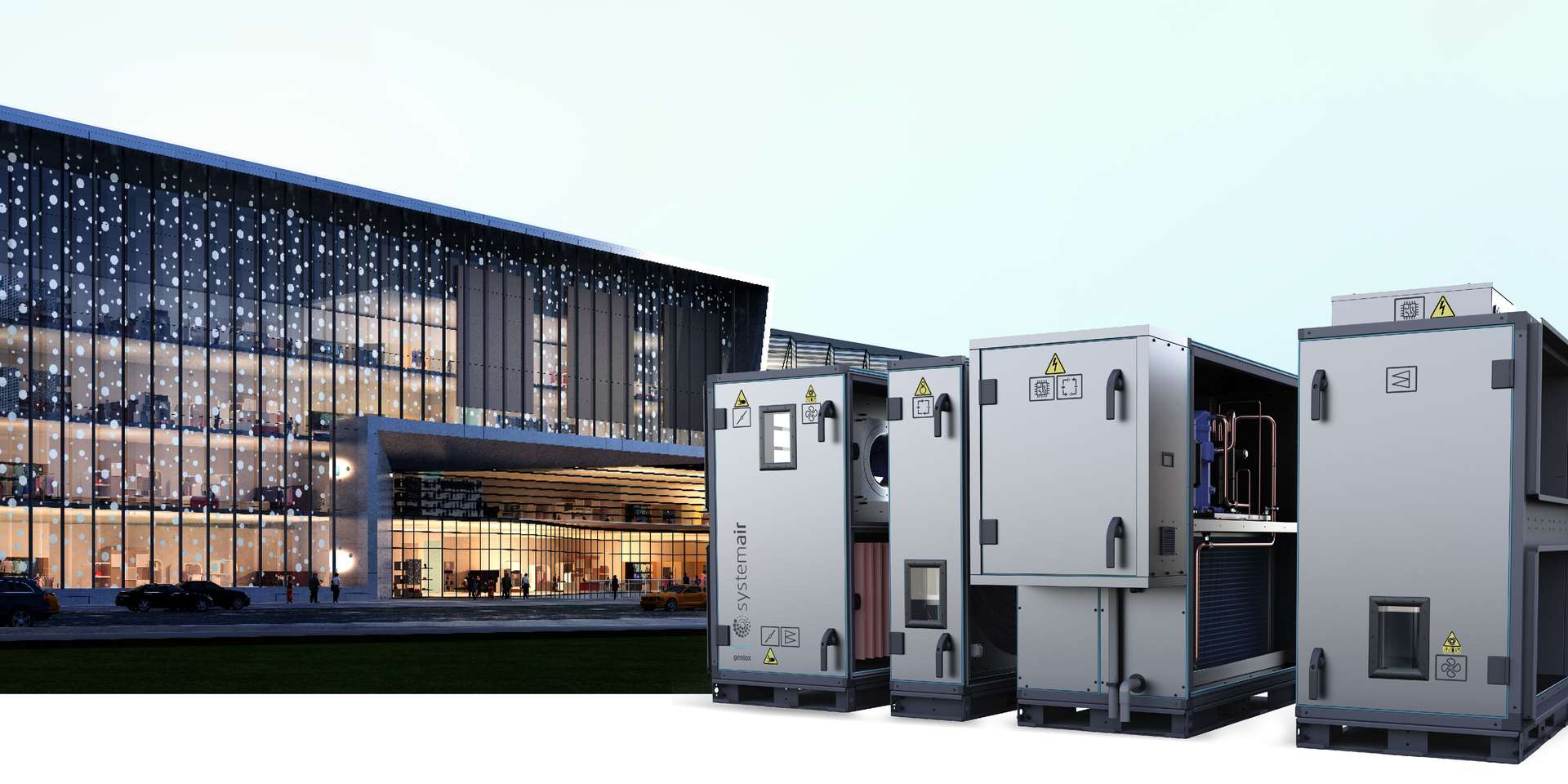

Geniox HP range with integrated reversible heat pump - all in one optimised unit
Comfort cooling and heating of ventilation air
Air Handling Units
Looking for a solution offering comfort cooling and heating of ventilation air in one optimised unit? Check out our Geniox HP range. Incorporating a rotary heat exchanger and integrated reversible heat pump, each air handling unit (AHU) is a complete system with controls. Two heat pump variants handle virtually all climate conditions.
• Airflows from 720-30,000 m3/h, 0.2-8.3 m3/s
• Delivered as a factory-tested, plug-and-play ventilation unit
• Simple installation, no outdoor AC unit or pipework required
• User-friendly control system with wireless communication
• Maximum heat recovery in winter, great cooling performance in summer
All-in-one air handling unit, space-saving
Offering comfort cooling and heating of ventilation air. Having just one integrated unit saves space in the building.
Simple installation
Compact design, fits through standard door openings. No need for outdoor condensers and pipework. Low installation cost.
Low operating cost
High energy efficiency, low overall energy consumption, minimal maintenance requirements, and long technical lifetime.
User-friendly Access control system
Control your AHUs using NaviPad, or via the Access Connect app on a smartphone or tablet. Pre-programmed functions help you optimise AHU operation.

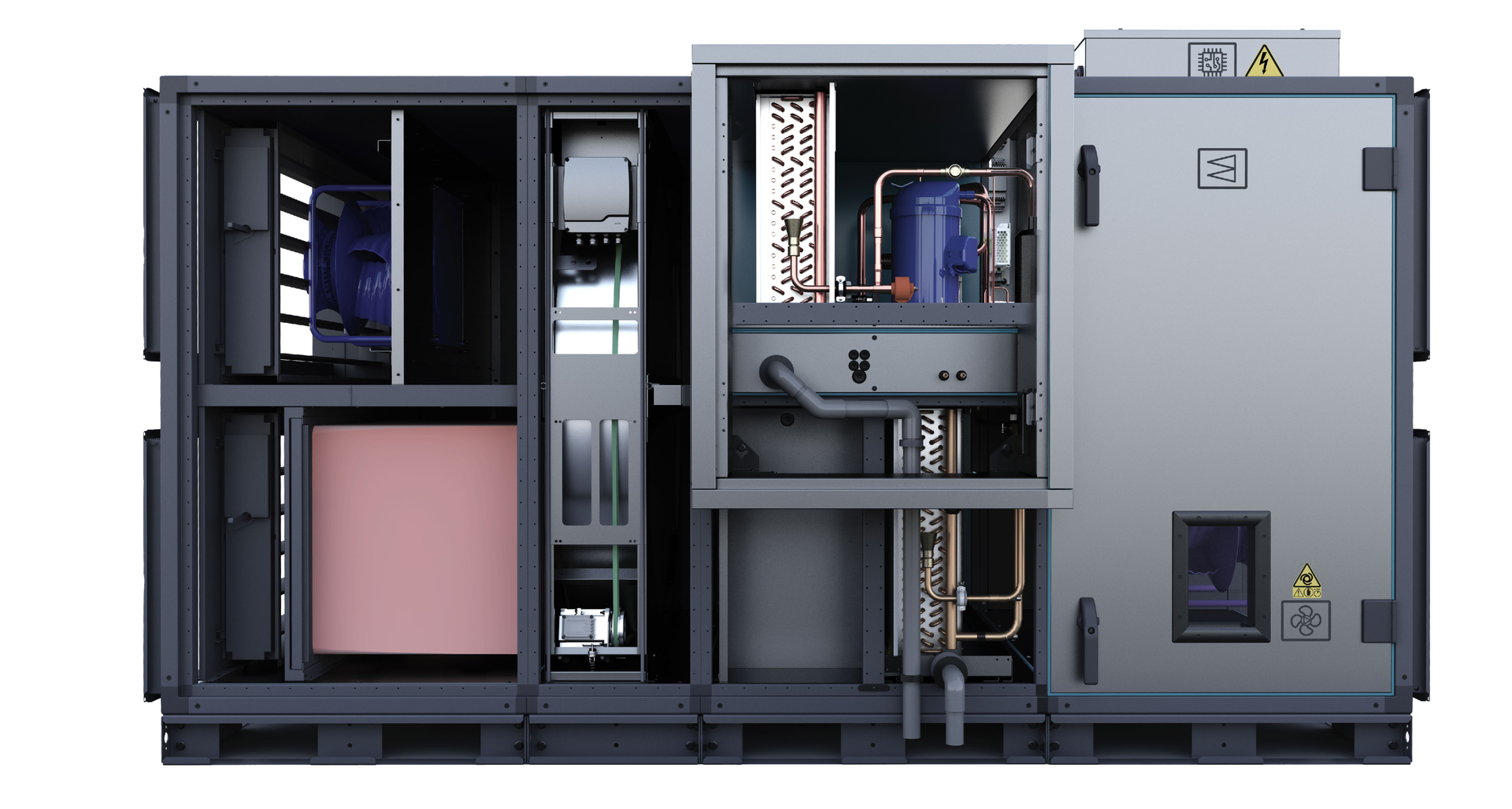

Features that optimise performance
Geniox HP DF (Defrost Free)
)
Integrated reversible heat pump
Cools down or warms up the supply air to pre-set parameters
Frequency-controlled Danfoss scroll compressor, with PM motor
Electronic expansion valve prevents the system from operating with the wrong settings
Stepless control of cooling and heating capacity ensures precise regulation
Very high COP and EER values.
Coils offer low-pressure drop
The extract and supply coils are hydrophilic treated. A drop eliminator is not required.
Optional Boost heater
A boost heater is standard with a design temperature colder than –17°C
Otherwise easily added as a separate module at a later stage
Quaility casing
The casing panels are insulated with 60 mm mineral wool to thermal insulation standard T2/TB2.
Corrosion resistance C5 (panels).
Systemair Access Control System
The common control platform for all Geniox models, now with wireless communication!
Simple to connect, configure and control
User-friendly interface (UI)
Many pre-programmed functions to optimise AHU operation
Easy access to external connections
Energy-efficient EC fans
Systemair plug fans are compact modules with high performance EC motors. EC fans in the full range offer high efficiency, low noise levels, and low SFP values.
Rotary heat exchanger
The rotary heat exchanger offers high heat recovery and low pressure drop, working in harmony with the heat pump.
Dry efficiency up to 90%.
)
No defrosting
Always 100% fresh air into the building
In the Geniox HP DF version the heat pump will run continuously in conditions down to –20°C without a defrosting cycle. This ensures higher energy efficiency on cold winter days and greater energy recovery. No defrosting is a significant benefit since defrosting does not allow heat recovery and consumes valuable energy.
Fast, easy installation
Plug-and-play
The AHU is a factory-tested unit that can be placed anywhere in the building. It comes with a built-in compressor, already filled with refrigerant and utilises two power sources, for the air handling and the heat pump, respectively. Separate outdoor components or pipework are not required.
The heat pump section of the Geniox HP DF version can fit through an 800 mm door opening for the smaller sizes, and 900 mm for the bigger sizes. The Systemair Access control system makes installation and commissioning truly plug-and-play.
All central components sourced from one trustworthy supplier
)
The Geniox HP range has two heat pump variants
Which version should I choose?
Geniox HP DF versions offer a constant all-year-round supply of air temperature with impressively high heat recovery and energy efficiency.
Geniox HP versions offer efficient cooling capabilities and high cooling recovery.
)

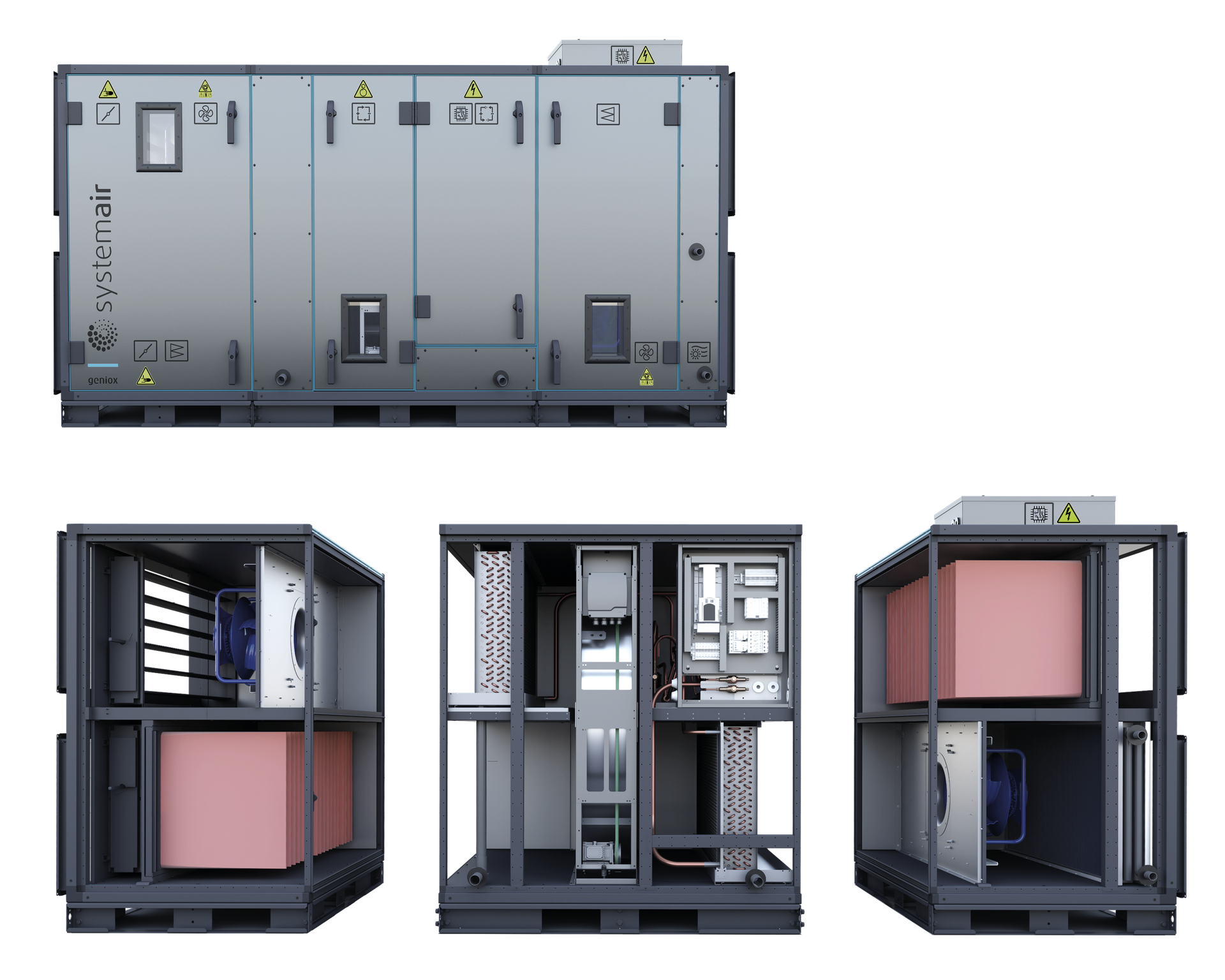

Geniox HP DF
For high heat recovery
8 sizes
Airflow 0.2-5.5 m3/s, 720–20,000 m3/h
Reversible heat pump with comfort cooling
Integrated, configured and filled with refrigerant from factory
No outdoor installations or pipework needed
No defrosting cycle required
Optimised design gives highest possible values of EER/COP
Compact solution
Up to 25% space saving compared to other built-in HP systems
All sections can pass through a 900 mm door opening

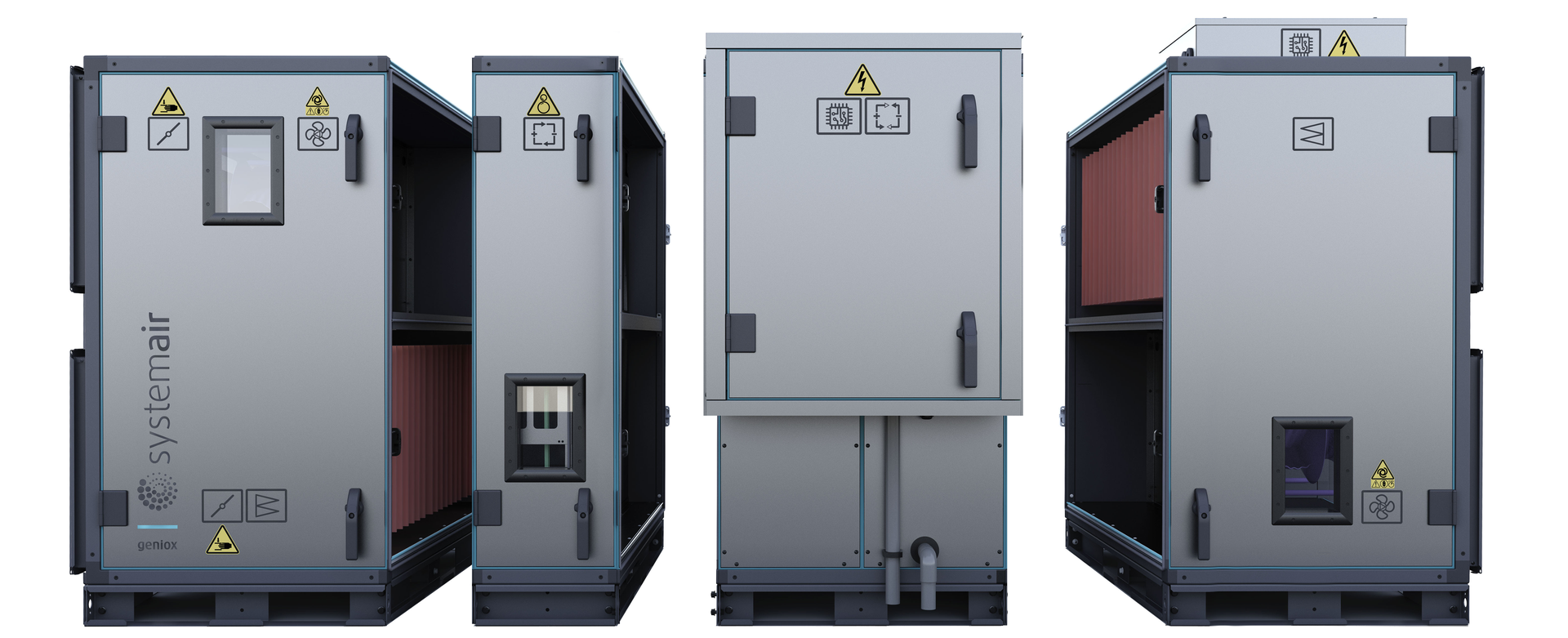

Heat pump in one module section
Cooling mode
Maximised use of free-cooling potential, minimised energy use for compressor
Heating mode
High heat recovery efficiency, no need for a re-heating system
Heating mode down to -20°C without preheater
Heat pump option available for Geniox, Geniox GO and Geniox Core Systemair Access integrated control system
)

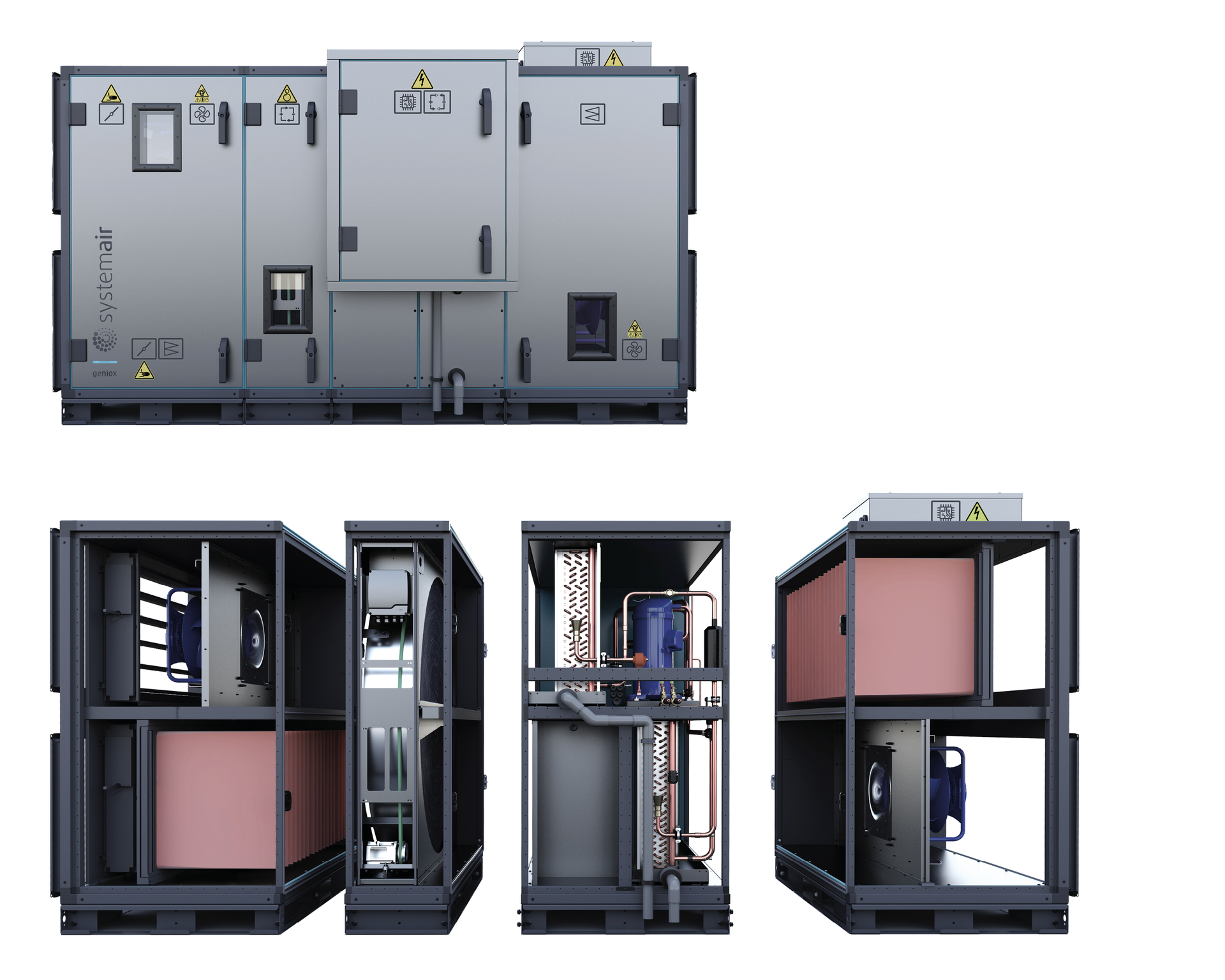

Geniox HP
For cooling recovery
9 sizes
Airflow 0.2-8.3 m3/s, 720–30,000 m3/h
Reversible heat pump with comfort cooling
Integrated, configured and filled with refrigerant from factory
No outdoor installations or pipework needed
Cooling mode
Cooling recovery to give comfort cooling even at peak days of heat
Maximised use of free-cooling potential, minimised energy use for compressor
Heating mode
Heating mode down to –12°C without preheater
Re-heater needed
Heat pump option available for Geniox, Geniox GO and Geniox Core Systemair Access integrated control system
Systemair experts at your service
Feel free to contact our nearest Systemair office, where our experts can guide you towards the best solution to meet your project goals.
Systemair Access Control System with wireless communication
Systemair Access with wireless communication, a complete control system for air handling units, making advanced technology easily accessible.
It allows operators to optimise ventilation performance, helping them to create the perfect indoor climate. By operating the air handling unit at maximum efficiency you reduce energy consumption and operating costs.
)
Choose your preferred device, smartphone, tablet or the handheld control panel, NaviPad.
Intuitive, easy-to-navigate menus help you achieve your chosen indoor climate.
Plug-and-play concept reduces installation, set-up and commissioning time.
Modbus communication to all internal components simplifies wiring, including inside the unit.
Cloud service for full monitoring and accessibility, even outside the building.
Wireless communication AHU(s) can be connected, configured and controlled via the Access Connect app on your smartphone or tablet.
)
Find the right Geniox AHU for your project

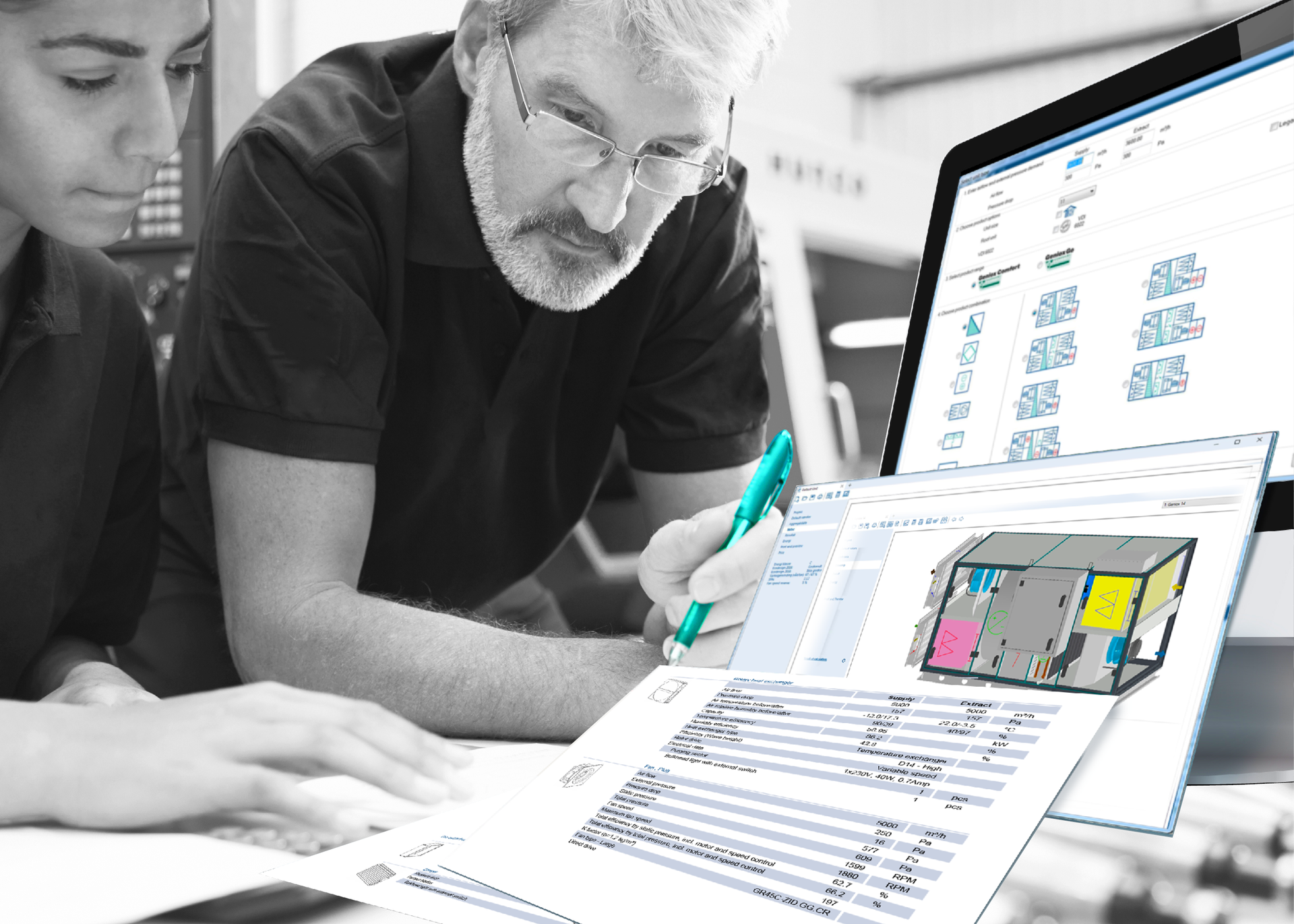

Use SystemairCAD to help you configure the best Geniox air handling unit for your project.
And best of all – you can download all data and documentation before you place your order.
Geniox HP range brochure
Download
See how Geniox HP is being used around the world
Learn more about how we support all projects, from those with the most standard and unique engineering requirements.
)
Enhancing HVAC systems to align with BREEAM standards in a milestone refurbishment project

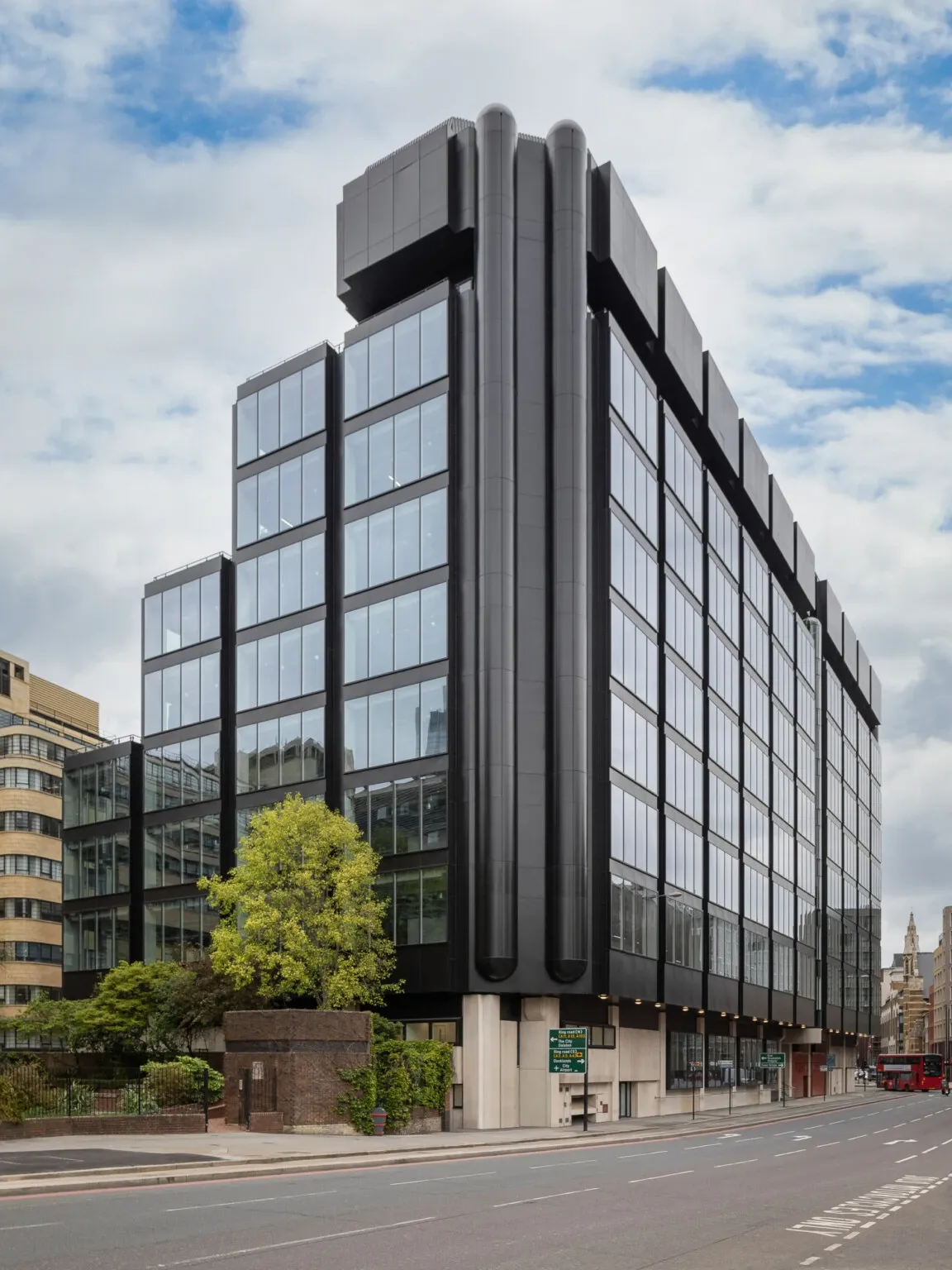

One Portsoken Building, United Kingdom
