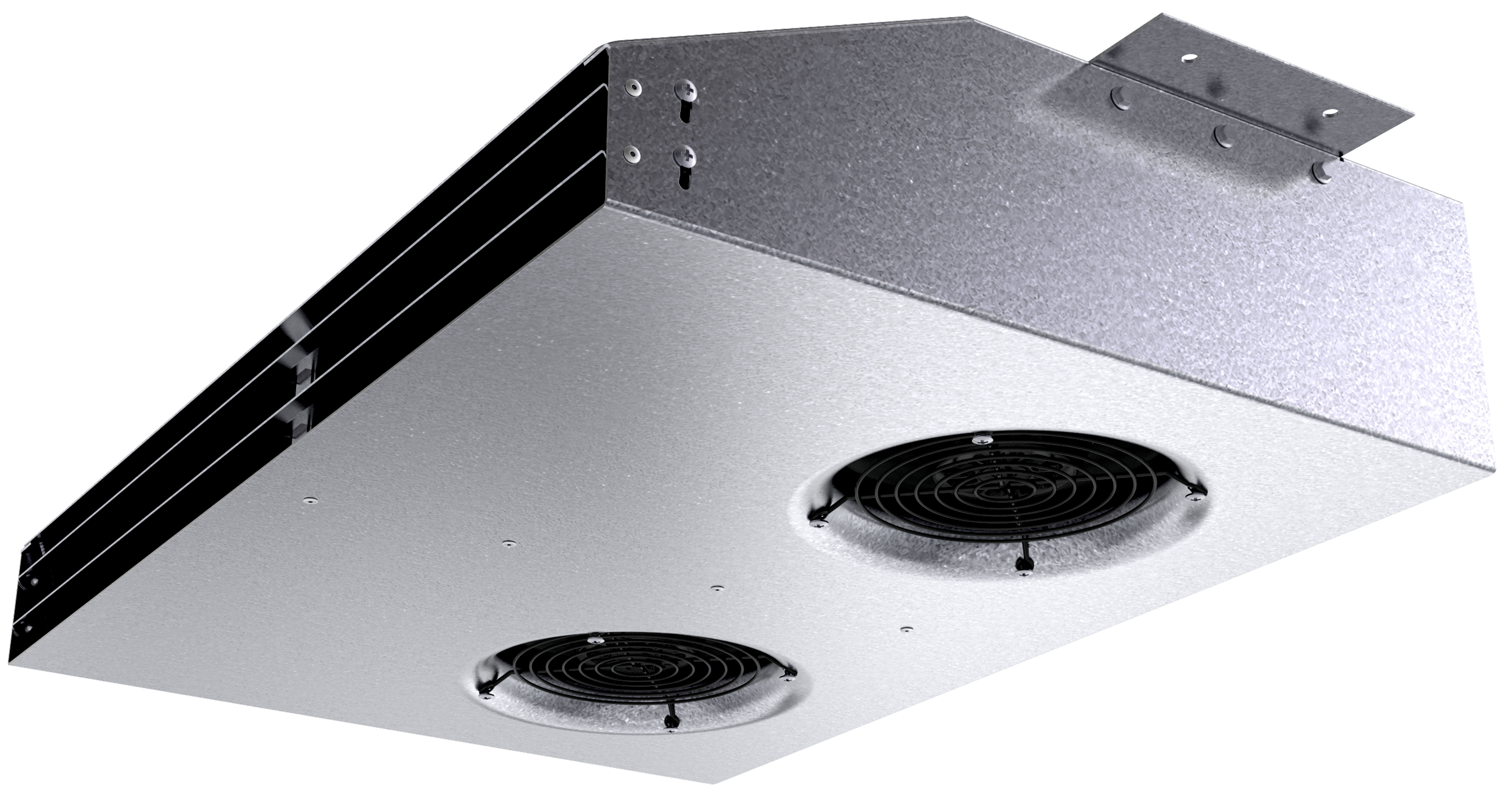

IVSmart AC

IV Jet Fans

Compact, smart solutions for smoke extraction

  • Up to 400°C/120 min (F400)

  • Continuous medium temperature up to 55°C

  • Flexible

IV Smart AC#247027
Frequency: 50/60 Hz

Flexibility

The IV Series are for daily ventilation requirements and smoke extraction in case of fire. The compact housing design, ideal for low ceiling heights. Depends to the model there is the possibility to adjustable the discharge direction from the integrated deflector.


Reliability

The casing is made out of galvanized steel, for best corrosion protection.

The combination of casing and motor construction ensure minimize the need for maintenance of the fans and allows long continuous operation.


Certifications

Eco Platform: EPD Verified

This product comes with an Environmental Product Declaration (EPD), published by EPD Norway, a global EPD program operator and member of the ECO Platform (https://www.eco-platform.org/who-is-participating.html ). Compliant with ISO 14025 and EN 15804, Systemair EPDs support Life Cycle Assessments (LCAs) in all markets where the product is used. Scroll down to download the EPDs.

Tech specs

Features

Construction

The casing is made of of galvanized steel, for best corrosion protection.

Compact casing for thin ceiling height with variable outlet, depends to the model.

Impeller

The IV fans use aerodynamic radial impeller for maximum thrust and low noise emissions. These are made out of galvanized steel or aluminium, dynamically balanced and paired with corresponding IEC motors with efficiency IE3 or EC motors.

Motor

Depending on the type, IV fans are designed with high temperature motors for temperature classification (insulation class B or H) up to F400 (400°C/120 min), AC or EC Motors. The Motors are suitable for 50 Hz and 60 Hz.

Motor protection

Depending on the type, AC motors have an integrated thermal protection with manual (electrical) reset, prewired integral thermocontact TK or thermistor PTC with leads to a motor protection device.

Fans with EC motors have an integrated electronic thermal protection including locked-rotor protection and soft-start.

Control

EC motors with built-in potentiometer to adjust working point can be also controlled by external signal 0-10V.

EC motors, depending on the type are also equipped with ModBus communication or alarm signal.

AC motors can be controlled by 5-step, stepless speed regulator, D/Y switch or frequency converter.

Installation

The IV fans are for horizontal installation.

Technical Data

Article name
IV Smart AC
Article number
#247027
230V 1~ 50Hz
Nominal data
Voltage (nominal)230V
Frequency50Hz
Phases1~
Input power409W
Input power kW0.409kW
Input current1.8A
Impeller speed2,696rpm
Air flowmax 2,515m³/h
Thrustmax 12N
Temperature of transported airmax 55°C
Max temperature of transported air, when speed controlled55°C
Sound data
Sound pressure level at 3m (free field)61dB(A)
Protection/Classification
Enclosure class, motorIP44
Insulation classF
Dimensions and weights
Weight21kg
Others
Motor typeAC

Dimensions

IV #247027, Dimensions

IV Smart
A
169
B
173
C
360
D
760
E
36
F
140
H
503
J
8
K
800
L
700
M
150
N
67
