SSAR
)
SSAR
Smoke Switch
Smoke Switch System
Building Management
Long Service Life
Easy Servicing
Building Management System
The adapter with a mounted ventilation smoke switch system LRS 01 is suitable for connection to the building management system.
Early Detection
By using the LRS 01 ventilation smoke switch system, smoke can be detected at an early stage.
Easy Servicing
The smoke switch can be checked and serviced from the outside without tools.

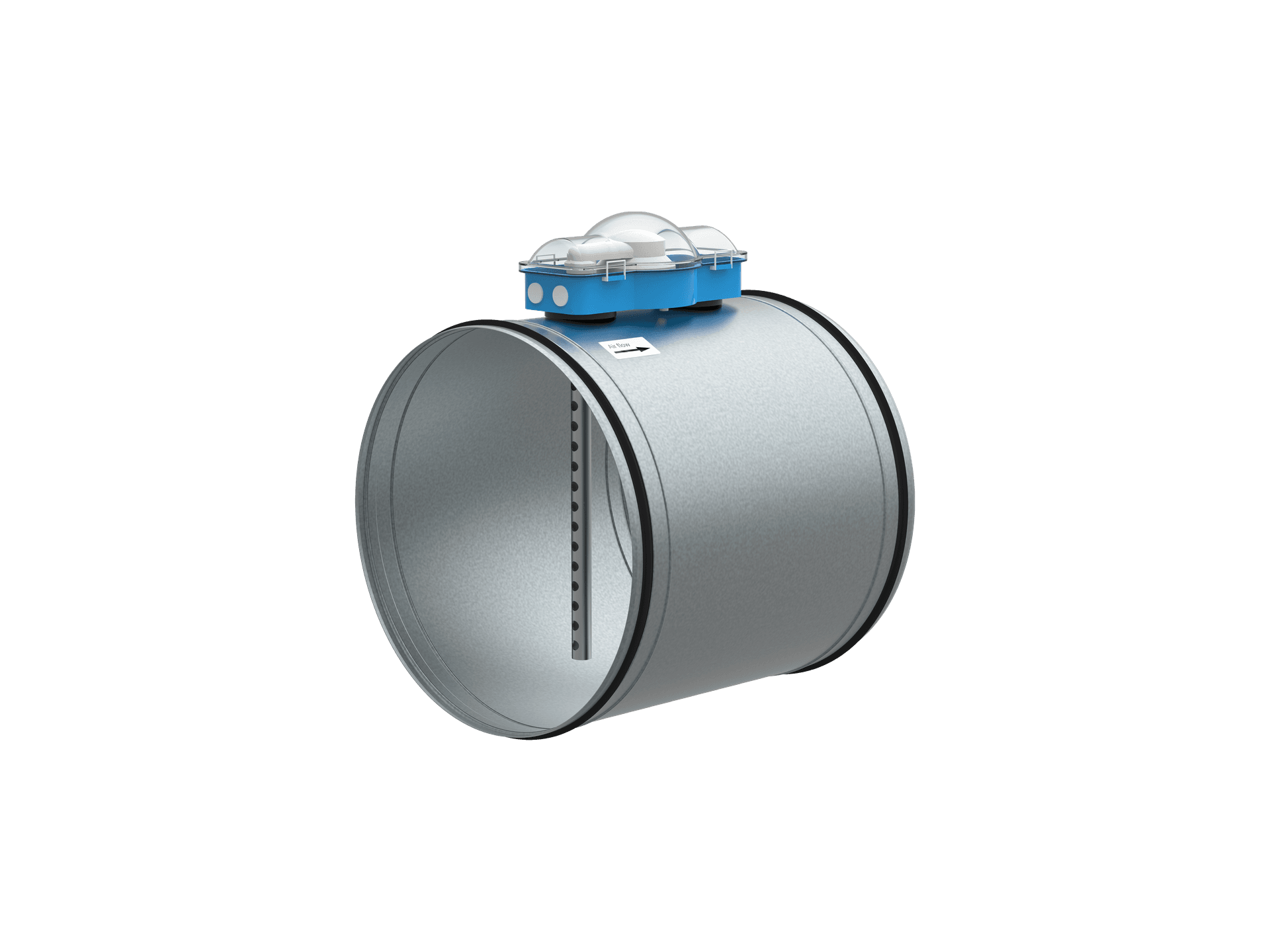

The SSAR Smoke Switch enables the early detection of smoke in the event of a fire. An adapter with a mounted ventilation smoke switch system LRS 01 manufactured by Hekatron, it is suitable for connection to the building management system. The relay in the optical smoke switch opens in the event of an alarm, heavy contamination, malfunction, or power failure.
The smoke switch can be checked and serviced from the exterior without the tools facilitating easy routine maintenance. The status of the smoke detector can be easily read quickly from the LED light. The alarm threshold tracking (pollution compensation) ensures a long service life for the detector. Includes RS bus communication with BMS or RZA 142 status display.
