KFB Extract AC fans

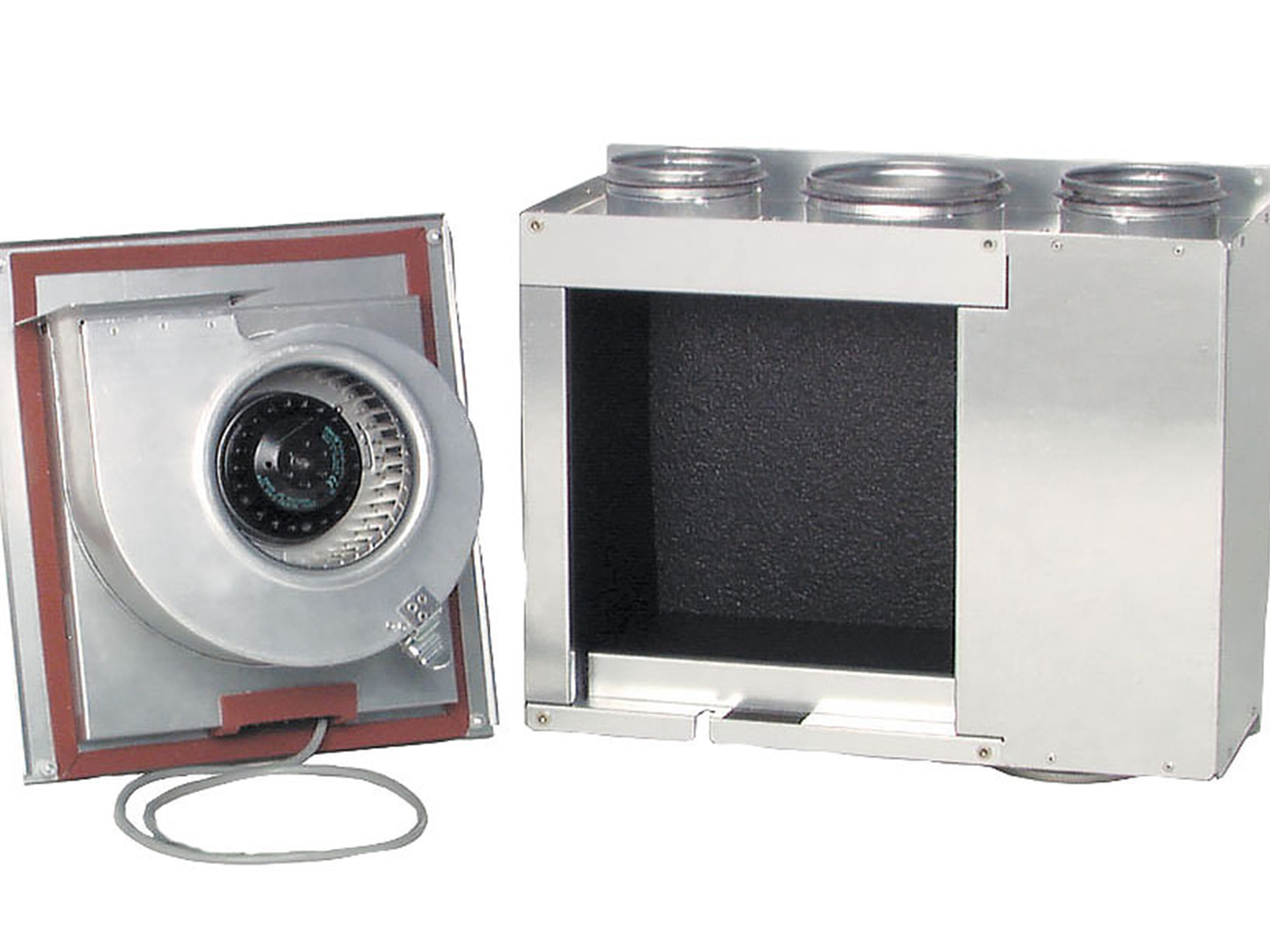

KFB 140 L Cupboard fan NO#3995

Frequency: 50 Hz

Tehničke specifikacije

Naziv proizvoda

KFB 140 L Cupboard fan NO

Trgovački naziv

Systemair

Broj proizvoda

#3995

230V 1~ 50Hz
Basic unit
ErP compliance	2016
SEC Average	-5.2	kWh/(m².a)
SEC Cold	-21.6	kWh/(m².a)
SEC Warm	4.2	kWh/(m².a)
SEC Class	F
Unit category	RVU
Unit type	UVU
Drive	External MSD or VSD
Heat recovery type	None
Temperature ratio (UVU)	Not applicable
qv max	389	m³/h
P max	130	W
Sound power (LWA)	45	dB(A)
qv ref	0.075	m³/s
Ps ref	50	Pa
SPI	0.38	W/(m³/h)
CTRL	1
MISC	1.1
x-value	1.5
External Leakage	5	%
AEC average	478.4	kWh
AEC cold	478.7	kWh
AEC warm	478.7	kWh
AHS Average	1.715	kWh/a
AHS Cold	3.355	kWh/a
AHS Warm	776	kWh/a
Units with local demand control
ErP compliance	2018
SEC Average	-5.2	kWh/(m².a)
SEC Cold	-21.6	kWh/(m².a)
SEC Warm	4.2	kWh/(m².a)
SEC Class	D
Unit category	RVU
Unit type	UVU
Drive	External MSD or VSD
Heat recovery type	None
Temperature ratio	Not applicable
qv max	389	m³/h
P max	130	W
Sound power (LWA)	45	dB(A)
qv ref	0.0756	m³/s
Ps ref	50	Pa
SPI	0.382	W/(m³/h)
CTRL	1
MISC	1.1
x-value	1.5
External Leakage	5	%
AEC average	167.7	kWh
AEC cold	167.7	kWh
AEC warm	167.7	kWh
AHS Average	1.72	kWh/a
AHS Cold	3.36	kWh/a
AHS Warm	0.78	kWh/a

Luftmengde (l/s)

Lydtrykknivå dB(A)

Spenning (V)

KFB 140 L

Lydeffektnivå-Oktavbånd, Hz

.

‌

‌
