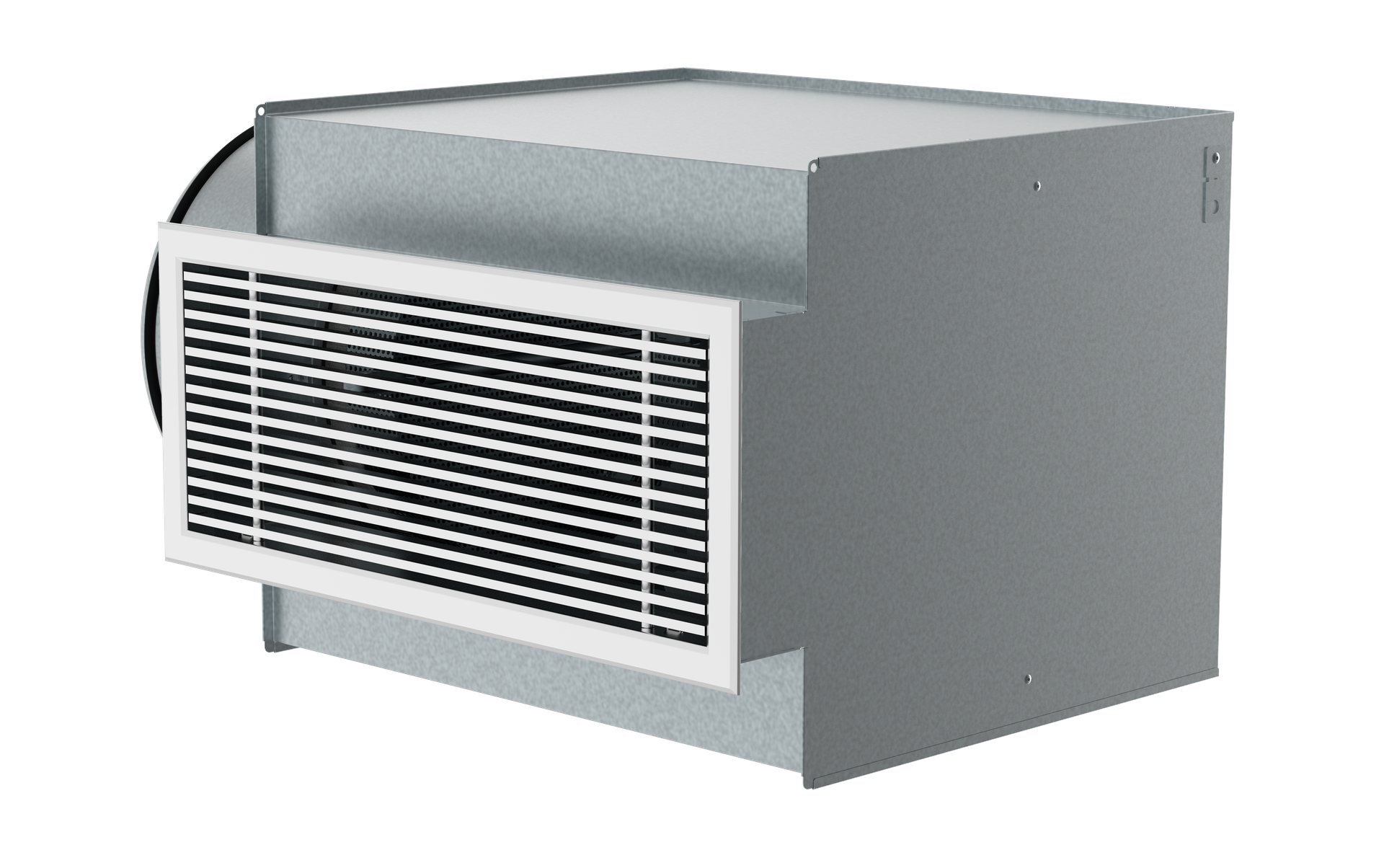

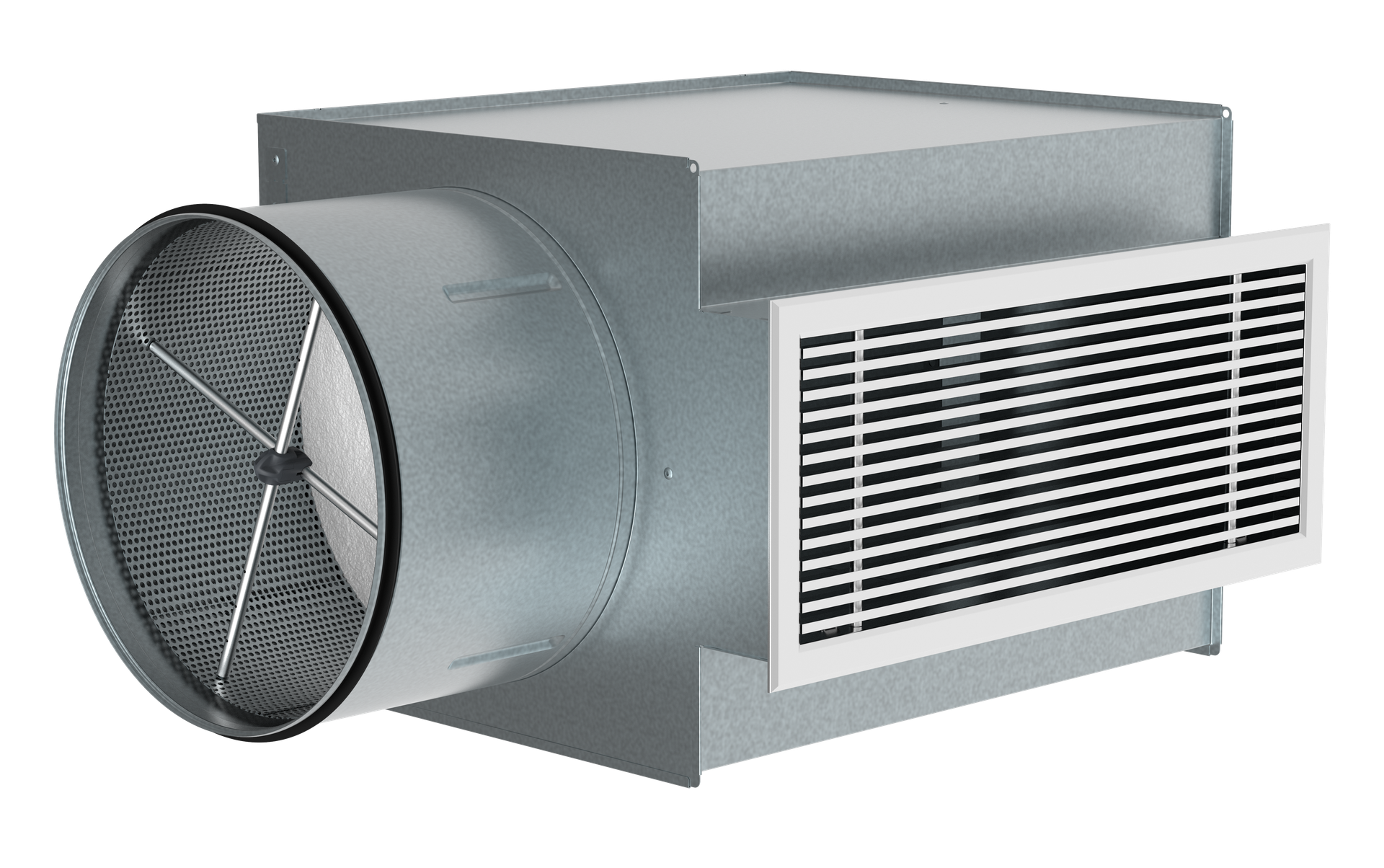

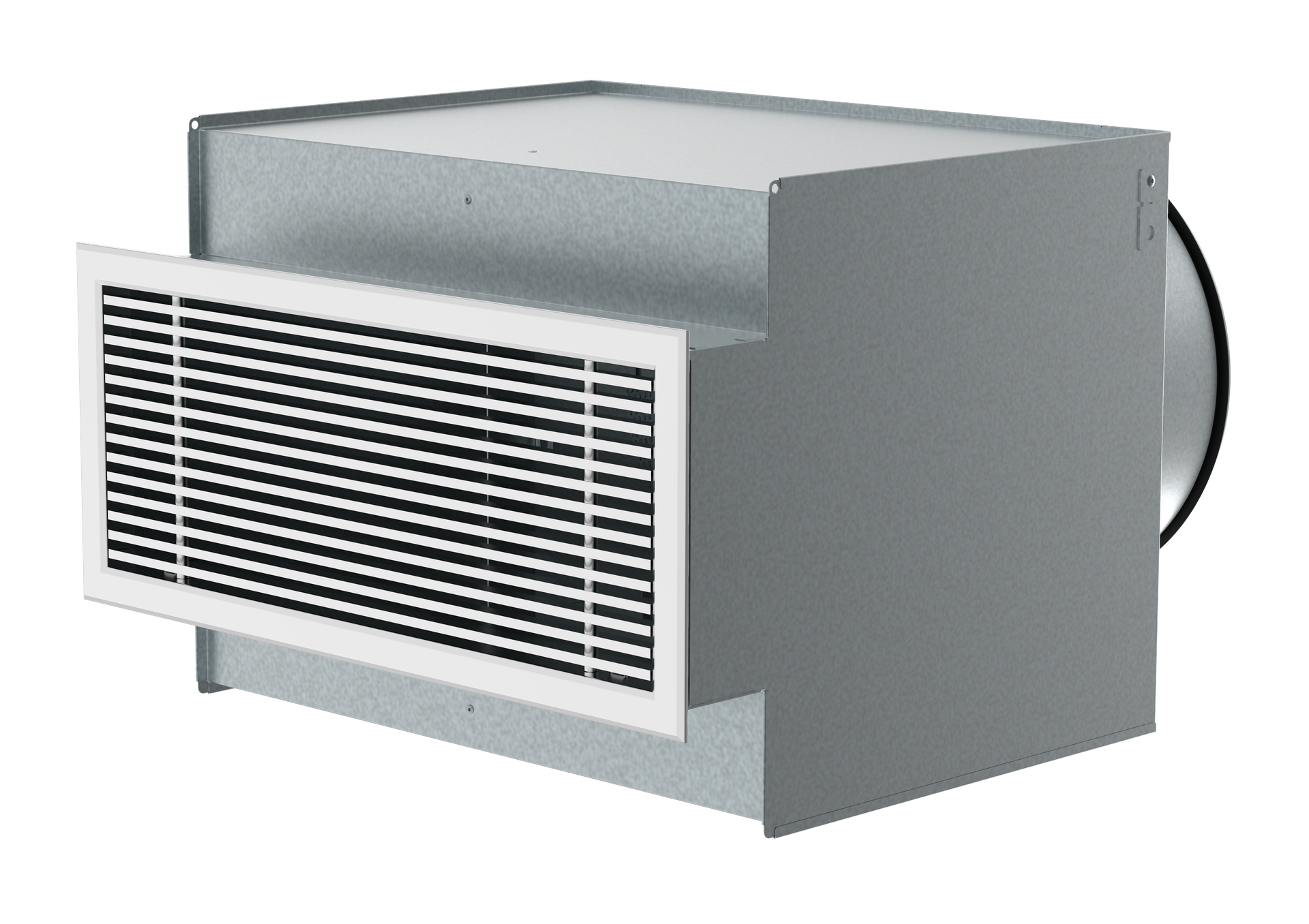

NOVA-L with ODEN-F Rešetke

Aluminum ventilation grille with one or two rows of slats. The first row is always fixed, the second is adjustable. Suitable for supply and exhaust air. The grille is available with screw fixing or clamping springs. Using a mounting frame is recommended when using clamping springs. Available in sizes from 200 x 100 to 800 x 200 mm. For the first row of slats, you can choose from three different slat shapes; you can also select a slat spacing of 12, 17, or 20 mm. The grilles can also be mounted as a row of grilles. As standard, the grille is available anodized or powder-coated in RAL9003 (signal white). Other colors are available on request.Optional accessories: Counter-rotating regulating element, mounting frame, and junction box in various designs. - Length: 200- Height: 100- Blades: Horizontal- Blades setup: Single layer- Mounting: Screws- Blade shaping type: 1- Blade's axial pitch (mm): 12- Product version: Standard- Surface finish: Anodized aluminium finish- Position of connection: On the back side- Damper adjustment: 2- Airflow direction: Supply
