KKD042-caisson registre

KKD

KKD 042-caisson registre#333317
ou créer un compte pour acheter en ligne

KKD 042-caisson registre #333317

KKD - Damper-sectionThe damper-section is equipped with an internal mounted damper. The damper-shaft is led out to the side, by turning the module the shaft can be positioned as desired. The casing is a self-supporting construction of aluminium profile. Double skin panels made of galvanised sheet steel, with 30 mm sound and heat insulation made of mineral wool. Corners made of high shock-resistant plastic type PA6. This fits exactly to our Multiboxes (MUB / MUB/T) in terms of dimensions and design, therefore it is directly connectable to the suitable Multibox. The necessary connecting material is already enclosed.

Spécifications techniques

Données techniques

Nom de l'article
KKD 042-caisson registre
Numéro d'article
#333317
Dimensions et poids
Poids30kg

Dimensions

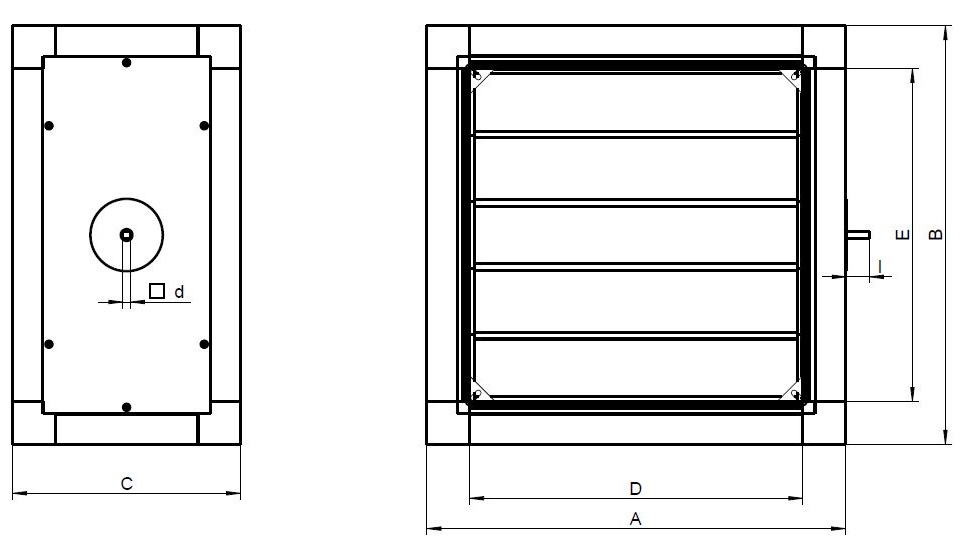

KKD #333317, Dimensions
 ABCDEdI
KKD 0255205203783783781240
KKD 0426906903785485481240
KKD 0628208203786786781240
KKD 100102010203788788781240
Dimensions/Abmessungen in mm
