NOVA-H Légrácsok

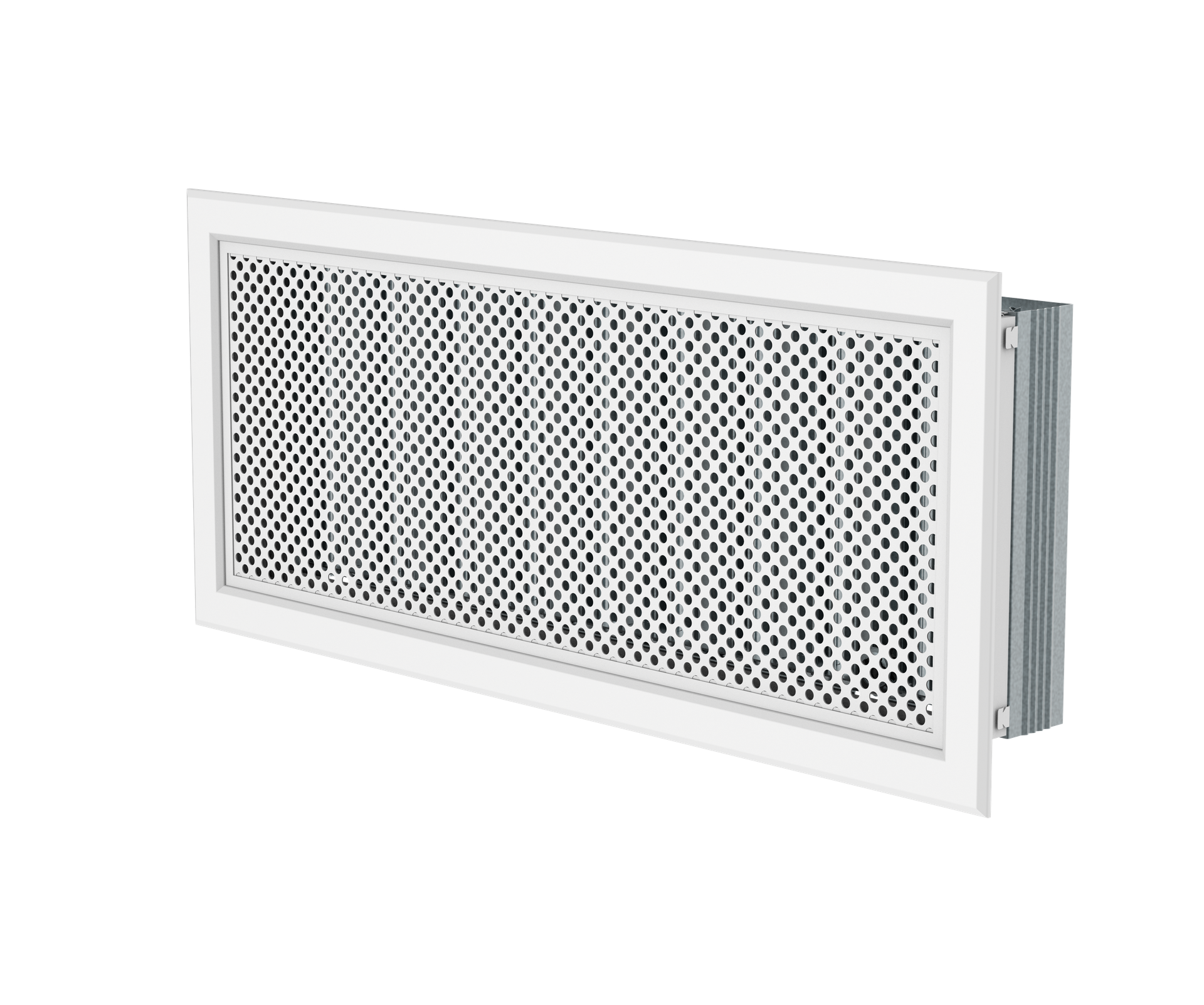

Perforated panel grille ideal for industrial and commercial settings
Lightweight
Wall or duct installation
Industrial or commercial
Aluminium & Steel
NOVA-H-1-200x100-SW#334929
Aluminium & Steel
The NOVA-H diffusion grille is constructed from anodised aluminium profiles making it strong yet lightweight. The perforated panel is made from sheet steel.
Air extraction & supply
The NOVA-H perforated panel grille when installed is mainly intended for air extraction but can also be used for air supply.
Industrial & commercial use
The NOVA-H diffusion grille is primarily designed to provide air extraction in both industrial and commercial settings.
The NOVA-H diffusion grille is an intelligently designed grille with a perforated panel suitable for installation in both industrial and commercial settings. With its anodised aluminium construction it is both strong and lightweight, aiding easy installation and improving durability. Aluminium has strong anti-corrosion properties making it suitable for a wide range of settings. The perforated panel is manufactured from galvanised steel sheet.
Available in different sizes, the unit is principally designed for air extraction when installed into rectangular ducts or into walls, but can also be used for air supply. For a balanced distribution, it is recommended to use the R1-NOVA damper or plenum box. As well as the damper, a UR-NOVA mounting frame is also available. The product is powder painted to RAL9003 (signal white) as standard. Other RAL colours are available upon request.
Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
Tanúsítványok
Betöltés...
Műsz. spec.
Műszaki adatok
Tétel neve
NOVA-H-1-200x100-SW
Cikkszám
#334929
| Névleges adatok | |||
|---|---|---|---|
| Légmennyiség(ek) | 62; 80; 101 | m³/h | |
| Légcsatorna csatlakozás típusa | Négyszögletes | ||
| Nyomásesés | 23; 35; 52 | Pa | |
| Hangteljesítmény szint | 24; 29; 34 | dB(A) | |
| Hangnyomásszint (10 m² hangelnyelésű szoba) | 20; 25; 30 | dB(A) | |
| Méretek és tömegek | |||
| Tömeg | 0.6 | kg | |
Teljesítmény
Áramláskép
Méretek
Specifikáció
Exhaust air grille with perforated panel. For installation in square air ducts, walls, and ceilings. The use of a regulating element or a junction box is strongly recommended if used for supply air. You can choose between fastening by screws or clamping springs. Using a mounting frame is recommended when fastening by clamping springs. The grid frame is made of aluminum and the panel is made of galvanized steel. Available in sizes from 200 x 100 mm to 1200 x 600 mm and from 225 x 75 mm to 1225 x 625 mm. The grille is powder-coated in RAL9003 (signal white) as standard. Other RAL Classic colors are available on request.Optional accessories: Counter-rotating air volume controller and various junction boxes. - Width: 200- Height: 100- Fixing: Screws- Damper type: Without regulation- Accessories: Not selected or not available- Airflow direction: Supply
