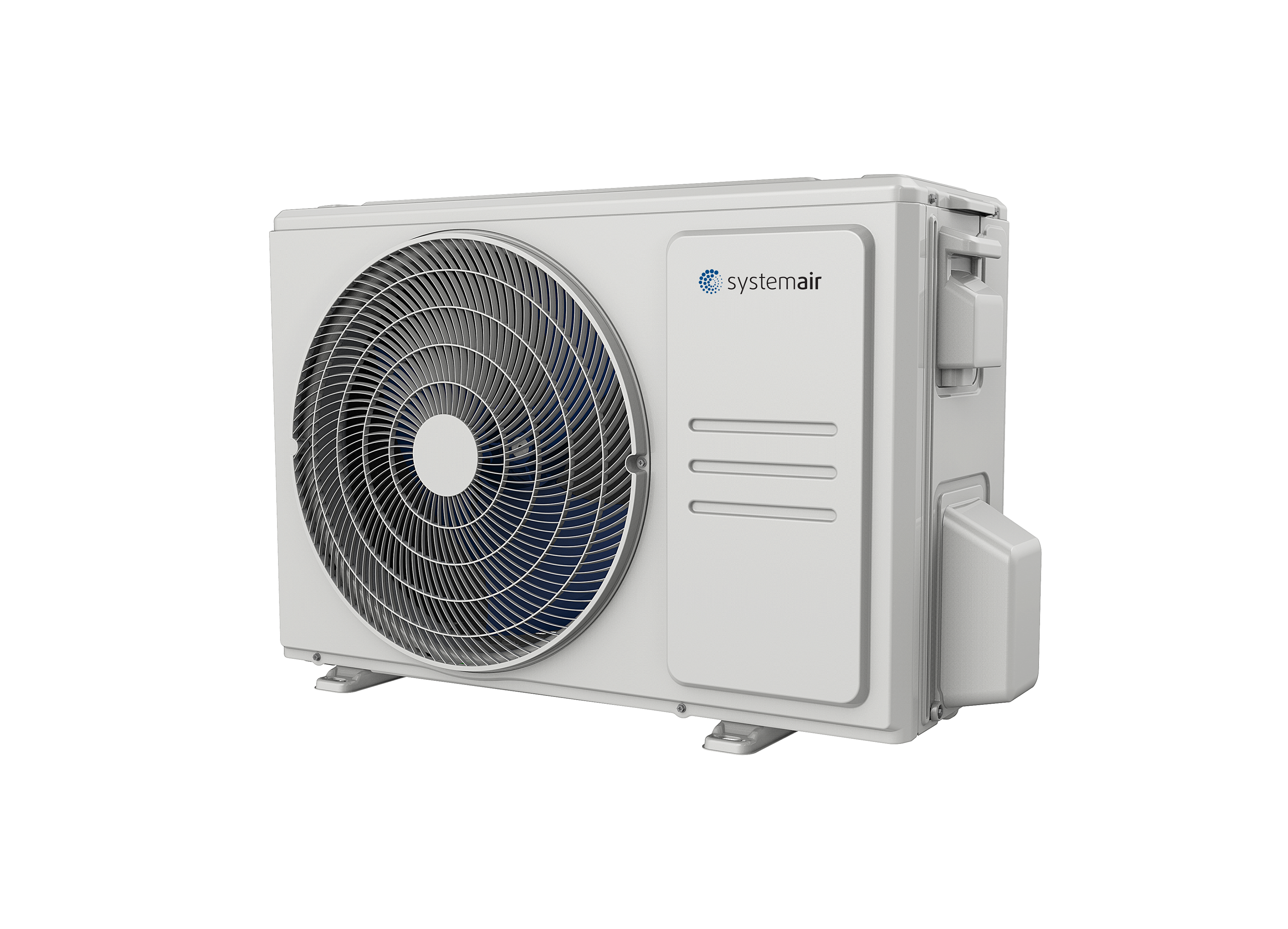

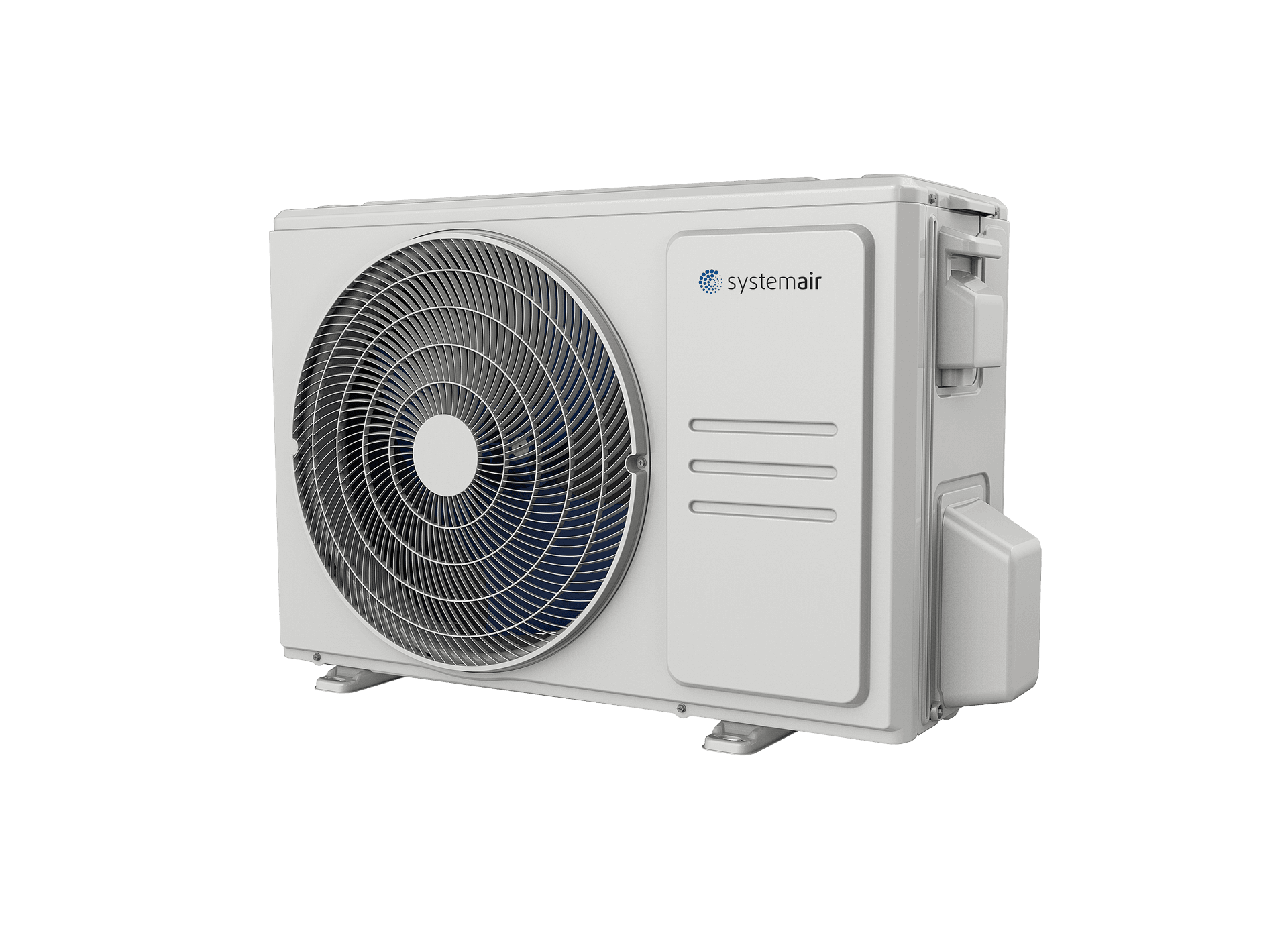

SYSPLIT WALL OUT Split Systems

2,7-7,3 kW • R32 Outdoor unit for Wall Prime & Wall Cute

DC inverter rotary compressor and DC fan motor
Coil with golden-fin coating
Refrigerant leakage detection
Compact design

Size

Functions

SYSPLIT WALL OUT 09 INV-X HP Q#322263

Frequency: 50 Hz

Contact sales

or create account to buy online

High efficient SYSPLIT WALL EVO series is compatible with SYSPLIT WALL CUTE for large project installations.

Entry level SYSPLIT WALL INV series is compatible with SYSPLIT WALL PRIME and it is the most affordable and reliable solution for residential applications.

The Self-diagnosis function monitors the operation of the air conditioner and protects the system.

The refrigerant leakage detection protects the compressor from overheating or damage due to a lack of refrigerant.

Hydrophilic aluminum fins with golden-fin coating improve the efficiency of the heat exchanger and offer long-lasting and resistant corrosion protection against salty air, rain and other corrosive elements.

The hermetic DC inverter compressor ensures precise temperature control and low start-up current.

The 3D axial flow fan blades optimize the flow field and the vortex structure ensuring an even distribution into the heat exchanger.

‌

Certifications

Green Ventilation

Our very own environmental performance benchmark guides you toward the most sustainable solutions within our portfolio. Only products which meet a set of easily verifiable minimum requirements in terms of energy efficiency, indoor air quality, safety, and the like are entitled to receive the Green Ventiulation™ label.

Tech specs

Technical Data

Article name

SYSPLIT WALL OUT 09 INV-X HP Q

Article number

#322263

230V 1~ 50Hz
General data
Input current	10	A
Refrigerant type	R32
Frequency	50	Hz
Phases	1~
Voltage (nominal)	230	V
Sound data
Sound power level	62	dB(A)
Dimensions and weights
Weight	23.2	kg
