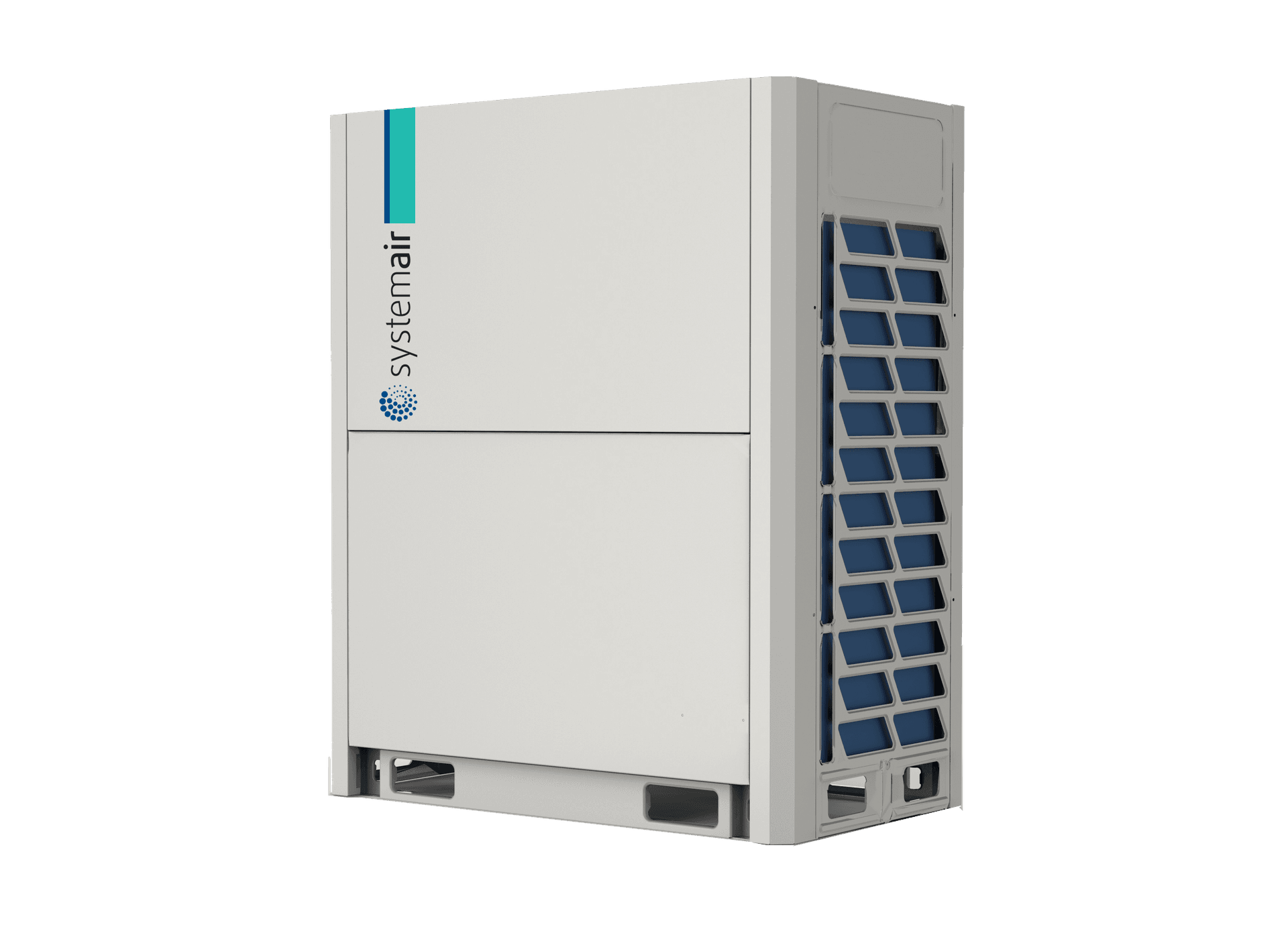

SYSVRF2 (M) AIR EVO HP VRF Systems

VRF 2-pipe • 33,5-90 kW • R410A Outdoor unit with top air discharge and modular design

Scroll DC Inverter compressor with EVI technology
Modular combination up to 3 units / 270kW
Maximum 64 indoor units connection
Can be combined with AHU control kit

This product has been replaced by SYSVRF3 335 AIR EVO-S HP R.

Size

SYSVRF2 M 335 AIR EVO HP R#316212

Frequency: 50 Hz

The SYSVRF2 (M) AIR EVO HP design with top air discharge allows the positioning of multiple outdoor units while reducing the footprint required for installation.

Thanks to the modular design and the incredible piping length the unit can supply cooling/heating to wide application areas while assuring wide operating temperature range.

High efficiency at partial load is achieved thanks to the DC Inverter compressor and the DC fan motor which provide wide capacity output and precise temperature control.

The intelligent defrosting and the precise oil control technology ensure high reliability in any ambient conditions.

The refrigerant cooling of the electronic board assures safe and stable operation even at very high outdoor temperatures while the floating refrigerant temperature improves the room comfort and the system efficiency.

The Auto-addressing function can automatically distribute addresses to indoor units, simplifying VRF system start-up procedure.

Automatic refrigerant charge makes the installation and service more easy and quick.

The SYSVRF2 (M) AIR EVO HP outdoor unit can be connected to one or more AHUs with DX-coil thanks to the SYSVRF2 AHU BOX interface kit, available in different cooling capacities.

The wide choice of centralized controllers such as touch screen controller, BMS and web access allows the full and remote control of the VRF installation.

‌

Certifications

Eurovent Certified Performance

Eurovent Certified Performance is the global benchmark in HVACR certification. The mark guarantees that this product performs as advertised. Check the ongoing validity of our certificates at https://www.eurovent-certification.com

Tech specs

Technical Data

Article name

SYSVRF2 M 335 AIR EVO HP R

Article number

#316212

400V 3~ 50Hz
Performances
Cooling capacity	33.5	kW
Power Input cooling	8.7	kW
EER	3.85	W/W
Heating capacity	33.5	kW
COP	5.1	W/W
Input power, heater	6.57	kW
General data
Maximum current	35	A
Refrigerant type	R410A
Frequency	50	Hz
Phases	3~
Voltage (nominal)	400	V
Refrigerant charge	11	kg
Number of compressors	1	pcs
Number of fans	1	pcs
Air flow	11,000	m³/h
Operating ambient temperature range cooling	-5 to 43	°C
Operating ambient temperature range heating	-25 to 24	°C
Piping diameter, gas line	1 1/8“
Piping diameter, liquid line	½“
Quantity of indoor units connected [MAX]	20	pcs
Sound data
Sound pressure level at 1m, outdoor unit	62	dB(A)
Dimensions and weights
Length	990	mm
Height	1,635	mm
Depth	790	mm
Weight	227	kg
