THOR-E-100-125
THOR-E
THOR-E-100-125#40879
THOR-E-100-125 #40879

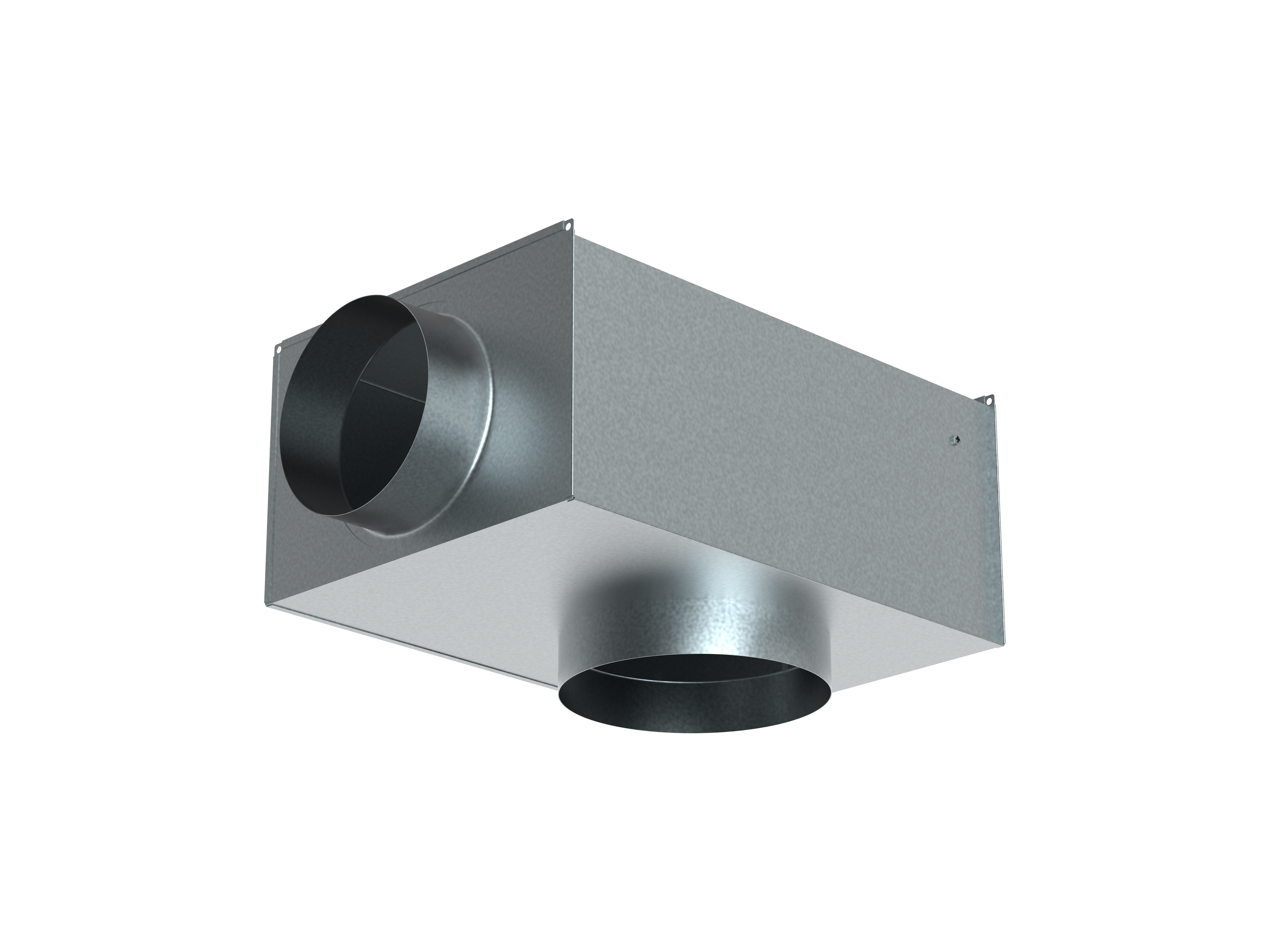

DescriptionTHOR-E is a plenum box. The product is intended for pressure reduction, airflow balancing and sound attenuation as well as for measuring and adjusting the airflow. The product is used together with air diffusers. The product can be used for air supply and extract.DesignTHOR-E is manufactured from hot-dip galvanized steel sheet. The product consists of a plenum box and a connection sleeve without a gasket. The inlet sleeve is equipped with a simple sheet metal damper that is adjustable by pull-ropes from outside.
Tech specs
Technical Data
Article name
THOR-E-100-125
Article number
#40879
Default | |||
|---|---|---|---|
| Dimensions and weights | |||
| Weight | 2.32 | kg | |
Dimensions
Specification
Junction box for air diffusers with round connection. It evenly distributes the air across the entire diffuser, to reduce noise and to adjust the air flow. Optionally can be supplied with a cable-controlled orifice plate installed in the connecting piece.The junction box can be used for exhaust air. Can be used in the supply air with an orifice plate. The duct connection is always one dimension smaller than the outlet connection piece. It is made from galvanized steel. - Size: 100-125
