TSR-100-SW
TSR Basic Diffusers

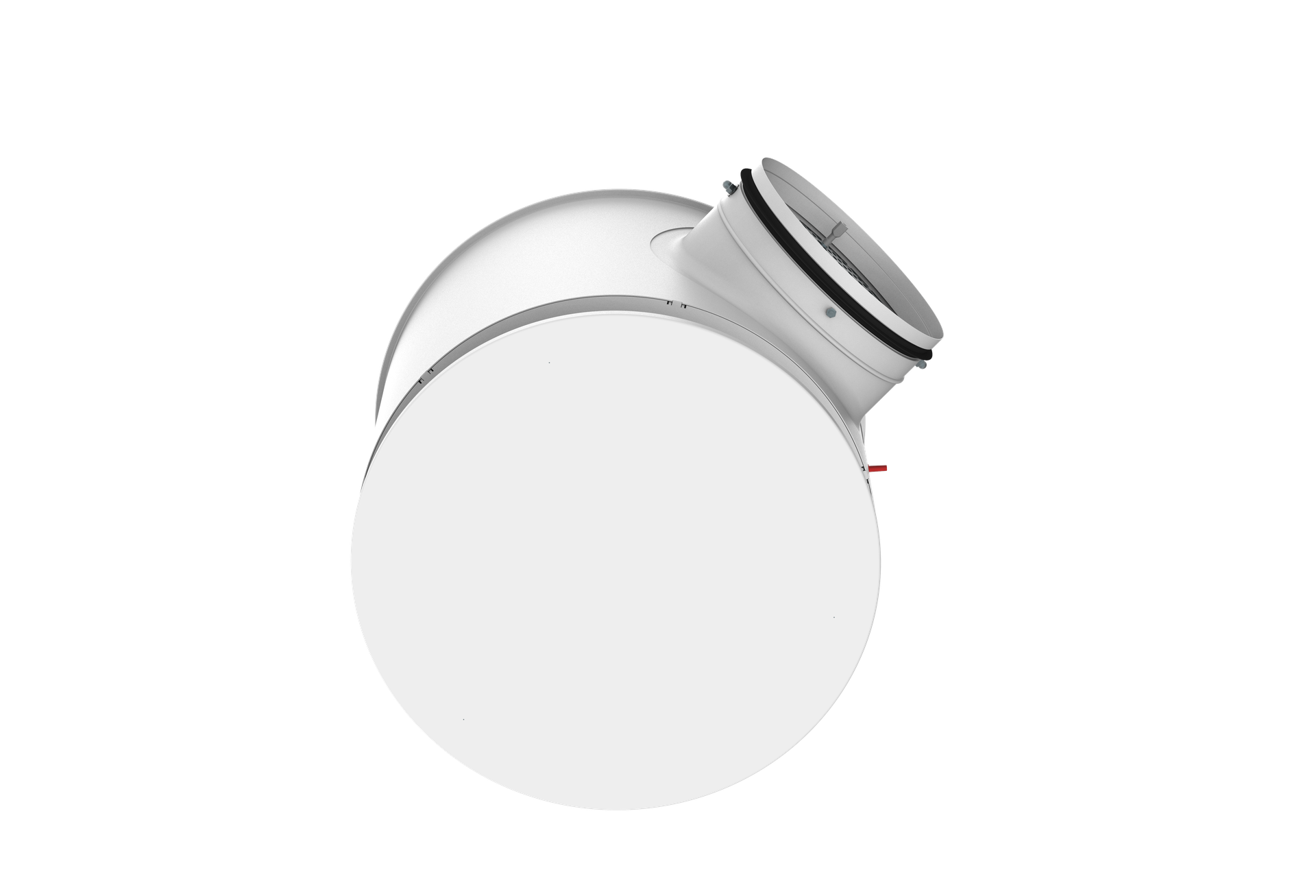

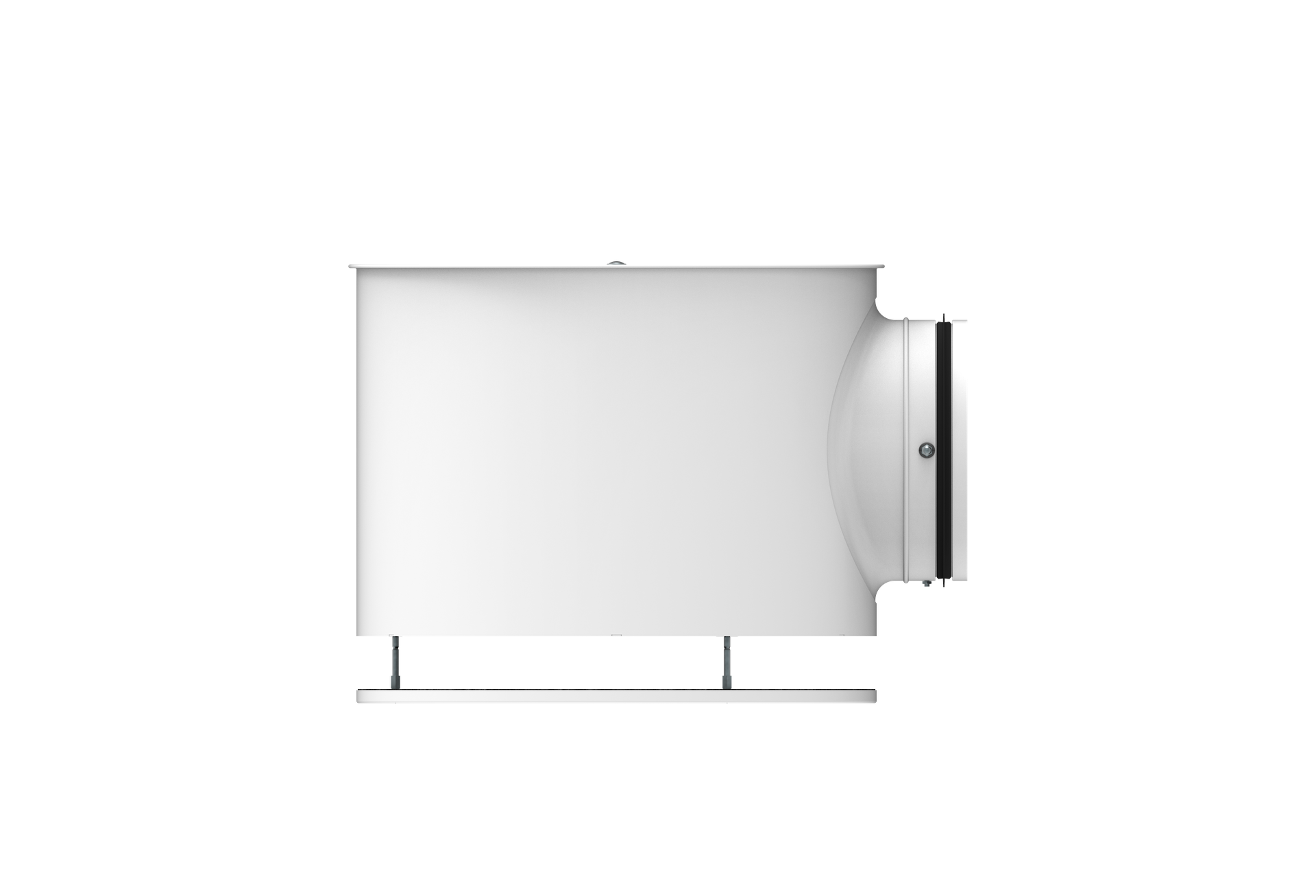

Air supply diffuser for visible ceiling installation in a range of settings
Suitable for visible installation
Air supply diffuser
Complete with plenum box
Sound-insulated diffuser unit
TSR-100-SW#217887
Discrete Visual Appearance
The TSR supply diffuser has a discrete, practically invisible appearance for installation in a range of settings.
Sound-Insulated
The TSR supply diffuser is supplied with a plenum box fitted with fibre-free sound insulation for quiet operation.
Ceiling Mounting
The diffuser is fixed securely by screwing up into the ceiling from the inside of the unit.
Available in different sizes, the TSR ceiling diffuser provides an efficient air supply in settings where a visible installation is unavoidable. Its discrete visual appearance means it is an unobtrusive option. The TSR comes complete with a plenum box that is fitted with a removable damper, test points and fibre-free sound insulation. The TSR is suitable for cooled air with a maximum of dT of 12K.
The TSR is manufactured from galvanised sheet metal with a signal white powder-coated finish and is available in the following diameters: ø 100, ø 125, ø 160, ø 200 and ø 250. The device can also be used to extract air. The diffuser is fixed by screwing it up into the ceiling from the inside of the unit. The front plate is easily removable by pulling it straight out. The sound-absorbing material is cut out of the diffuser’s centre to make room for the screws. The diffusers normally require no maintenance but may be cleaned with lukewarm water and a mild detergent.
Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
Tech specs
Technical Data
Article name
TSR-100-SW
Article number
#217887
Default | |||
|---|---|---|---|
| Nominal data | |||
| Air flow(s) | 120; 147; 177 | m³/h | |
| Duct connection type | Circular | ||
| Pressure drop | 46; 69; 100 | Pa | |
| Sound power level | 24; 29; 34 | dB(A) | |
| Sound pressure level (10 m² room absorbtion area) | 20; 25; 30 | dB(A) | |
| Dimensions and weights | |||
| Weight | 2.7 | kg | |
Specification
Round supply air valve for visible ceiling mounting with integrated junction box. The cover has a 3-stage adjustable annular clearance. The valve is made of sheet steel and is powder-coated in signal white (RAL9003, gloss 30%). Other RAL Classic colors are available on request. Available in nominal widths from Ø 100 to Ø 250 mm. It can also be used for exhaust air. The junction box has a side connection for direct installation on, for example, a spiral tube. The connection is provided with a lip seal. - Size: 100
