AQUA-H Linear Diffusers
Linear slot diffuser ideal for swimming pool installations
Modern slim and compact design
Low noise at sufficiently high air discharge velocity
Homogenous discharge pattern on the whole diffuser length
Single diffuser segments of various lengths
Segments with detachable slot dividing profiles and 90° angle segments available
Installation in multiple diffuser segment arrays is possible
Robust design enables walking on the installed diffuser
Accessory plenum boxes with bottom or side duct connection
Durable Construction
Thanks to the robust design of AQUA-H it is safe to walk on the installed diffuser
Versatility
AQUA-H comes in 6 different sizes, which can be combined into arrays to reach your desired diffuser length
Corner Element
The AQUA-H-CE corner element makes it possible to install the AQUA-H diffusers in a continuous loop array
Design
The modern slim and compact design of AQUA-H ensures that it will fit in seamlessly into your desired environment

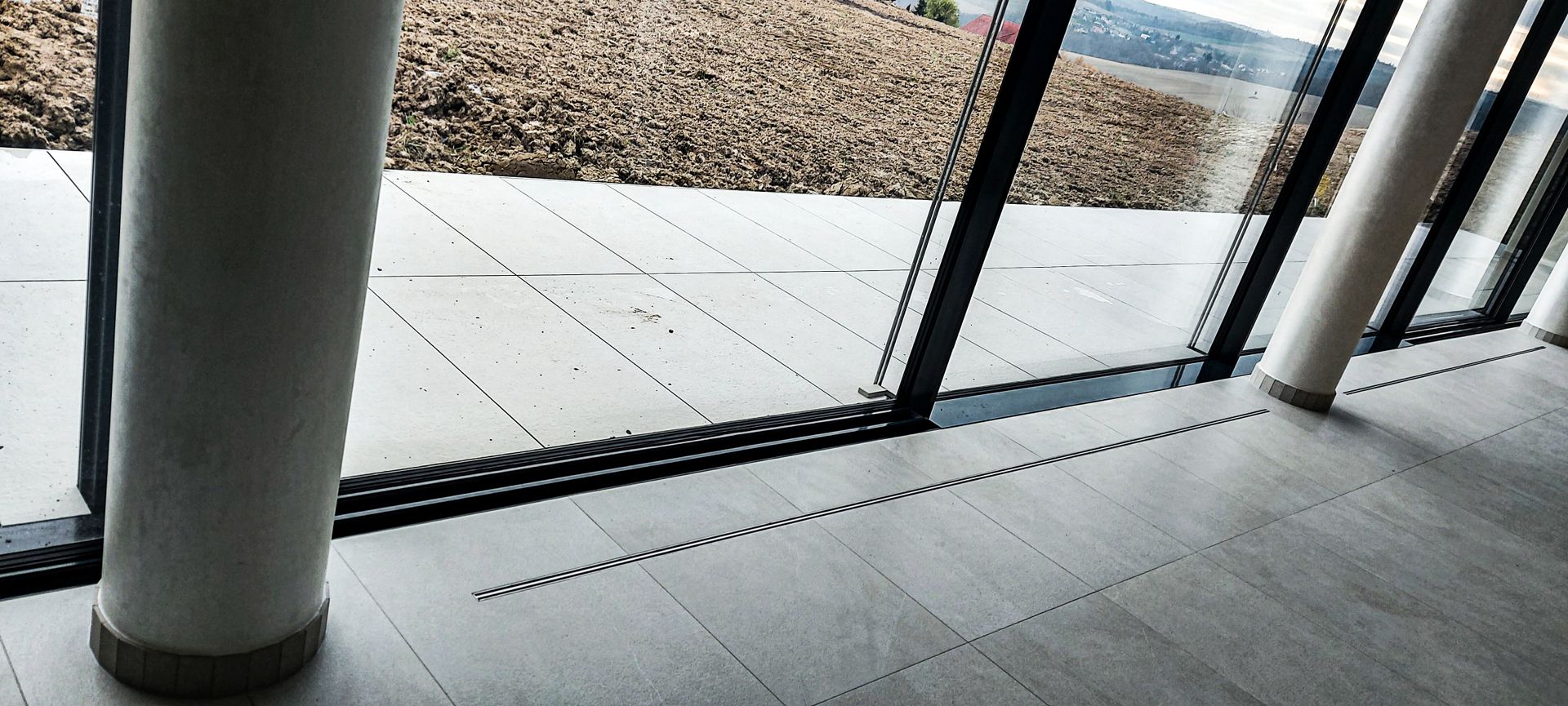

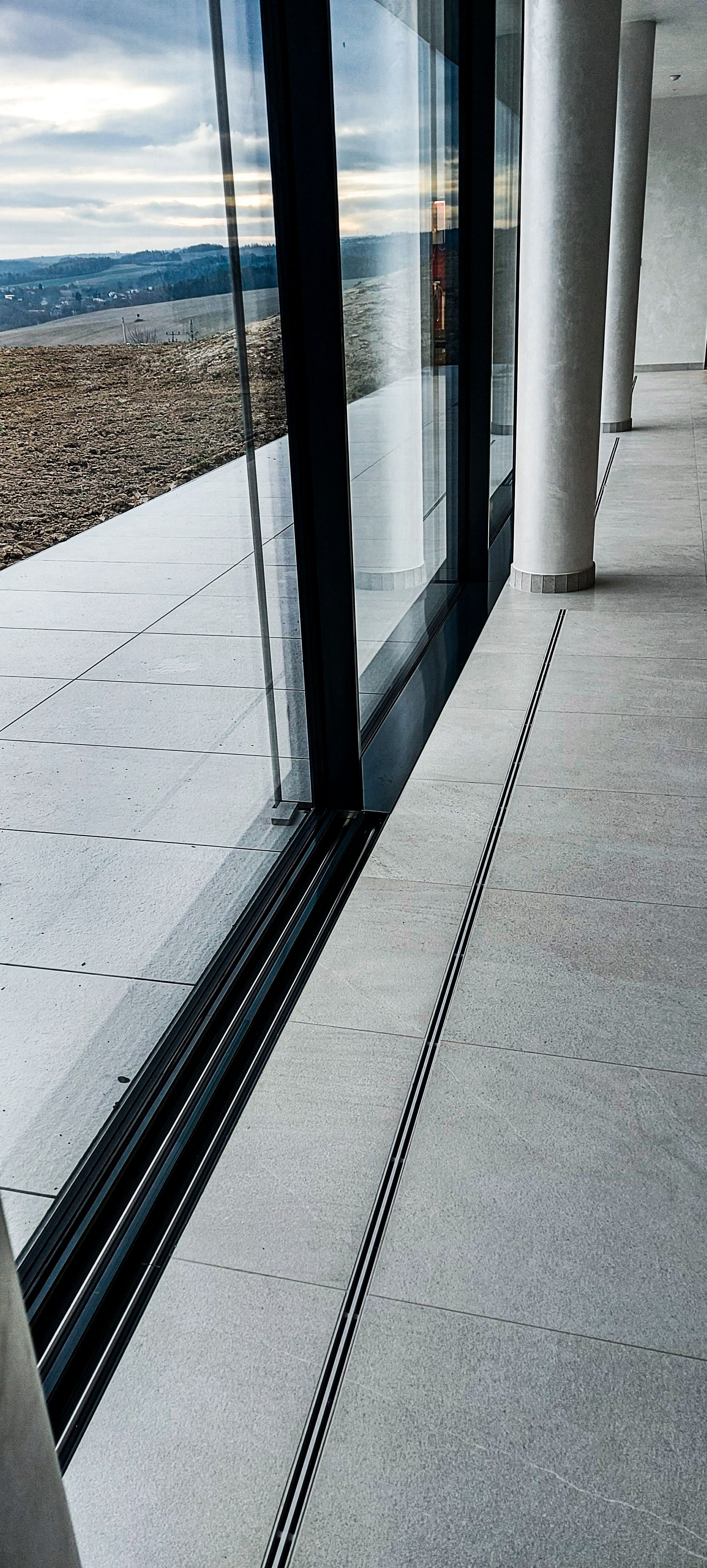

AQUA-H is a linear slot diffuser ideal for swimming pool installations. The product is intended for air supply in ventilation systems for swimming pools and wet spaces with large windows or glass walls. The product is installed into the floor and helps protect the glass surfaces from the condensation of water.

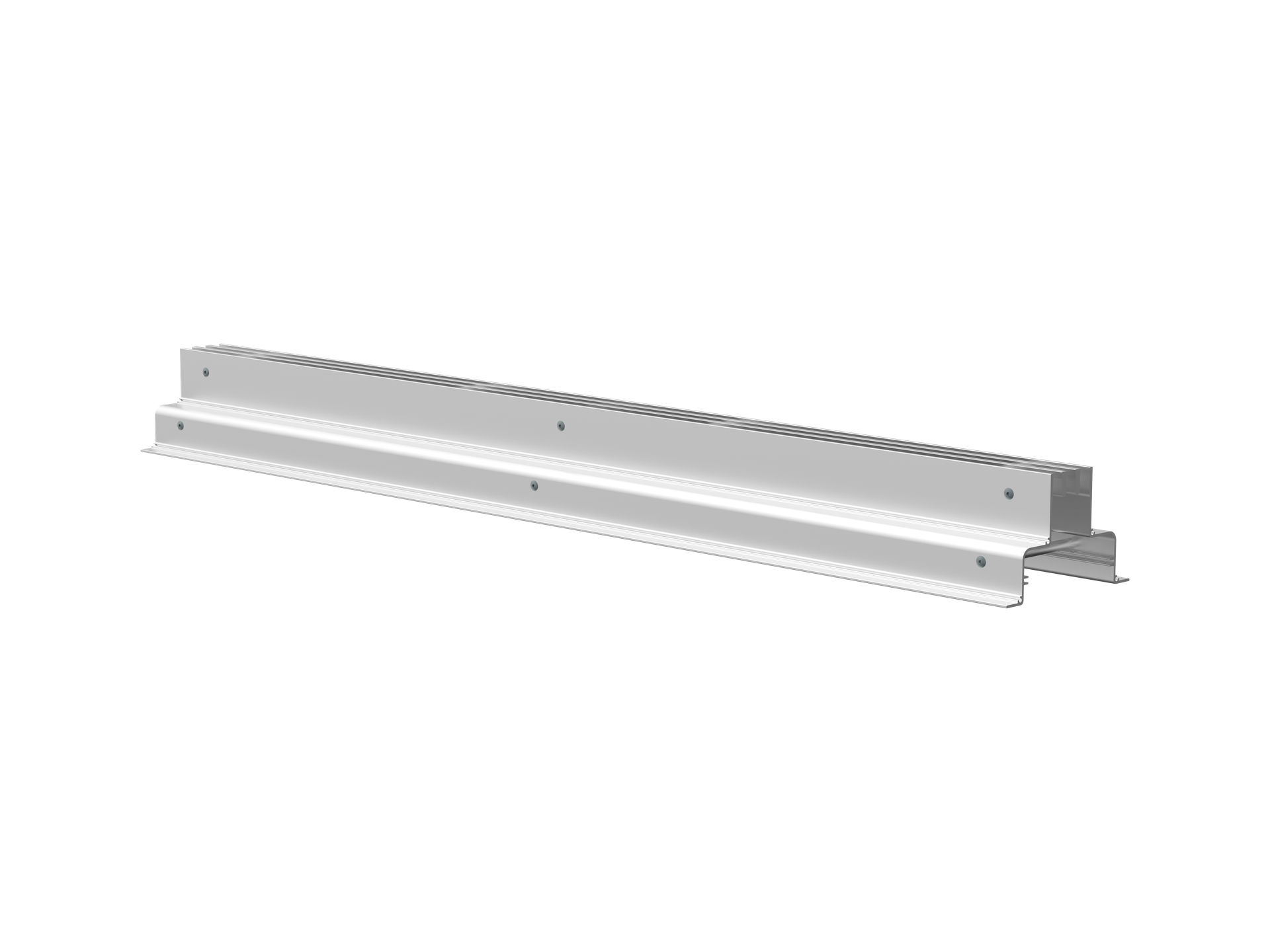

AQUA-H is manufactured from anodized aluminium profiles and stainless steel thread bolts. The product consists of a pressure-equalizing console and vertical air discharge slots. The console is open on the bottom. The consoles can be connected into a multiple-segment array by connecting pins (accessory CP-HELLA). The product is provided with a natural anodized surface finish.
)
Keep the water condensate out!

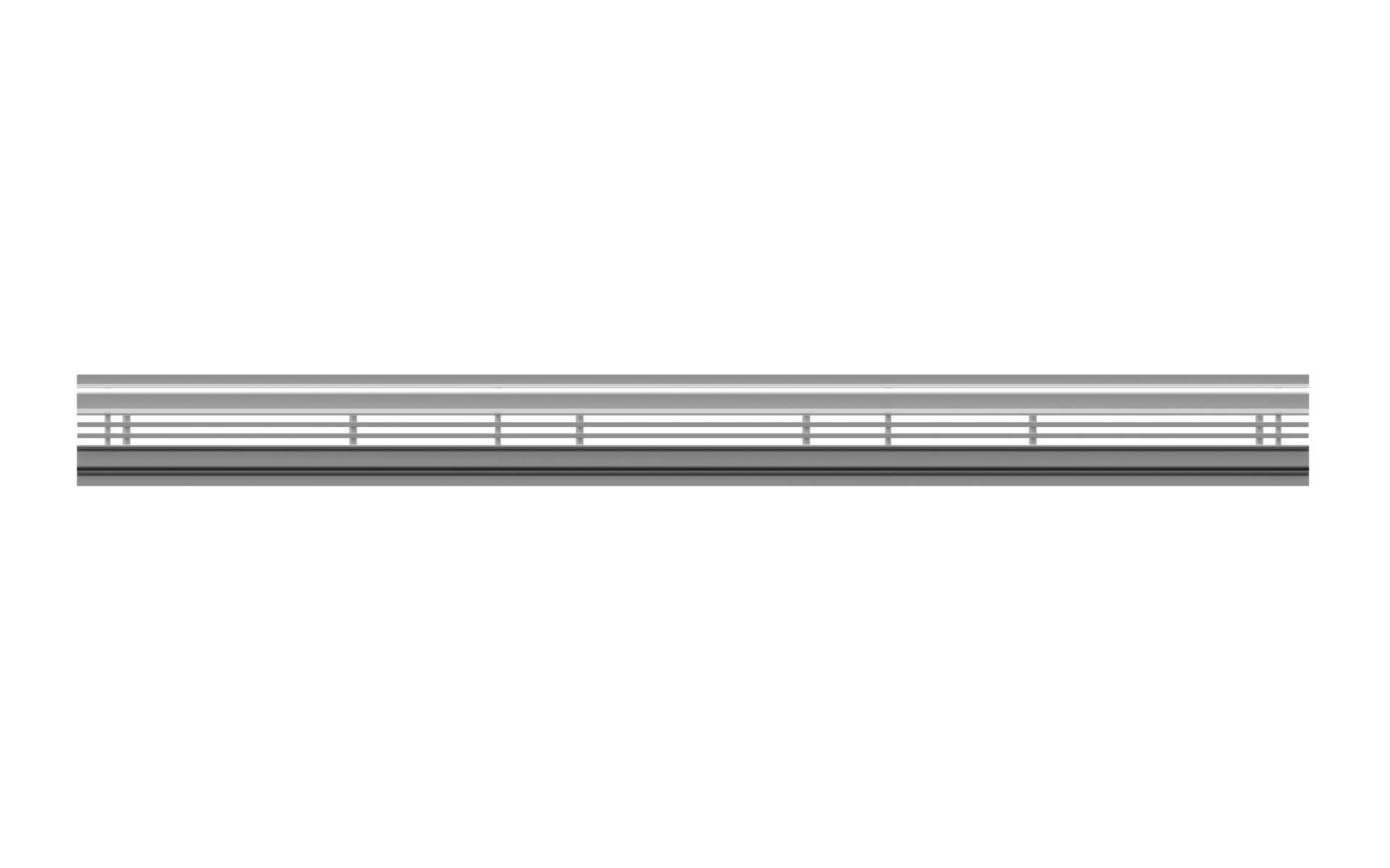

AQUA-H Linear slot diffuser
)
Durable Construction
Thanks to the robust design of AQUA-H it is safe to walk on the installed diffuser
)
Versatility
AQUA-H comes in 6 different sizes, which can be combined into arrays to reach your desired diffuser length
)
Corner Element
The AQUA-H-CE corner element makes it possible to install the AQUA-H diffusers in a continuous loop array
)
Design
The modern slim and compact design of AQUA-H ensures that it will fit in seamlessly into your desired environment
