CAP-F-N-125-600-16-SW

CAP-F-N Nozzle Diffusers

Adaptable airflow diffuser with quiet operation suitable for comfort ventilation systems

  • Versatile

  • Compact

  • High airflow capacity

  • Excellent air induction

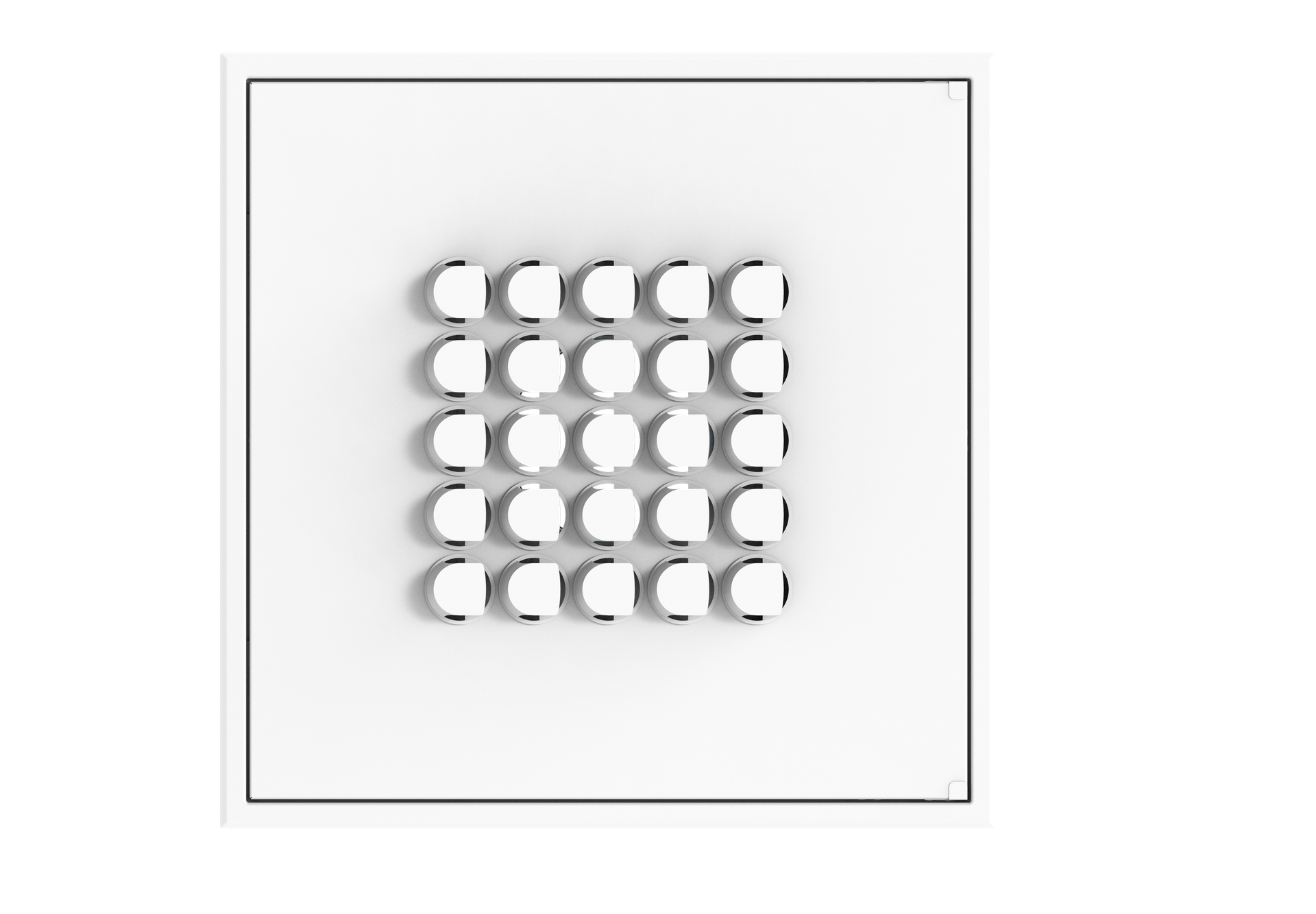

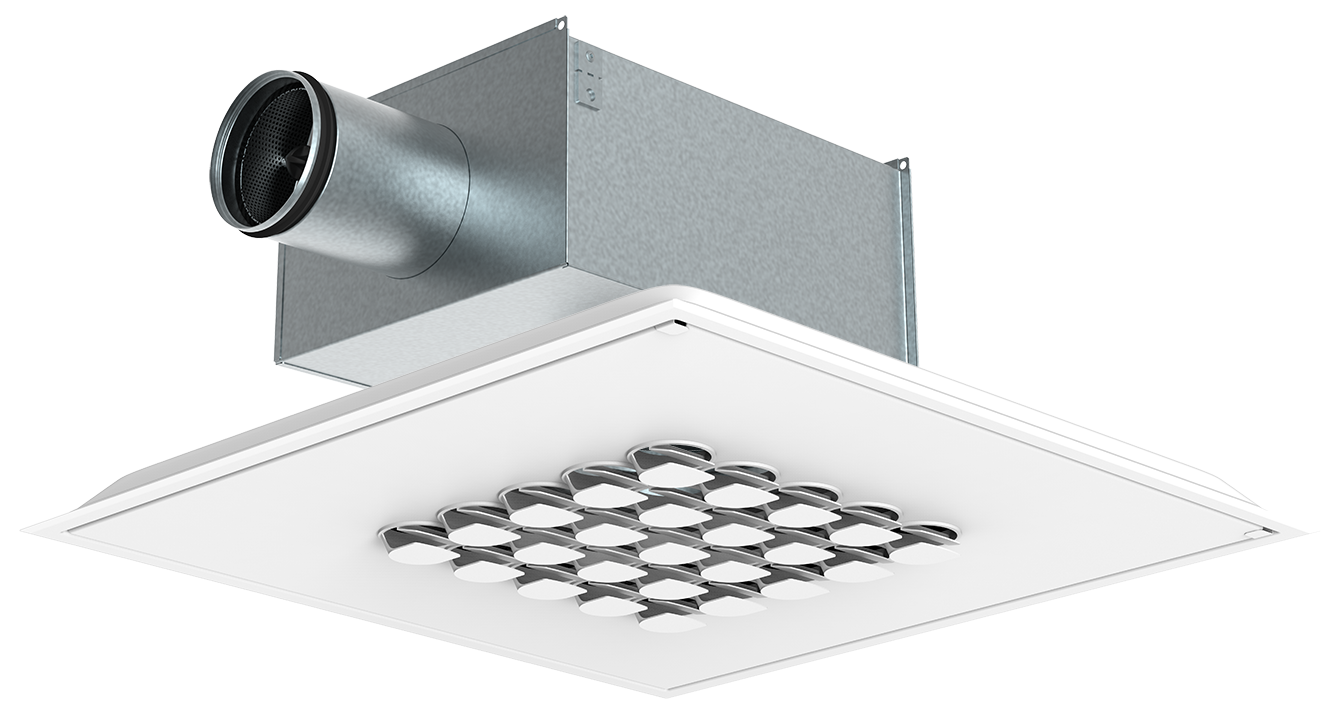

CAP-F-N-125-600-16-SW#251892

Adjustable Use

The CAP-F-N is a multi-nozzle diffuser with versatile adjustability of air discharge patterns.


Ergonomic Design

The diffuser has an ergonomic, compact design making it suitable for a range of different applications.


Quiet Operation:

The CAP-F-N diffuser combines high levels of performance with quiet overall operation, making it suitable for noise-controlled settings.


The CAP-F-N multi-nozzle diffuser is an effective and versatile option with ergonomic features and a compact design. Available in a range of sizes, it has been designed primarily for air support in comfort ventilation systems for offices, shops, medical rooms and school classrooms. It allows for easy installation in a T-bar false ceiling.

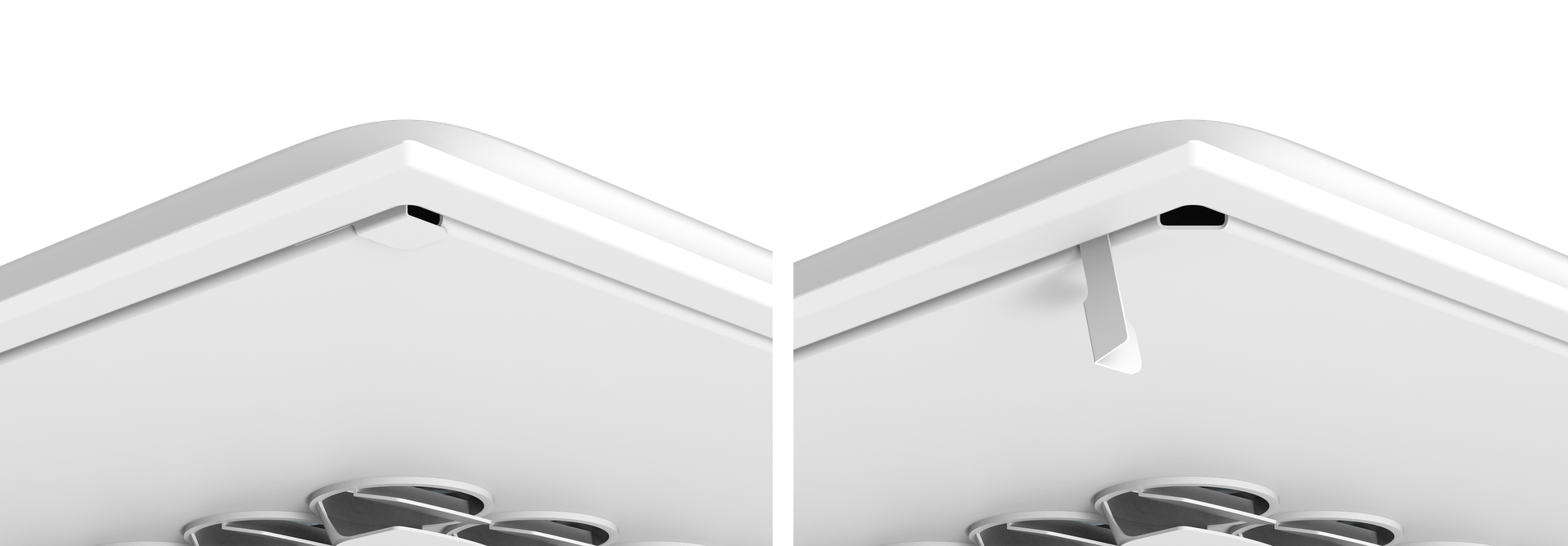

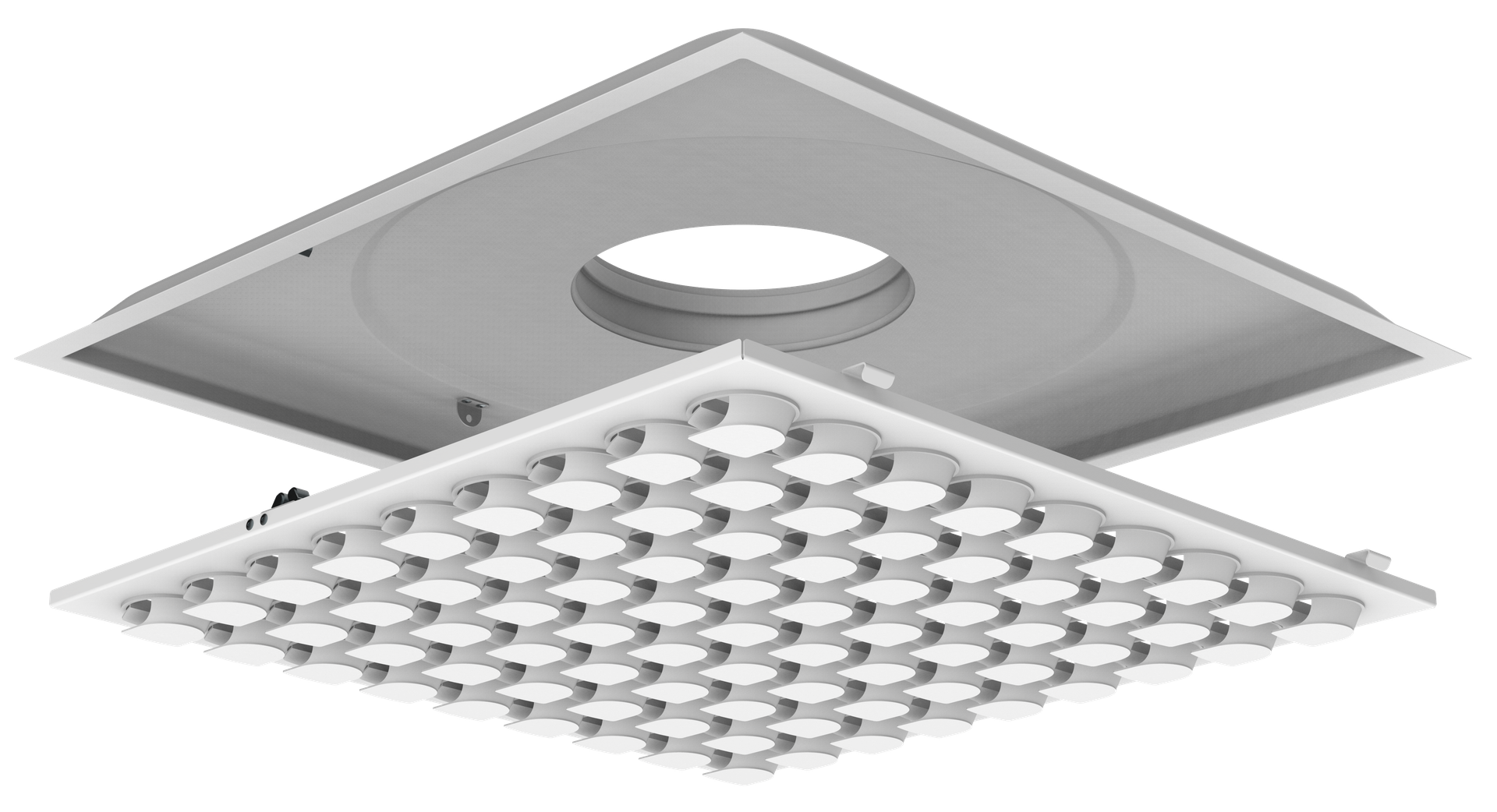

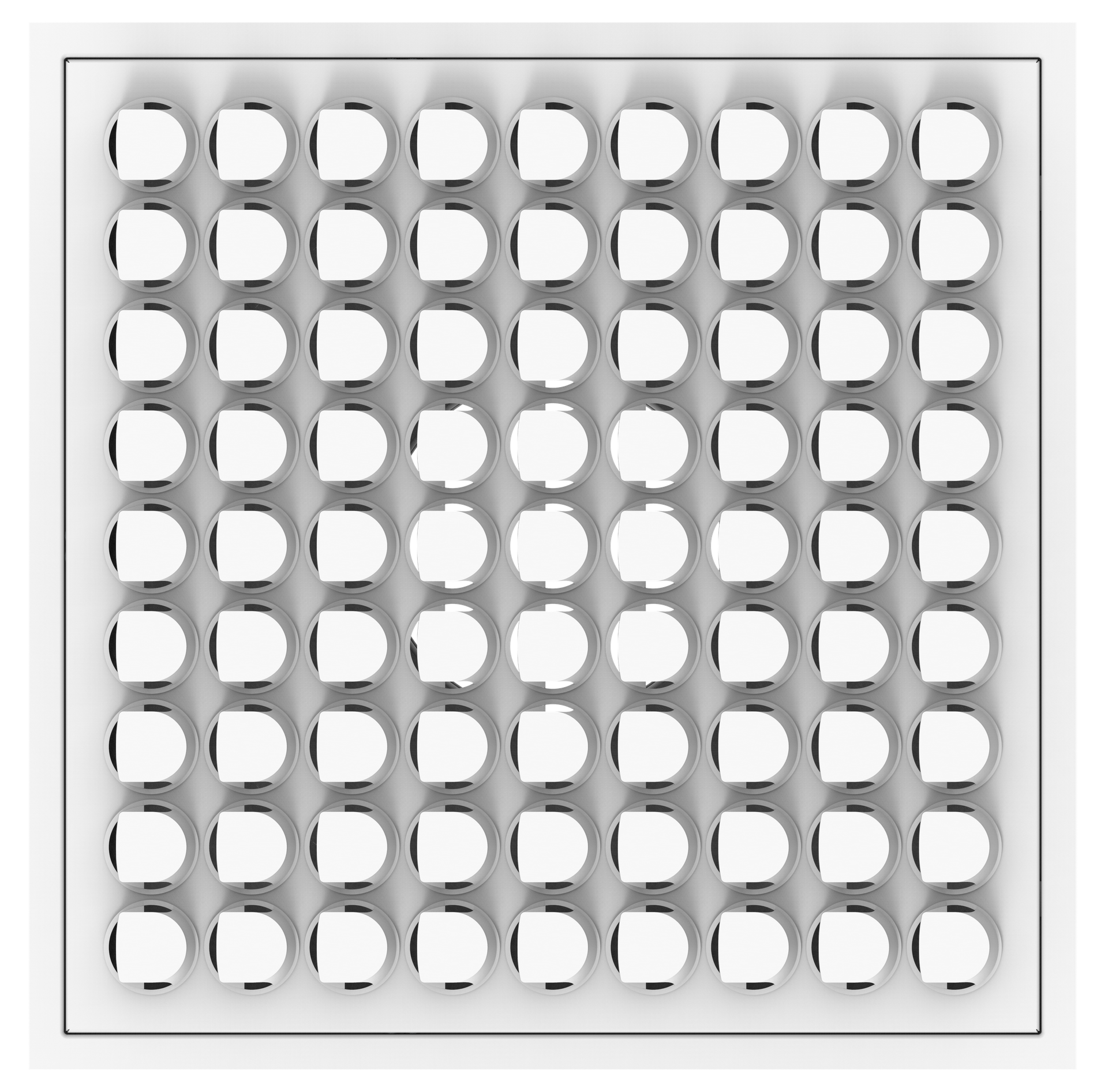

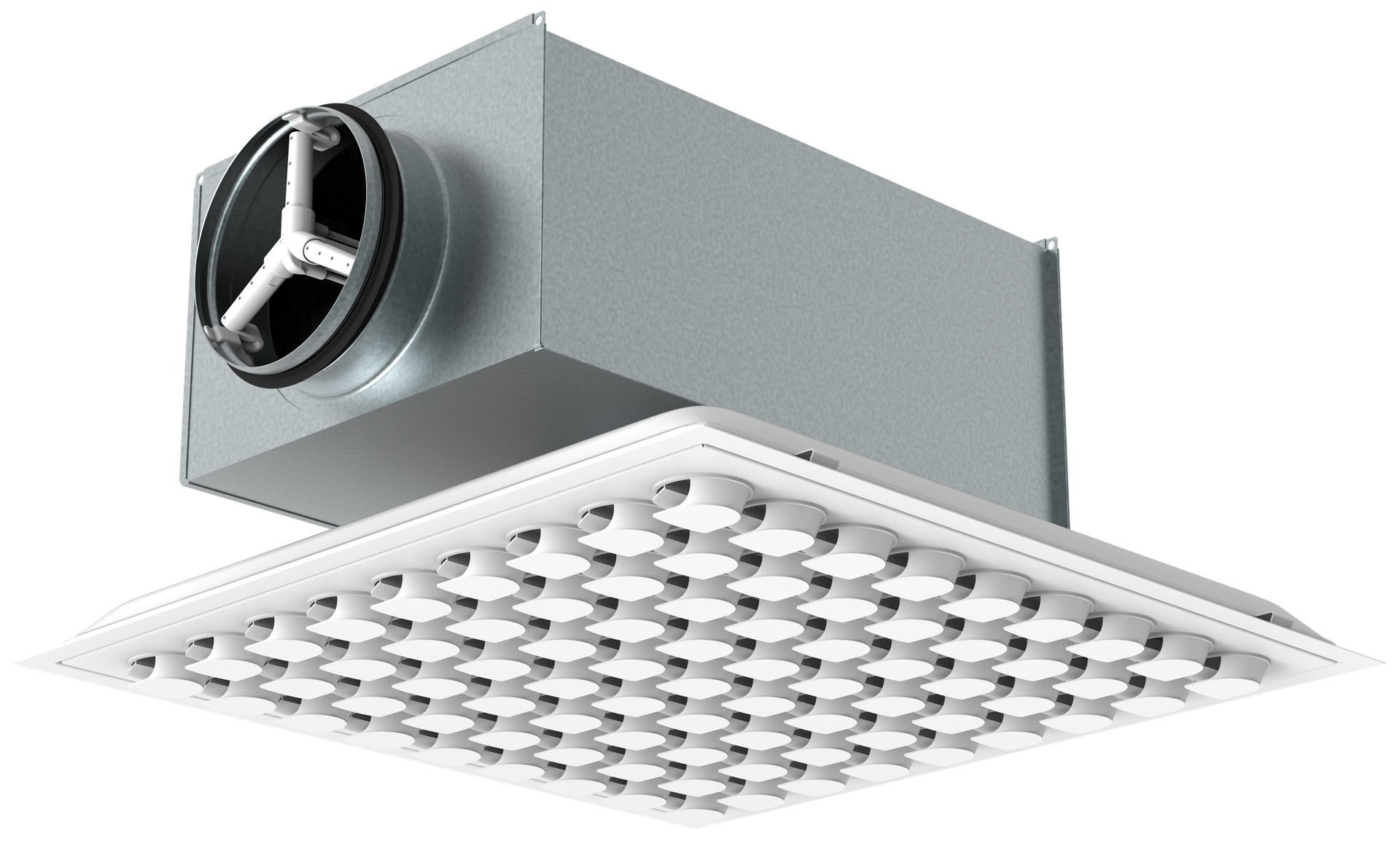

Made from galvanised steel, it consists of a backing box with a vertically oriented rubber gasket sealed circular connection and a diffuser plate with polymer nozzles, attached by spring clips. The nozzles allow for 360° rotation in the plane of the diffuser plate. This allows for achieving the desired air discharge pattern. The backing box frame has dimensions to fit into the T-bar false ceiling either with raster 600 mm or 625 mm. The unit combines high airflow capacity and effectiveness, with low sound level and moderate pressure drop, making it suitable for use in environments where noise levels need to be controlled.



Your order, your style!

Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision


Certifications

Loading...

Technical Data

CAP-F-N-125-600-16-SW
#251892

Specification

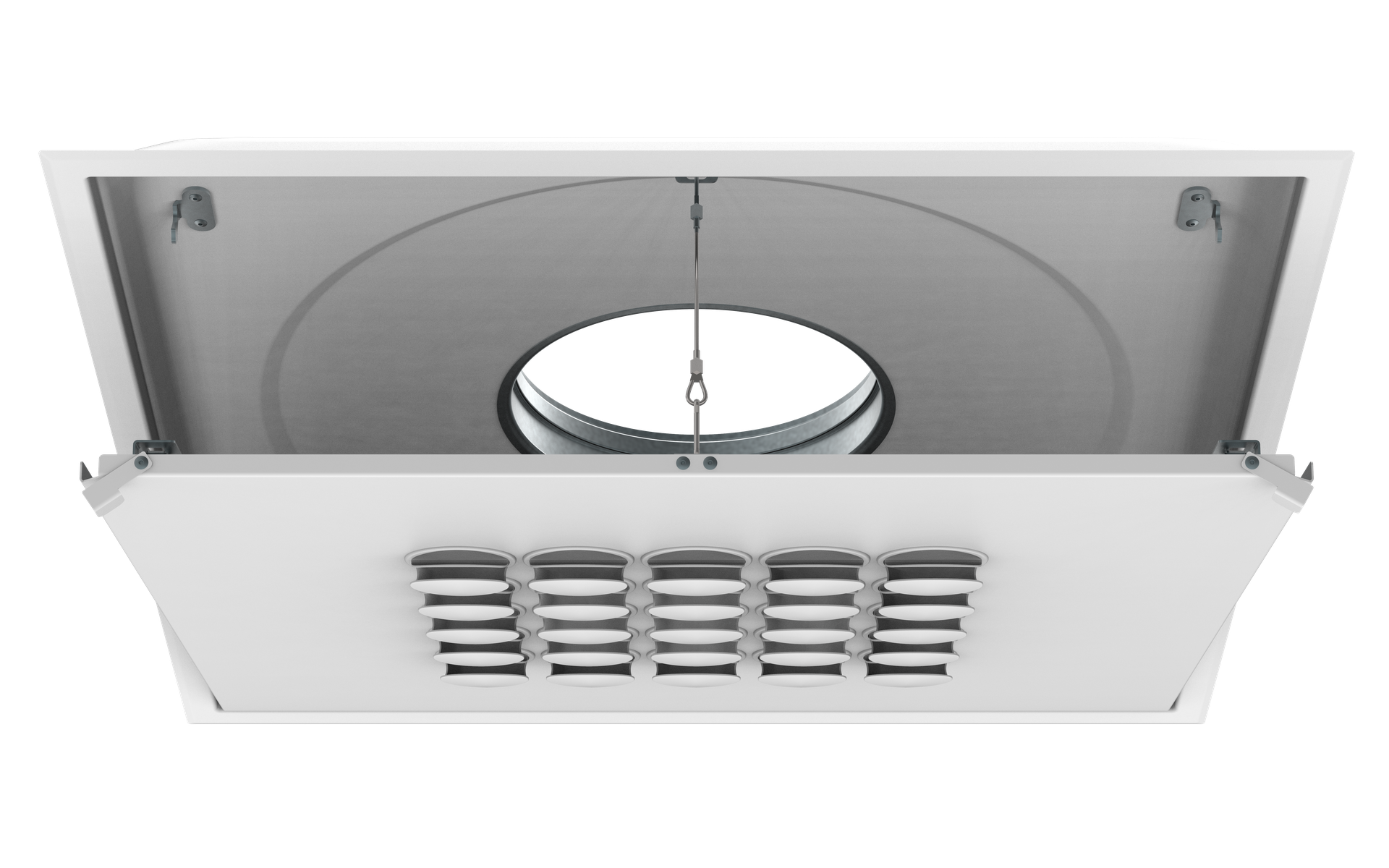

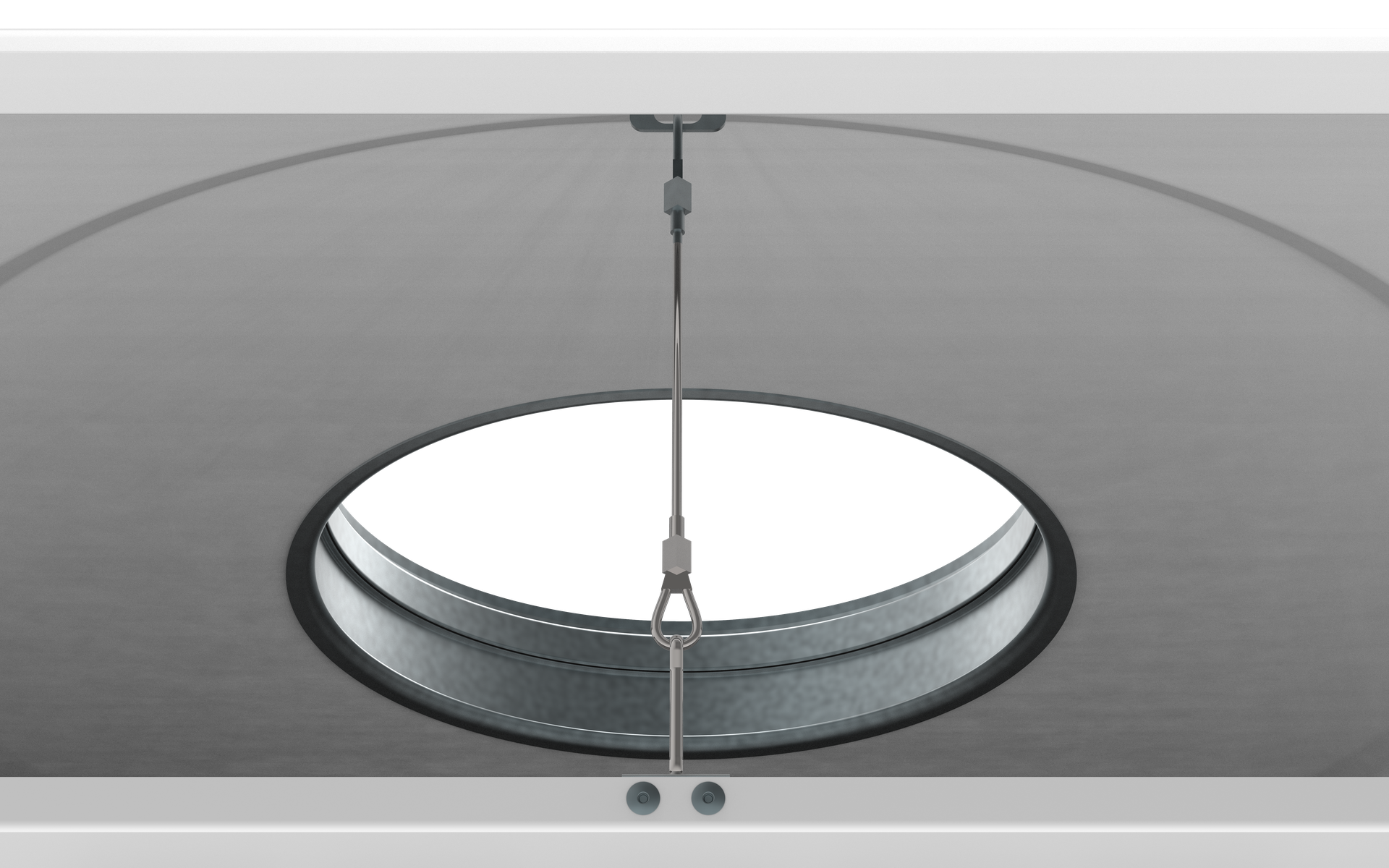

Ceiling diffuser with directionally dependent nozzles. Can be used to supply air with constant pressure loss and noise level in many different operating modes, such as horizontal, vertical, diagonal, in a single or multi directions, or helical. Due to the excellent induction, it can be used for heating and cooling even with small amounts of air. The external dimensions fit 600 x 600 mm and 625 x 625 mm grid ceilings and are available from 16 to a maximum of 81 nozzles.DesignThe diffuser is manufactured from galvanized sheet steel with electrostatic powder painted to RAL. The nozzles are made of ABS plastic. The round connection piece of the support casing is provided with a lip seal. The diffuser is secured to the support casing with simple hinges and spring clips and a safety cable is attached to the support casing as an additional fall arresting device. The front panel has a concealable penetration so that measuring hoses, for example, can be used for calibration when the front panel is installed. - Dimensions: CAP-F-N-125-600-16- Accessories: THOR-F-100-125- Discharge: Radial air flow- Airflow direction: Supply
