BURE Variable Geometry Diffusers
High induction diffuser for heating and cooling in big halls and industrial buildings
Adjustable geometry
High capacity
Compact size
Large throw length
High-Capacity Ventilation
The BURE provides effective, high-capacity ventilation for large halls and industrial buildings.
Heating and Cooling
The BURE high induction diffuser can provide both heating and cooling in a variety of settings.
Pressure Drop Variation
There is a small influence of geometry adjustment on the pressure drop variation.

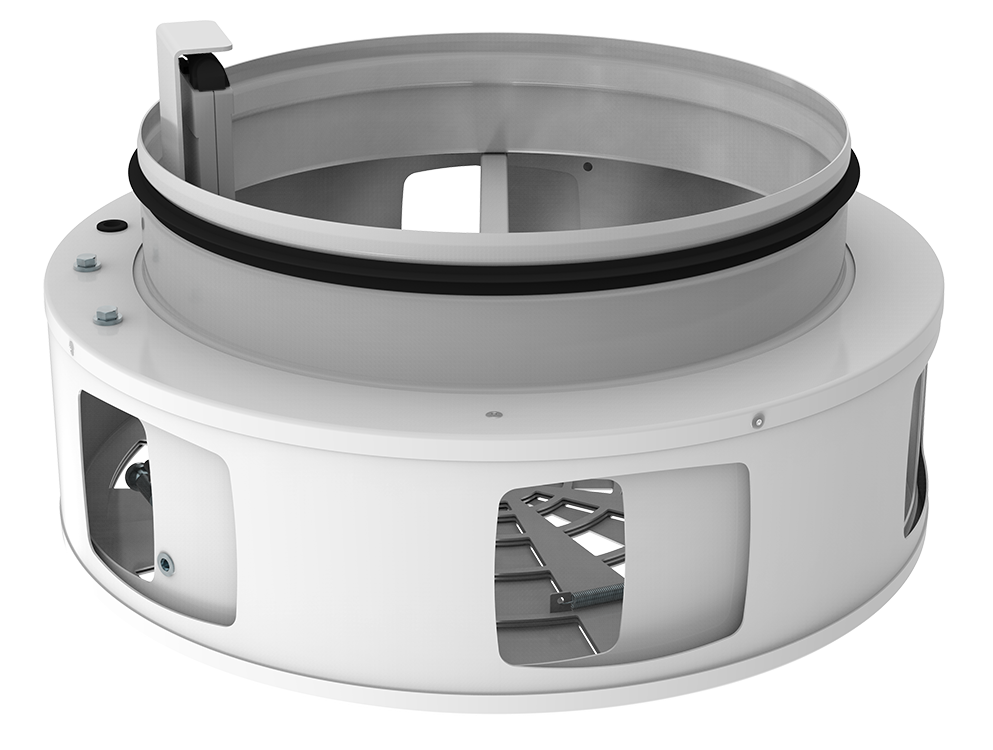

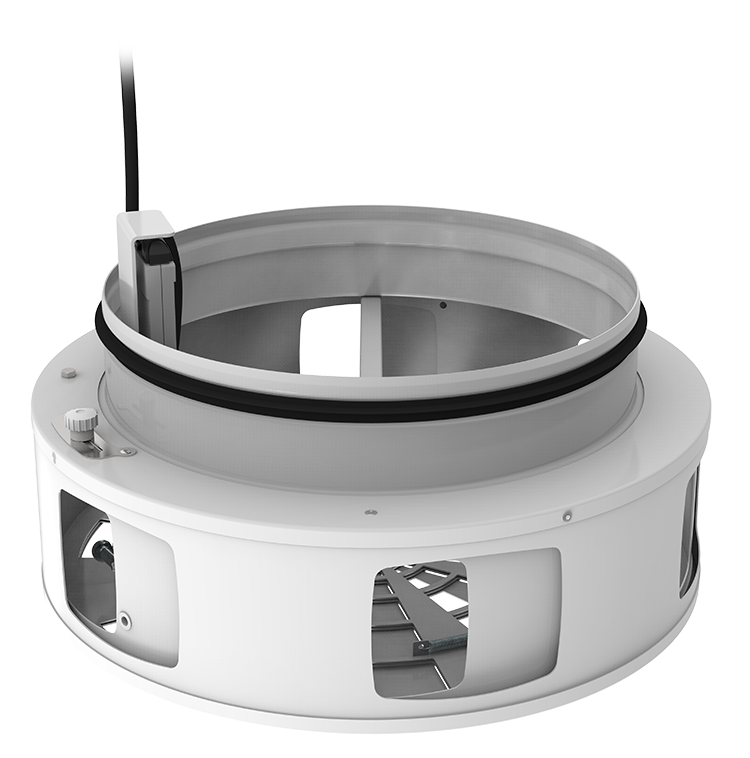

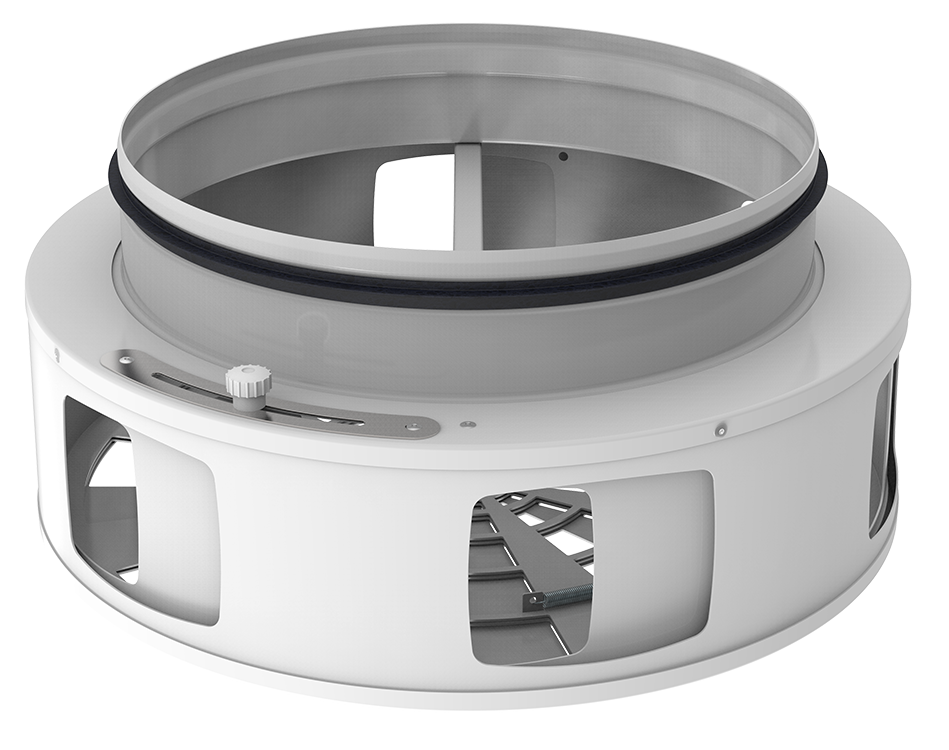

Available in different sizes, BURE is an adjustable geometry diffuser for effective and comfortable high-capacity ventilation of big halls and industrial buildings. It is designed for effective heating and cooling. As the installation height is between 4m and 12m, it is suitable for installation in large industrial and public halls. The air discharge pattern can be adjusted manually (BURE-HC), by an electric actuator (BURE-MC, BURE-M2) or by a thermal actuator (BURE-TC).

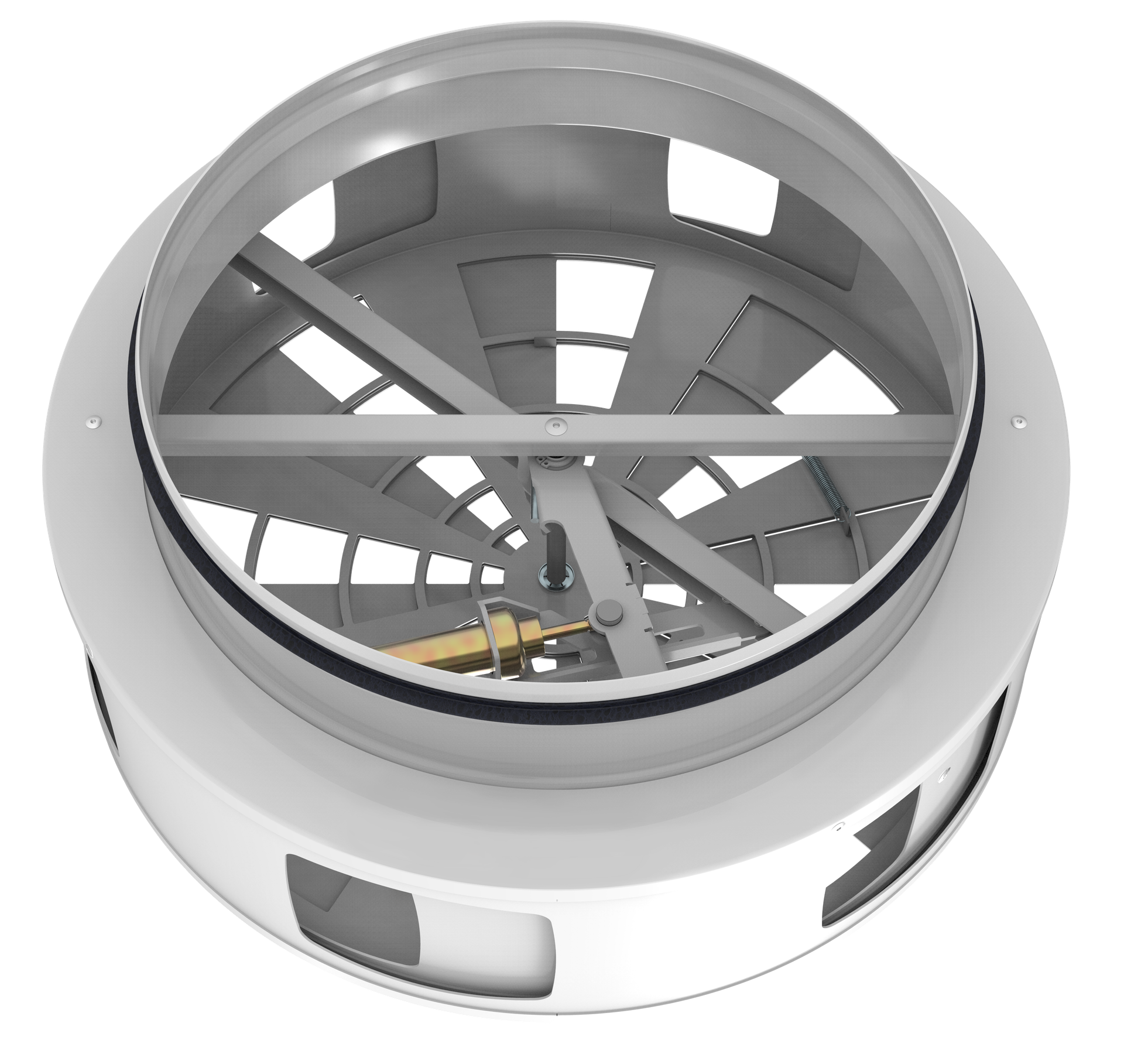

The control mechanism of all BURE options adjusts the flow pattern continuously in any selected position between an entirely horizontal and vertical discharge pattern adjustment. The BURE consists of an inlet spigot and an inner and outer cage with openings to supply air to the peripheral surface and the underside. Dependent on the particular operation method, the openings in the peripheral surface (cooling, horizontal air stream) or the underside (heating, vertical air stream) are opened.

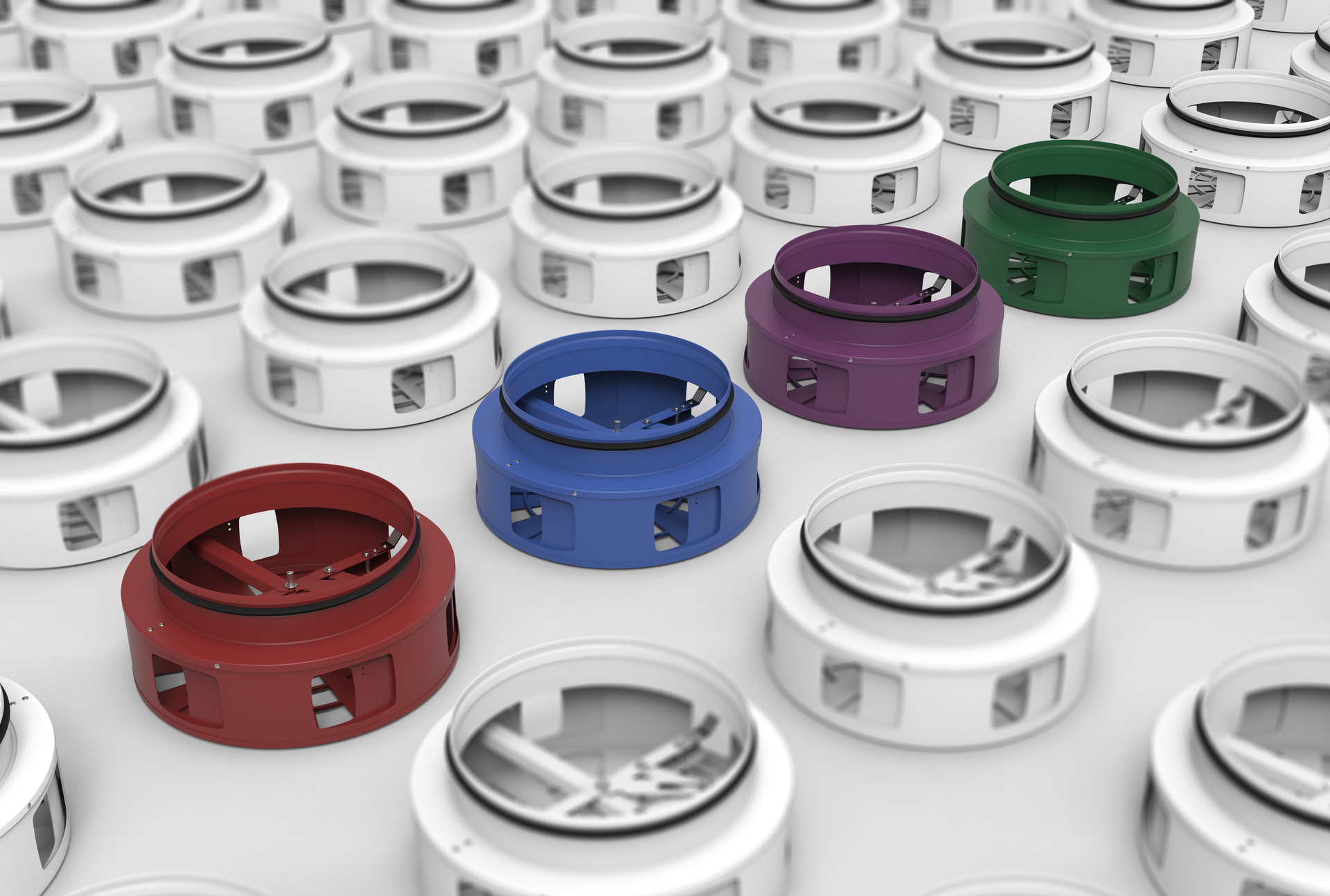

Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
