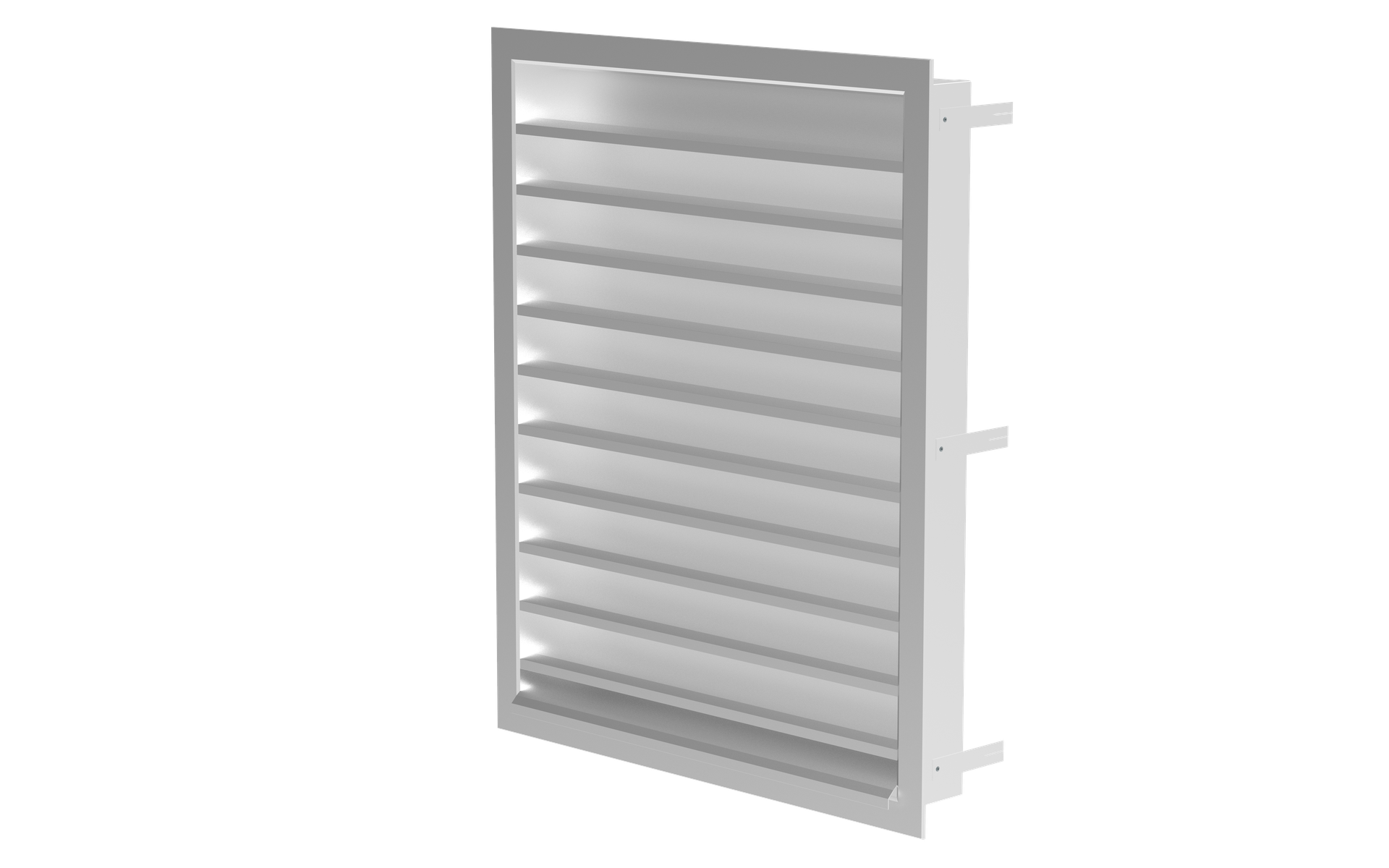

PZALS Louvres
Aluminium external louvre with wide blades for protection against rainwater penetration
Robust
Mechanical stability
Effective rainwater separation
External blades
Rainwater Separation
The unit is intended to protect the outside supply and exhaust wall openings against rainwater penetration.
Duct or Wall Installation
The PZALS Louver can be installed into a duct with a mounting frame and screw or onto the wall by bending the legs of a mounting frame.
Range of Finishes
The PZALS Louver is available in a vast range of colours and finishes to suit different installations.

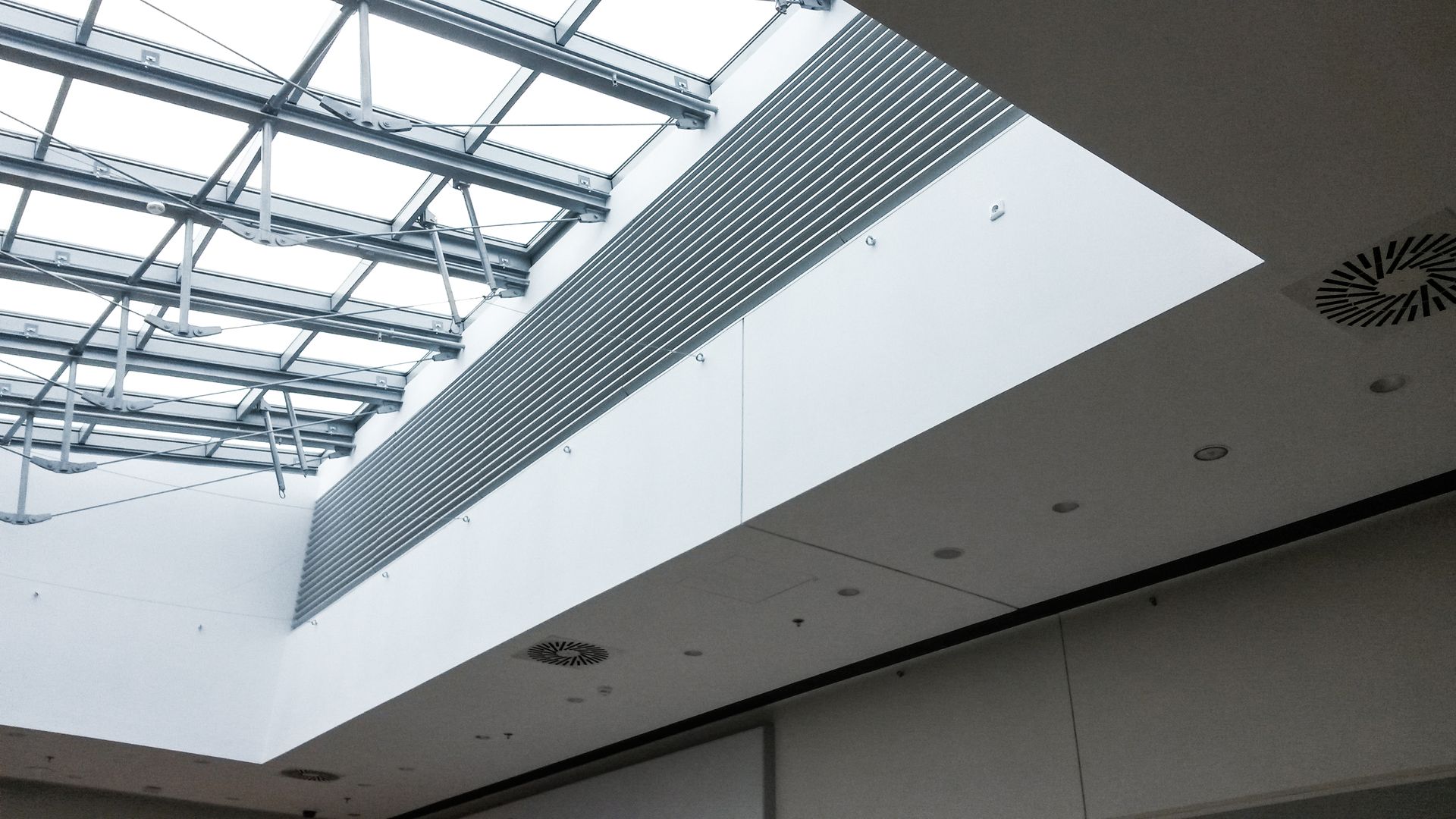

PZALS is an external aluminium louver with external blades. The product is intended to protect the outside supply and exhaust wall openings against rainwater penetration. The water is blocked from entering the duct with air speed up to 3 m/s. The unit also blocks the view into the inside of the duct. PZALS is ideal for building facade ventilation transitions for air supply or extraction.

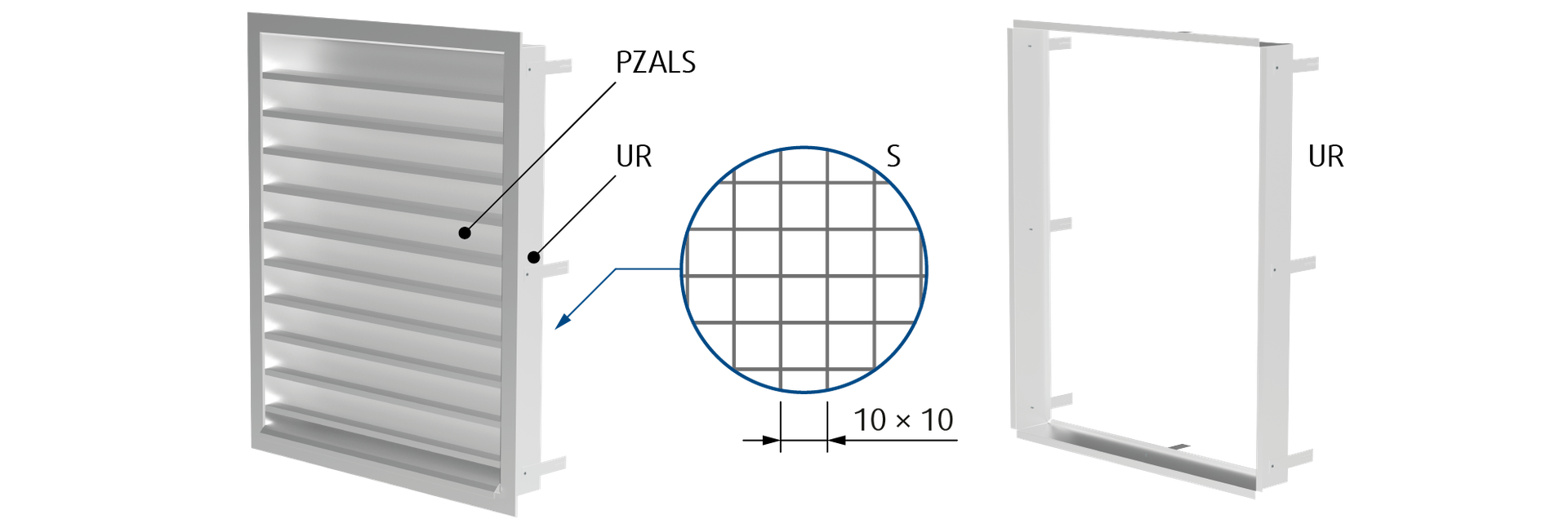

The PZALS louver is manufactured from anodized extruded aluminium profiles. The product consists of an outer frame, an inner frame with a built-in ledge, blades with 90 mm spacing and can be equipped with an "S" welded mesh screen (raster 10mm × 10 mm) and mounting frame. The mounting frame contains screw openings for easy installation into the end of a duct and bendable legs for easy installation into a wall. Other sizes are available in this range.
