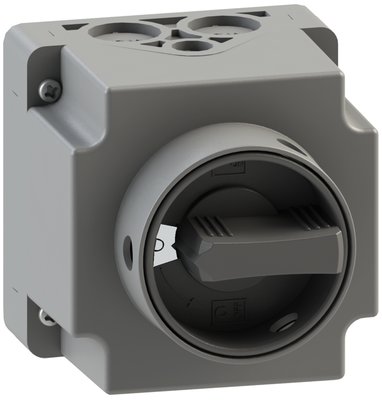

REV
Service-switch for single, 3-phase or multispeed-motors
UV & weather resistant
Lockable
Versions in black/grey or red/yellow available
Versions with cables and mounting-set available
UV & Weather Resistant
REV service switches are made out of UV and weather-resistant plastic/metal for long durability in high IP protection class.
Flexible
Switches are available in different version:
As service- or emergency-switch
ATEX- protected
With or without cables
For different motor powers
For different number of poles
With auxiliary contacts
With fire protection class F300/F400
Standard-versions in red/yellow:
Service- and EMERGENCY OFF switch made out of UV- and weather-resistant plastic.
Not suitable for operation in explosive atmospheres.
EMERGENCY OFF switches must be installed directly next to or on the fan and must be freely accessible.
Standard-versions in black/grey:
Service switch made out of UV and weather-resistant plastic.
When operating with explosion-proof fans, the switch must be installed outside the explosive atmosphere.
Version fire-protected in red/yellow:
Service- and EMERGENCY OFF switch for use with smoke exhaust fans.
Fire protection class: F300 or F400 according to EN 12101-3.
Can be locked in the "On" and "Off" position via padlocks.
Not suitable for operation in explosive atmospheres.
EMERGENCY OFF switches must be mounted directly next to or on the fan and must be freely accessible.
Supplied without cable glands, glands available as optional accessories.
Version fire-protected in black/grey:
Service switch for use with smoke exhaust fans.
Fire protection class: F300 or F400 according to EN 12101-3.
Can be locked in the "On" and "Off" position via padlocks.
Not suitable for operation in explosive atmospheres.
Supplied without cable glands, glands available as optional accessories.
Version ATEX-protected:
Service- and EMERGENCY OFF switch for potentially explosive atmospheres made out of polyester resin (RAL 7024).
Can be locked in the "Off" position via padlocks.
EMERGENCY OFF switches must be mounted directly next to or on the fan and must be freely accessible.
Supplied without cable glands, glands available as optional accessories.
