F-C2 Circular Fire Dampers

Cartridge-style fire damper

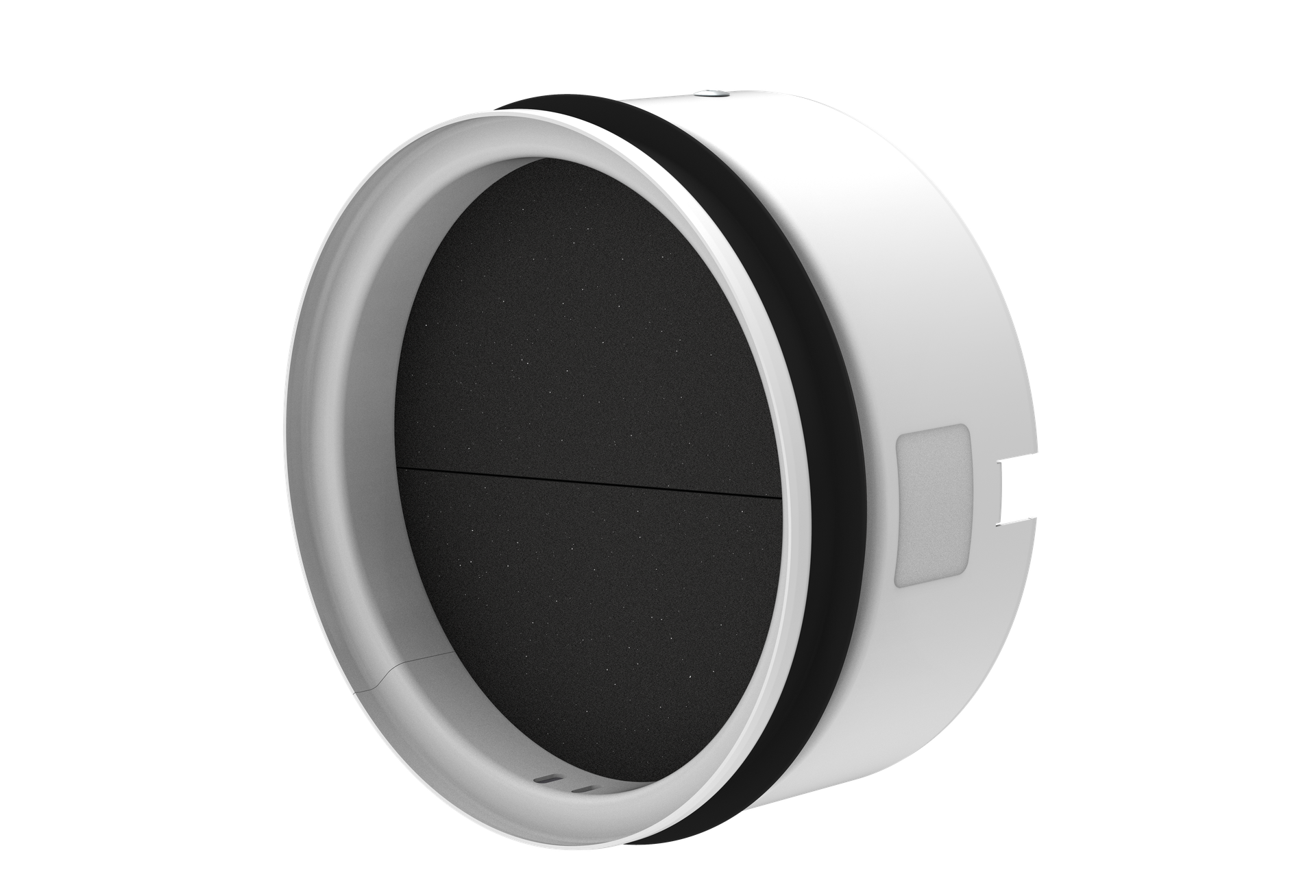

F-C2, Cartridge-style fire damper for effective, passive fire protection
F-C2
Circular Fire Dampers · Cartridge-style fire damper for effective, passive fire protection

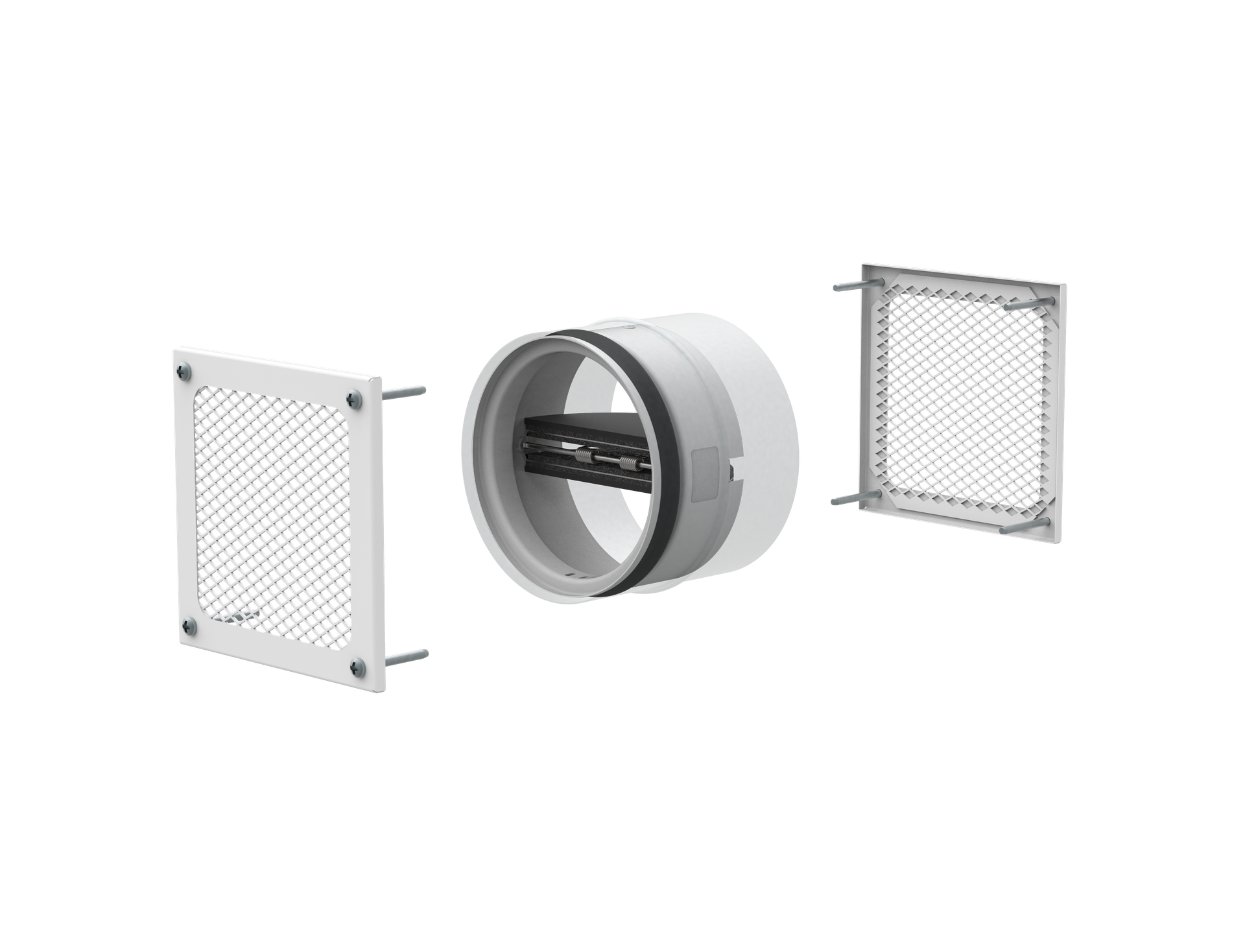

  • Cartridge design

  • Resistivity EI60S, EI90S, EI120S in one product

  • Closed state detection

  • Valve installation

  • Available from 80 mm size

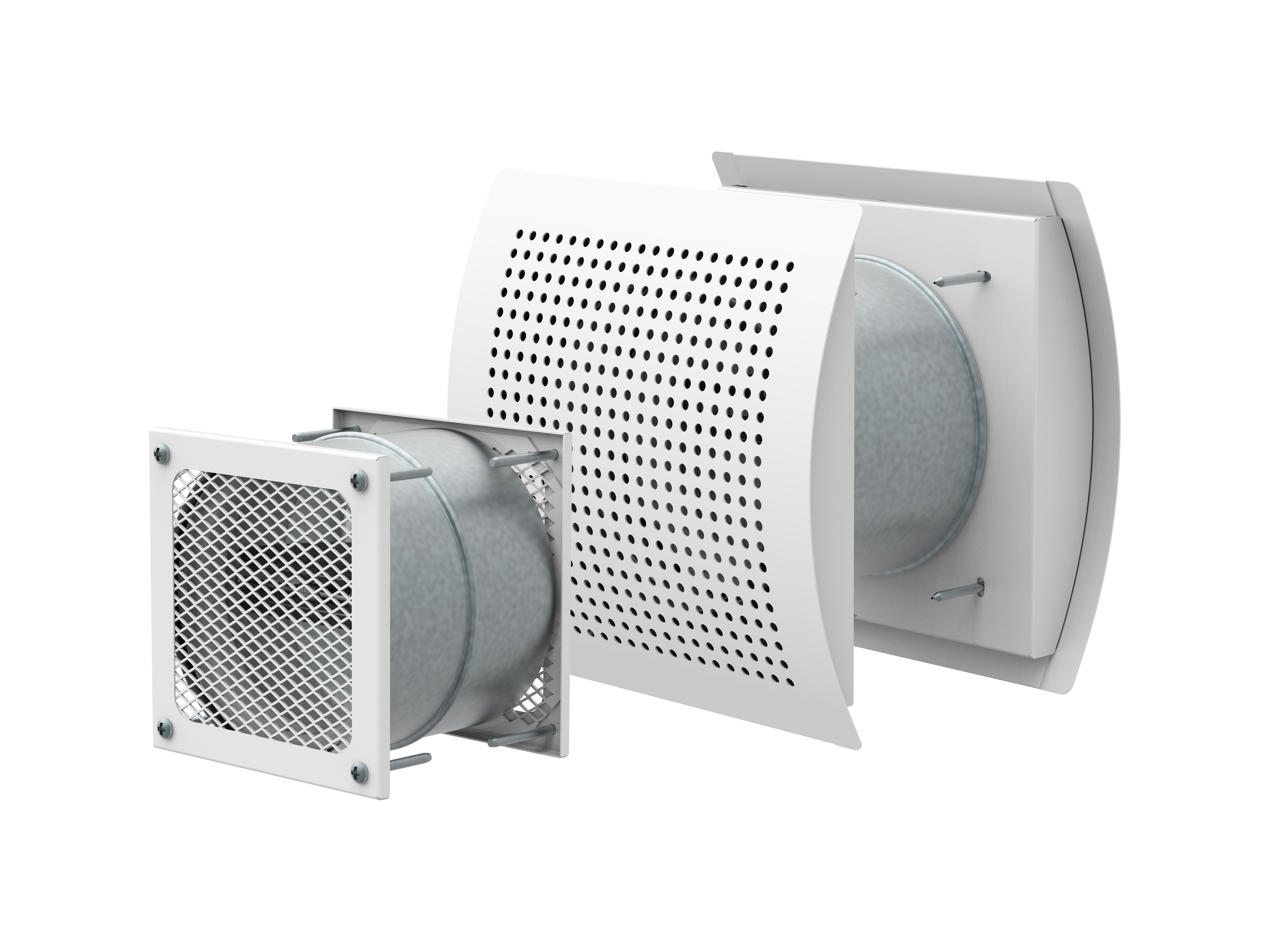

F-C2_OF,  Overflow Cartridge Fire Damper
F-C2_OF
Circular Fire Dampers · Overflow Cartridge Fire Damper
  • Performance up to 2 hours

  • One product fits several resistivities

  • Wall elements are part of the damper delivery

  • Designed for air transfer

  • Possibility to order with or without duct

  • Saving up installation space and easy to install

  • Small diameters

  • No power needed

  • Easy inspection via the air terminal device

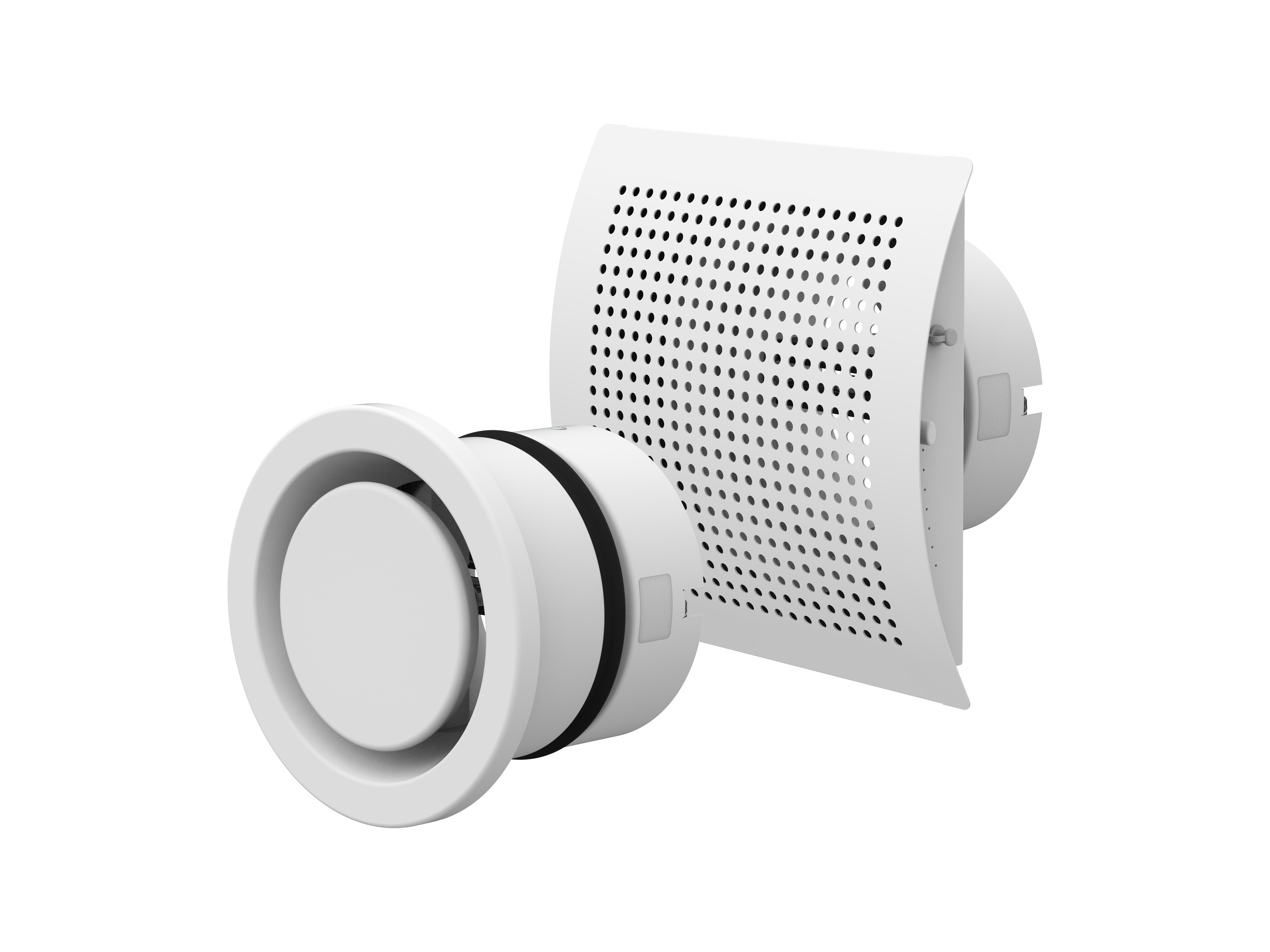

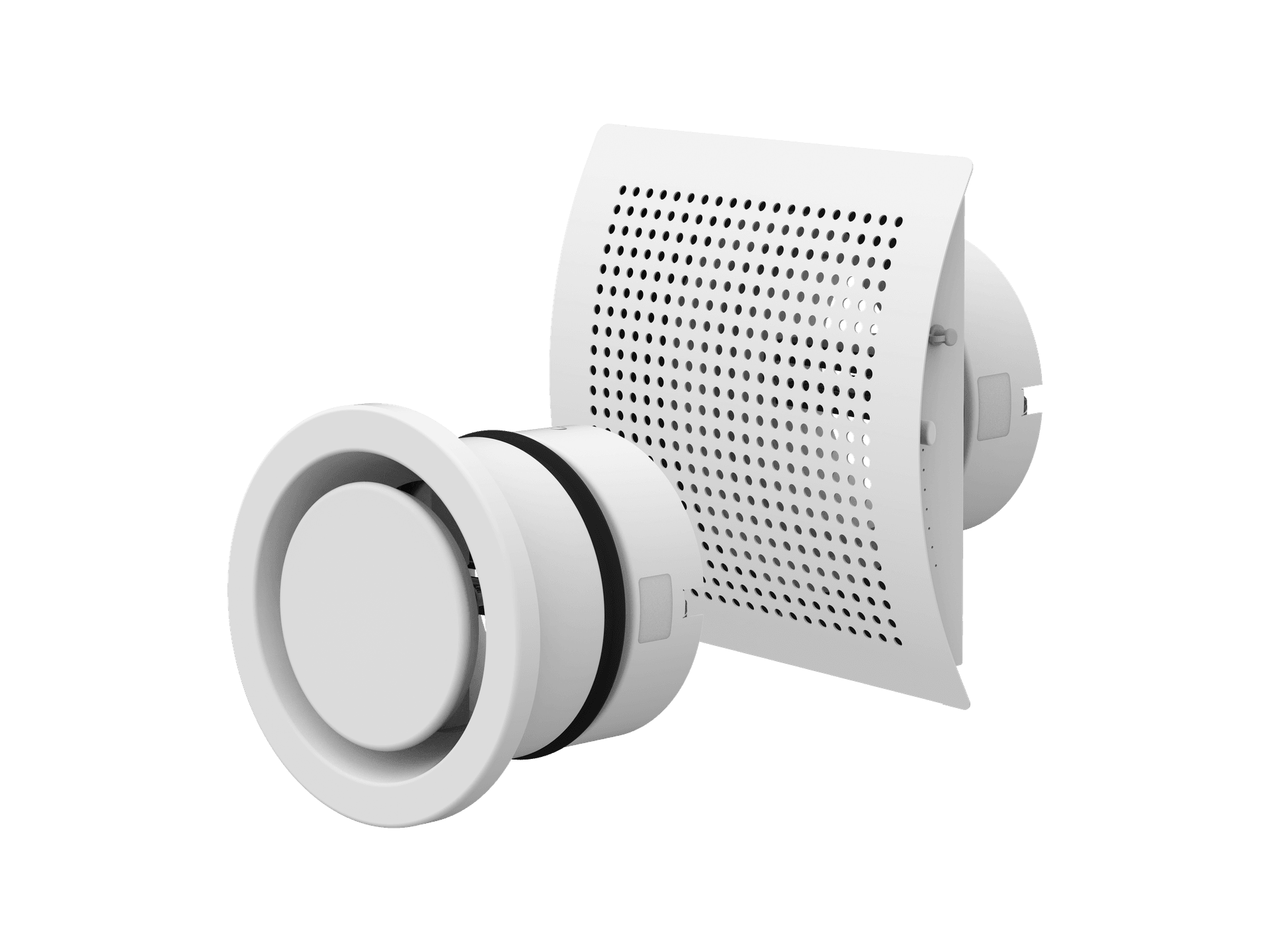

F-C2_VA, Cartridge Fire Damper within Valve
F-C2_VA
Circular Fire Dampers · Cartridge Fire Damper within Valve
  • Performance up to 2 hours

  • One product fits several resistivities

  • Valves are part of the damper delivery

  • Saving up installation space and easy to install

  • Small diameters

  • No power needed

  • Easy inspection via the air terminal device

120 minutes

Despite its inconspicuous design, F-C2 is able to provide up to 2 hours of fire resistivity.

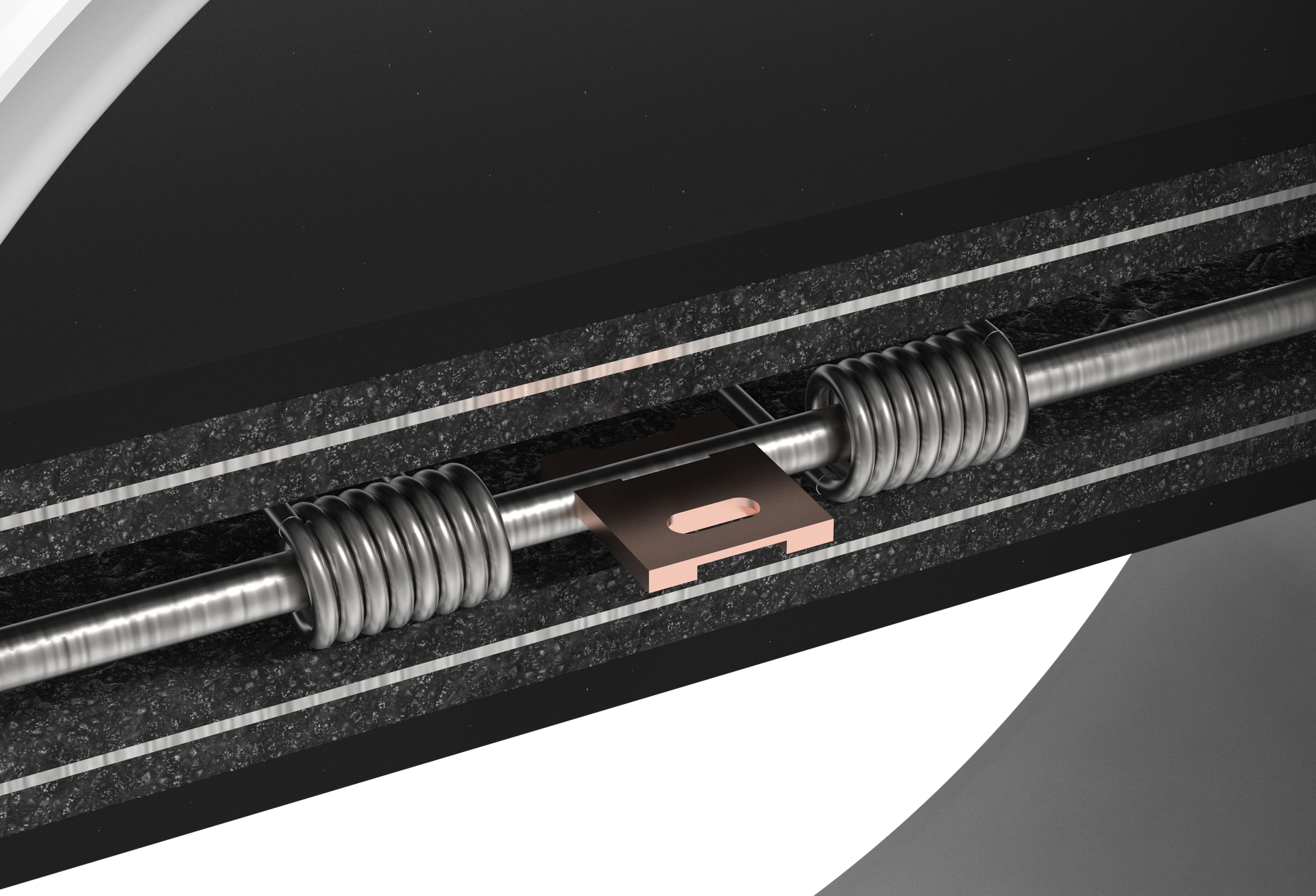

No power needed for activation

Saving up space with a fire rated air transfer solution

With F-C2...OF or F-C2...VA you get a complete combination of products, that covers all your needs - fire protection AND having a valve or a diffuser.

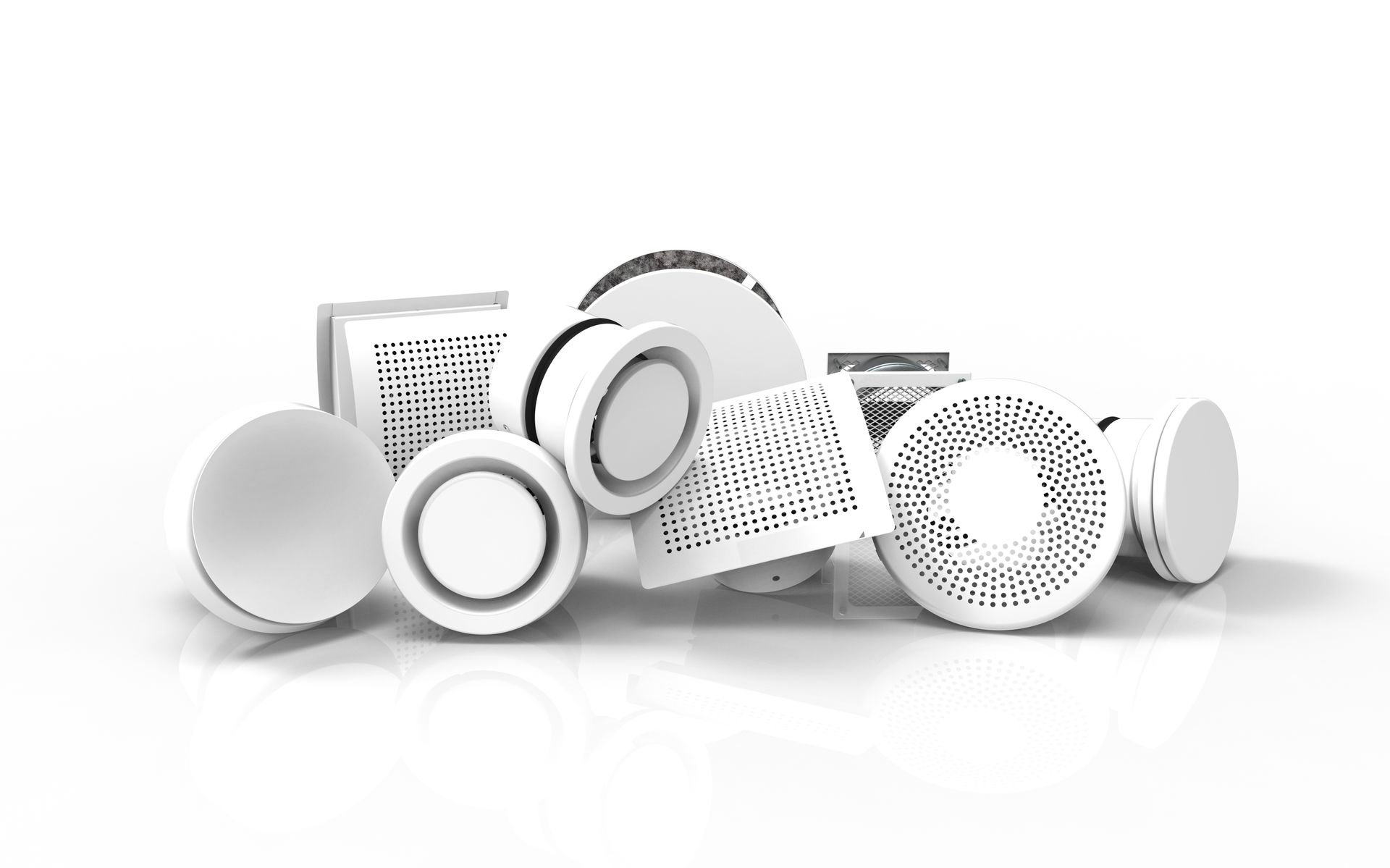

Freedom of choice

With the F-C2 subtypes you can choose
between 8 different diffuser faces:

For F-C2...OF

  • BOR-S

  • OV-R

  • KM

For F-C2...VA

  • BOR-S

  • BOR-R

  • EFF

  • TFF

  • BALANCE-E

  • BALANCE-S
