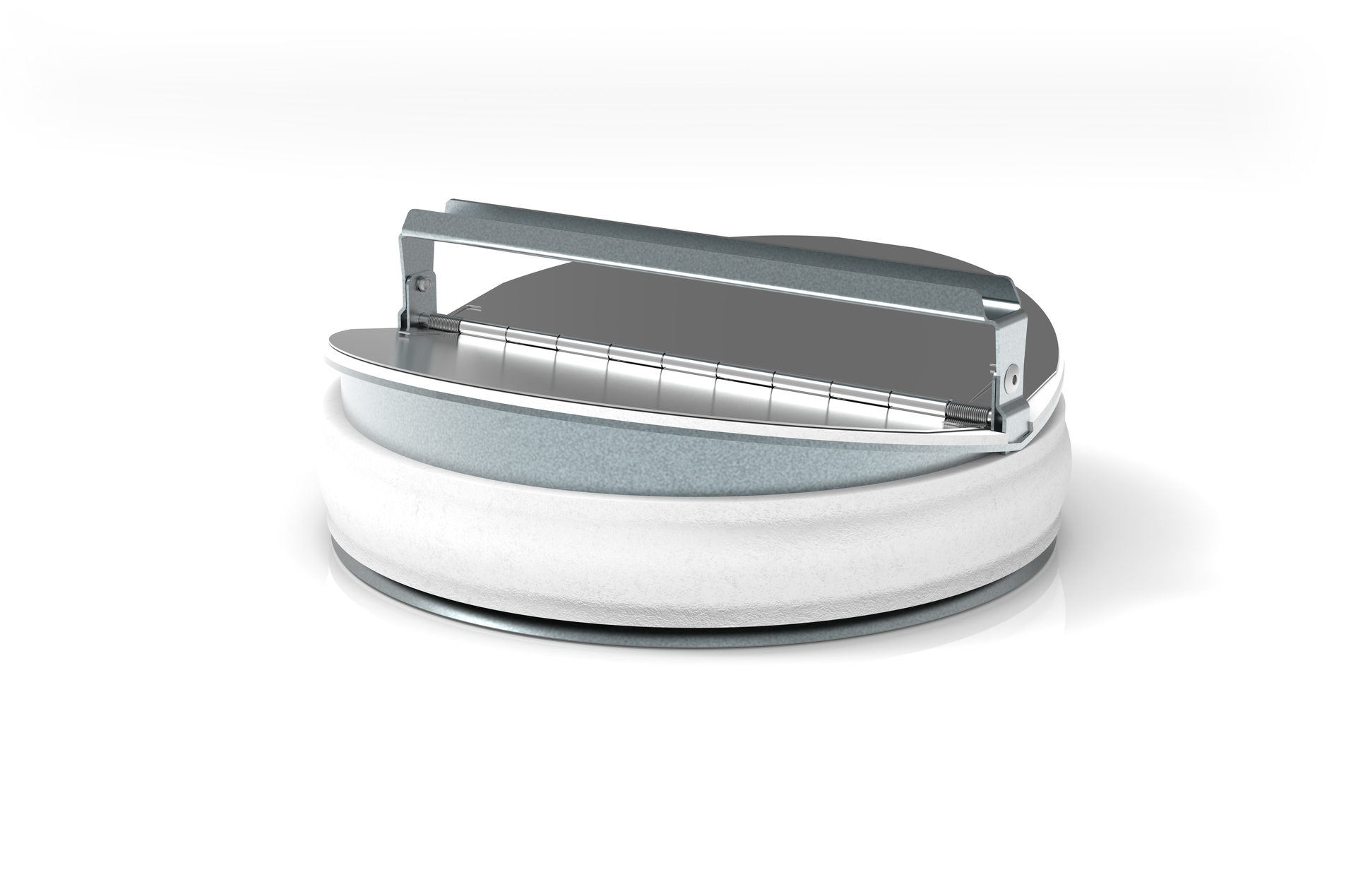

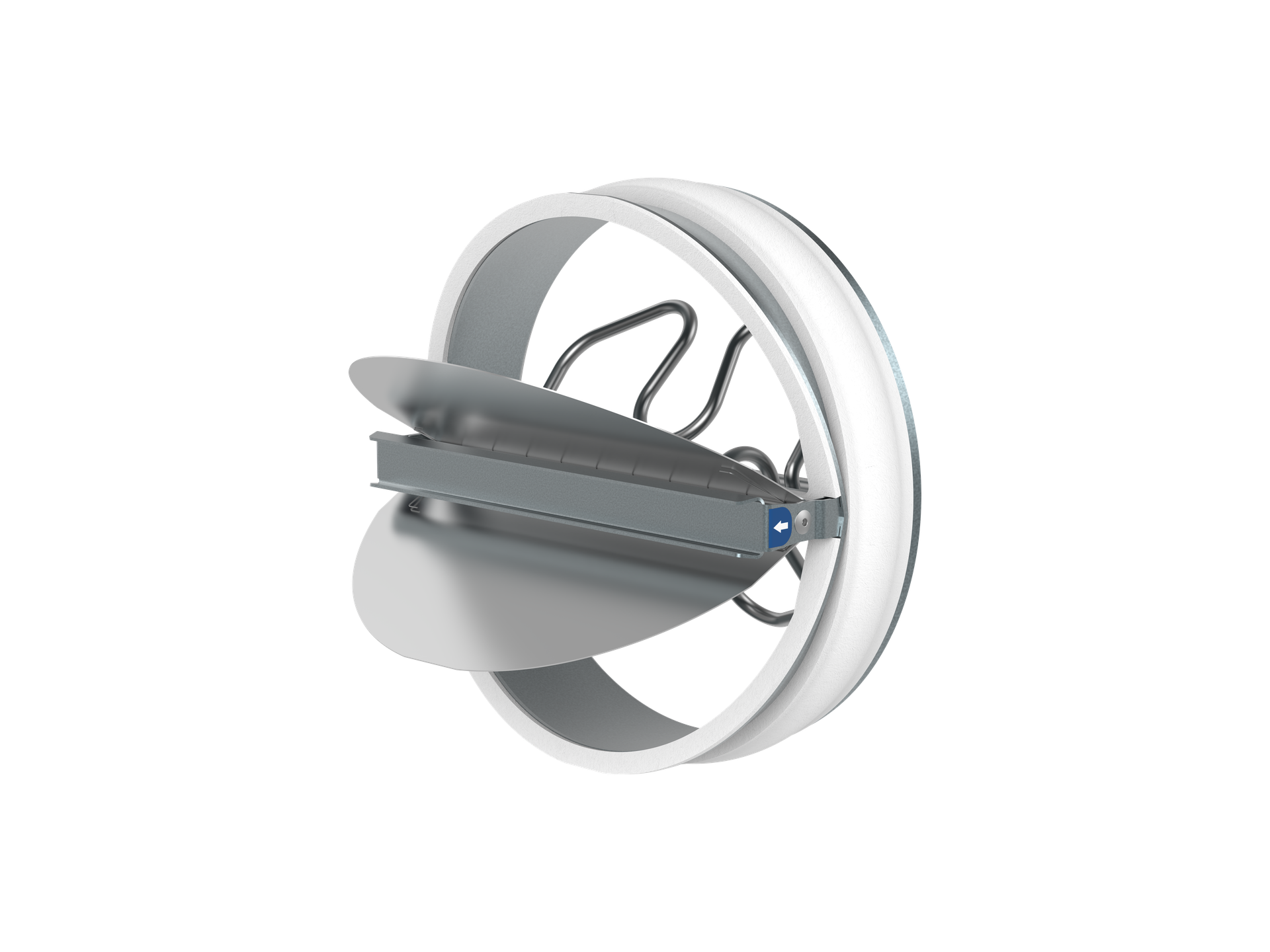

C-C120
)
)
C-C120
Backdraft Smoke Closure
Performance of E120S
Cold-smoke prevention
Versatile - Any installation position
Stable performance, no oscillation (even in the cooling phase)
Low sound power level and pressure drop
Ecological - No power needed for activation
C-C120#A-C-C120
Energy-Saving & Sustainable
There's no need to supply air during a fire scenario, so frozen supply batteries are not a risk, and the purely mechanical solution cuts costs and environmental impact.
All-Round Protection, In Every Position
Self-actuating cold smoke prevention with the performance of E120S ensures excellent performance in any installation position.
Quiet & Compliant
C-C120 has low noise and leakage and is available in various dimensions for new and existing systems, meeting relevant regulations.
Effortless Installation, Low Maintenance
Its compact design eliminates the need for straight duct lengths before or after installation, offering a reliable, sustainable, and low-maintenance solution.
Protection against smoke spread, cold or hot smoke, occurs by closing the backflow dampers in the event of a change in airflow direction and preventing air and fire gases from spreading through the ventilation system.
C-C120 is tested for ES criteria according to EN 1366–2. It closes instantly when the airflow is interrupted. It is fully self-actuated without any external input, thanks to balanced blades. This ensures reliable and economical smoke protection. It also stays closed in the event of a fire, which generates an overpressure in the affected zone.
To improve the accessibility for inspection of the backflow closure a flexible duct coupling can be used, or accessory for inspection.
Backdraft Smoke Closure
C-C120
)
All-Round Protection, In Every Position
Self-actuating cold smoke prevention with the performance of E120S ensures excellent performance in any installation position.
)
Energy-Saving & Sustainable
There's no need to supply air during a fire scenario, so frozen supply batteries are not a risk, and the purely mechanical solution cuts costs and environmental impact.
)
Quiet & Compliant
C-C120 has low noise and leakage and is available in various dimensions for new and existing systems, meeting relevant regulations.
)
Effortless Installation, Low Maintenance
Its compact design eliminates the need for straight duct lengths before or after installation, offering a reliable, sustainable, and low-maintenance solution.
No power needed!
Safety made simpleBy harnessing pure physics, the C-C120 delivers powerful, sustainable fire and smoke containment without electricity or extra energy
